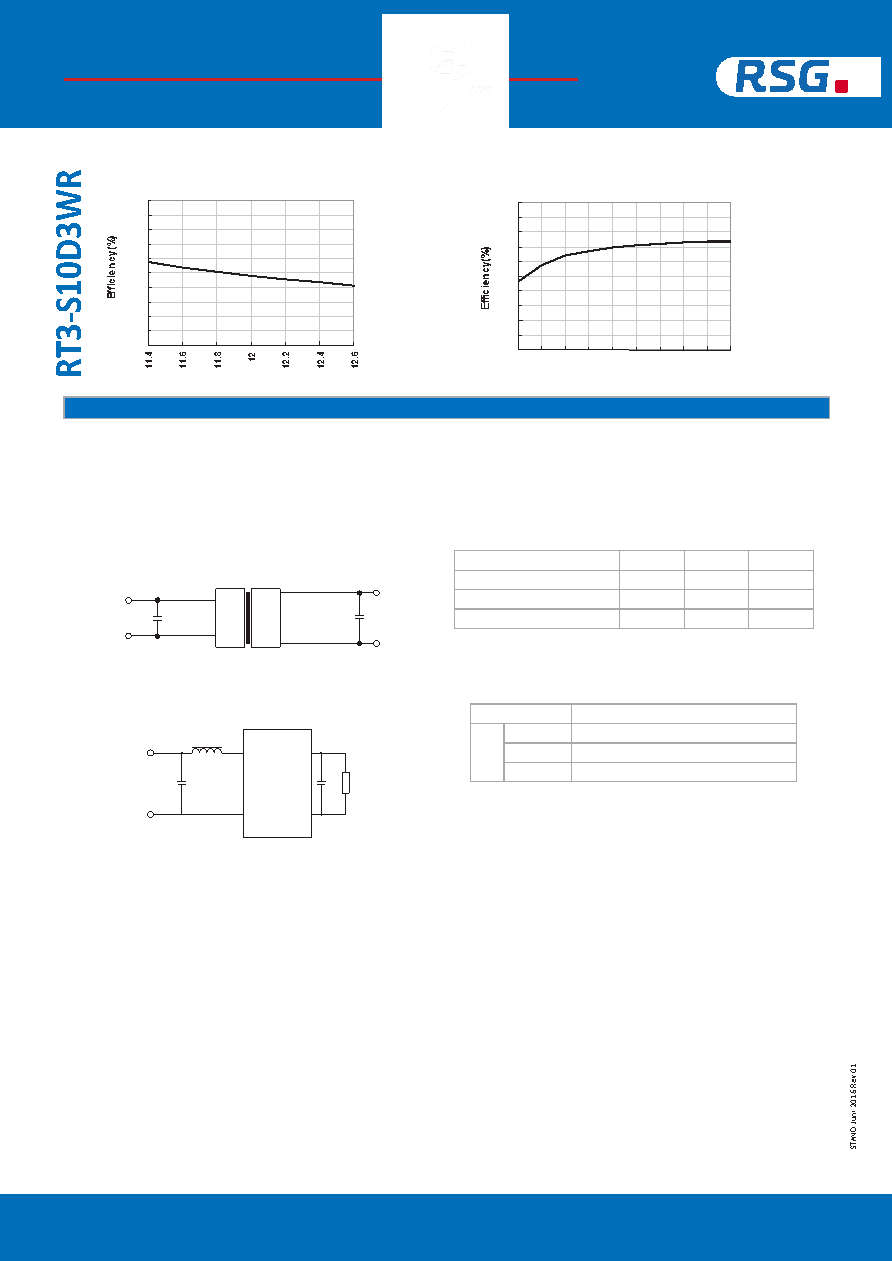

page 3 (4)

RT3-S10D3WR Series

RSG Electronic Components

IF1205XT-1WR2

50

55

60

65

70

75

80

85

90

95

100

Input Voltage(V)

Efficiency VsInput Voltage(Full Load)

IF1205XT-1WR2

0

10

20

30

40

50

60

70

80

90

100

10

20

30

40

50

60

70

80

90 100

Output Current Percentage(%)

Efficiency VsOutput Load(Vin=Vin-nominal)

Design Reference

1. Typical application

If it is required to further reduce input and output ripple, a filter capacitor can be connected to the input and output terminals, see Fig.2.

Moreover, choosing suitable filter capacitor is very important , start-up problems may be caused by too large capacitance.

To ensured the modules running well, the recommended capacitive load values as shown in Table 1.

Vin

GND

+Vo

0V

DC

Cin

DC

Cout

Fig.2

Recommended capacitive load value table (Table 1)

Vin(VDC)

Cin(µF)

Vo (VDC)

Cout(µF)

5

4.7

3.3/5

10

12

2.2

12

2.2

24

1

15

1

It is not recommended to connect any external capacitor when

output power is less than 0.5W.

2. EMC typical recommended circuit

Vin

GND

+Vo

0V

DCDC

LOAD

LDM

C1

Vin

GND

C2

Fig. 3

Input voltage (V)

5/12/24

EMI

C1

4.7µF /50V

C2

Refer to the Cout in Fig.2

LDM

6.8µH

Note: It is not needed to add the component in the peripheral circuit when

parameter with the symbol of "--"

3. Output load requirements

To ensure the module work efficiently and reliably, during the operation, the min. output load should be no less than 10% of the full load. If the

actual output power is low, please connect a resister to the output terminal in parallel, with a recommenced resistance which is 10% of the

rated power, and derating is required during operation.

4. For more information please find DC-DC converter application notes on www.rsg-electronic.de

RT3-1205S10D3WR

RT3-1205S10D3WR

DC/DC-Converter

1W, fixed input voltage

isolated & regulated single output
