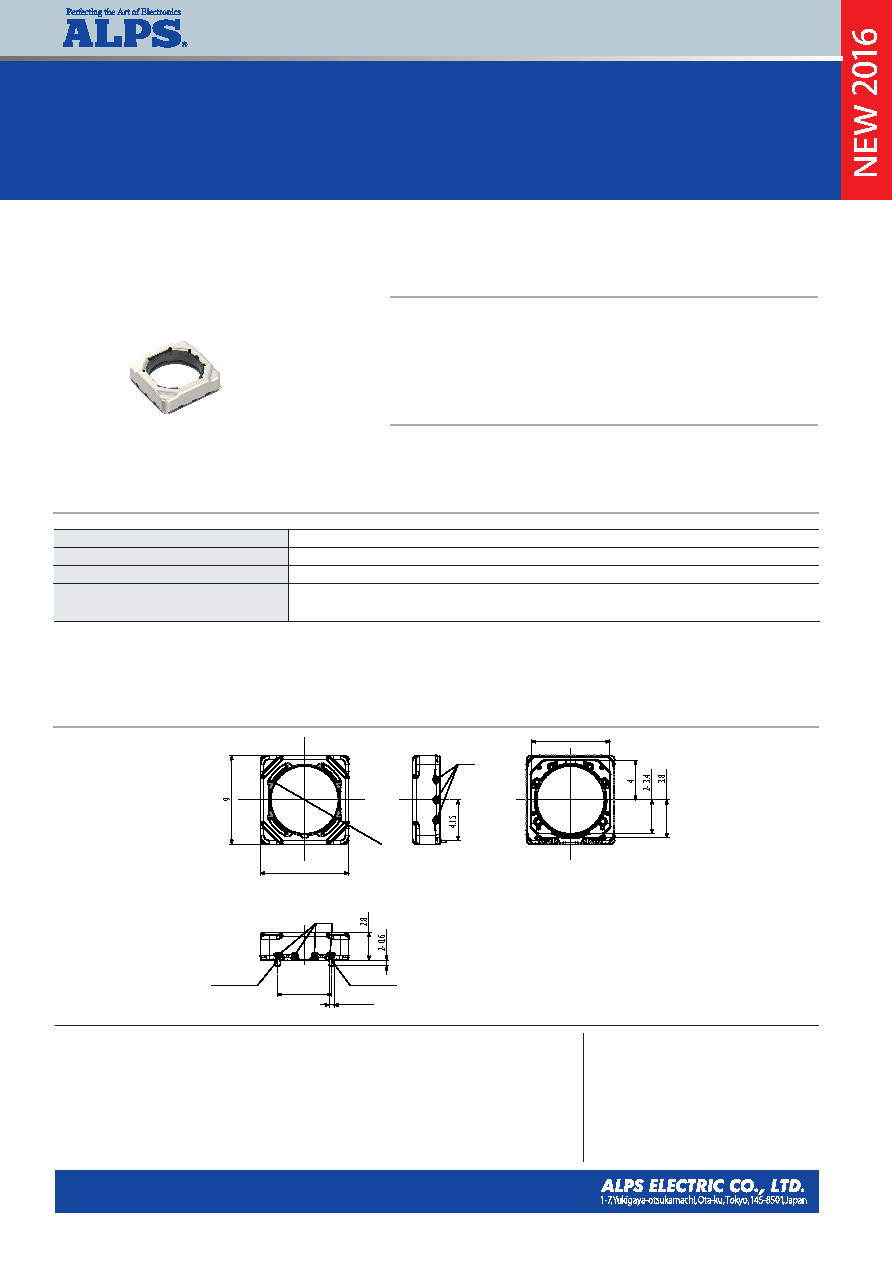

Bi-direction Type Autofocus Actuator for Cameras

ATMJ1Z95 Series

●Specifications provided in this catalog are an outline only. Please

obtain formal delivery specifications before use. ●Colors of

products shown in this catalog may differ slightly from those of the

actual products. ●Product names, company names and names of

standards appearing in this catalog are generally trademarks or

registered trademarks of their respective owners. ●Please contact

us if you have any inquiries about the products and their use. ●This

catalog is valid until December 31, 2016.

●For the export of products which are controlled items subject to foreign and domestic export laws and regulations, you must obtain approval and/or follow the

formalities of such laws and regulations. ●Products must not be used for military and/or antisocial purposes such as terrorism, and shall not be supplied to any party

intending to use the products for such purposes. ●Unless provided for otherwise, the products have been designed and manufactured for application in equipment

and devices which are sold to end users in the market, including audio-visual (AV) equipment, electrical home appliances, office machines, information and

communication equipment, and amusement equipment. The products are not intended for use in, and must not be used for, any application for nuclear equipment,

driving equipment for aerospace or any other unauthorized use. With the exception of the abovementioned prohibited applications, please contact an Alps sales

representative and/or evaluate the total system regarding applicability for applications involving high levels of safety and liability such as medical equipment, burglar

alarm equipment, disaster prevention equipment and undersea equipment. Please also incorporate fail-safe design, protection and redundant circuitry, malfunction

protection, and/or fire protection into the complete system to ensure safety and reliability of the total system. ●Before using products which were not specifically

designed for use in automotive applications, please contact an Alps sales representative.

Precautions when handling our products

Cautions for using this catalog

Inquiries about this product

■

Product Information Center ＋81 (3) 5499-8154

■

Product Information URL http://www.alps.com/products/e/

Typical Specifications

Dimensions

Features

Applications

Unit : mm

Lens weight

Stroke (when facing upward)

Dimensions（W×D×Ｈ）

16-megapixel, 2.8mm Low-Profile Actuator

with Bi-directional Drive for Low Power Consumption

9 × 9 × 2.8 mm

0.12g max.

+190μm (@+70mA)

-90μm (@-40mA)

6.9mm

Lens barrel size (diameter)

9

Ø 6.930

5.5

2- 0.5

GLUE

Terminal(+)

Terminal(-)

GLUE

8
