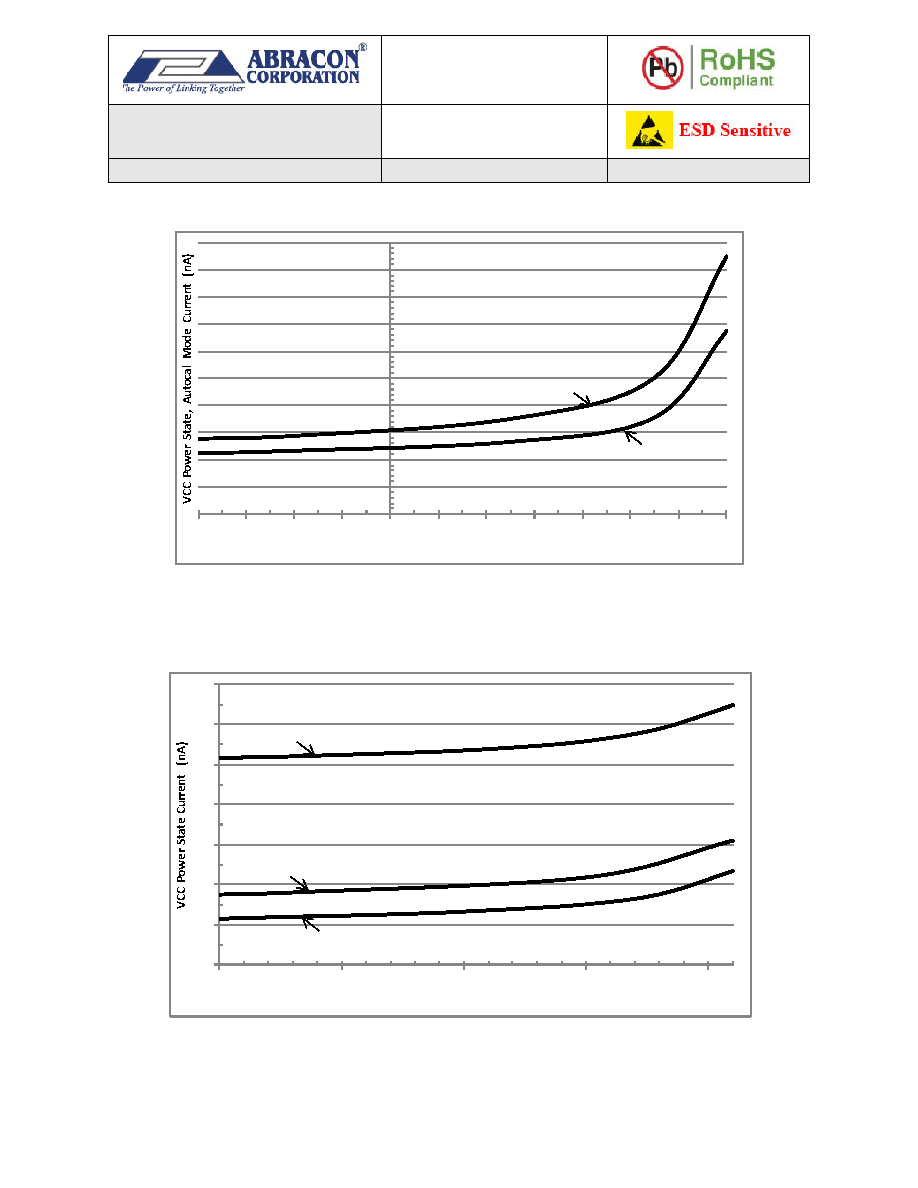

Figure 8 shows the typical VCC power state operating current vs. temperature in RC Autocalibration mode.

Figure 8. Typical VCC Current vs. Temperature in RC Autocalibration Mode

Figure 9 shows the typical VCC power state operating current vs. voltage for XT Oscillator and RC

Oscillator modes and the average current in RC Autocalibrated mode.

Figure 9. Typical VCC Current vs. Voltage, Different Modes of Operation

5

10

15

20

25

30

35

40

45

50

55

‐40

‐30

‐20

‐10

0

10

2030405060

70

Temperature  (°C)

VCC = 1.8V

VCC = 3.0V

0

10

20

30

40

50

60

70

1.52

2.53

3.5

VCC  Voltage (V)

RC Oscillator Mode

XT Oscillator Mode

RC Autocalibrated Mode
