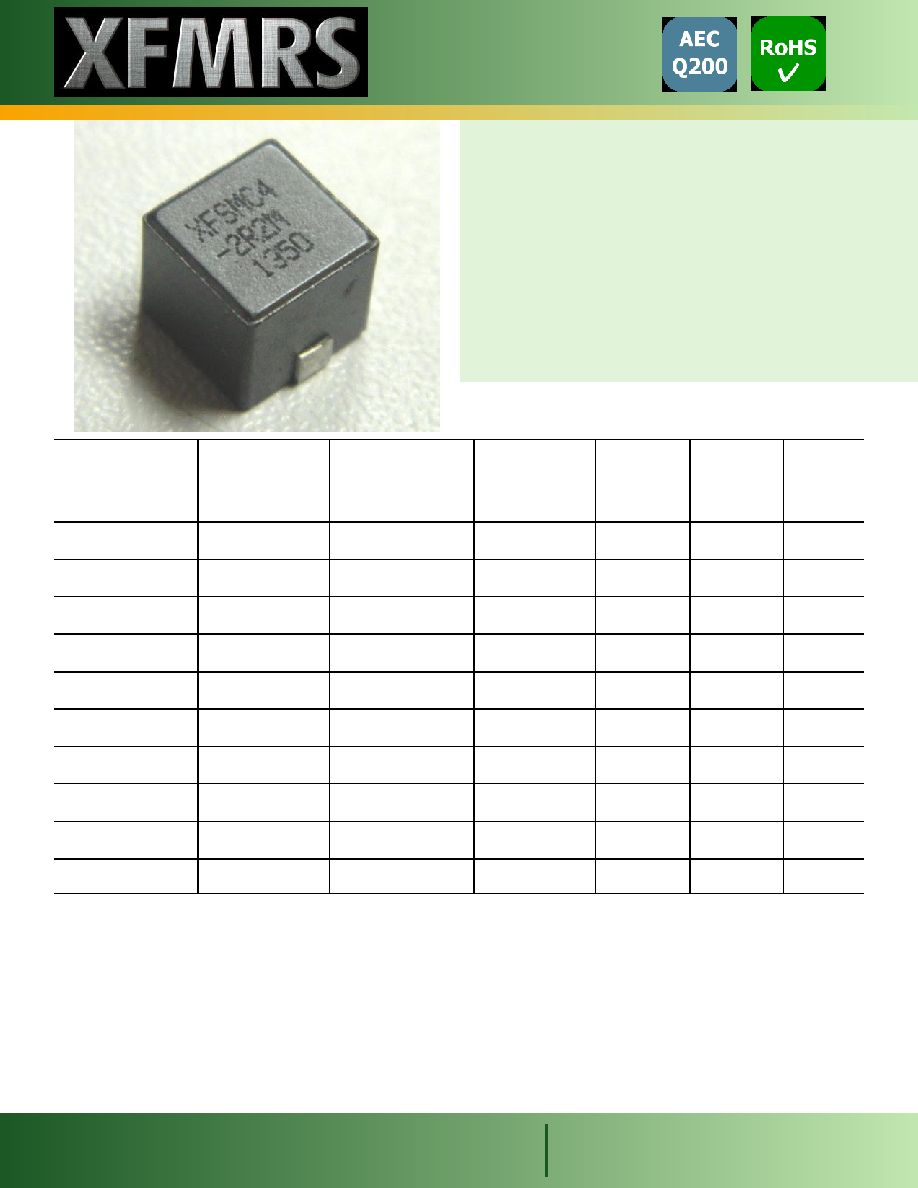

XFSMC4-xxx Series

High Current Cube Inductors



Inductance Range: 0.30uH—10.0uH



Current Ratings: 4.4A—20.5A



Surface Mount Package



Custom Values Available Upon Request

Part Number

Inductance

100KHz, 10mA

(uH) ±20%

Rated Current

(40C temp rise)

Saturation

Current (30%

drop in OCL)

DCR (mΩ)

Typ

DCR (mΩ)

Max

SRF MHz

Typ

XFSMC4-R30M

0.30

20.5A

36.0A

2.30

2.70

272

XFSMC4-R47M

0.47

19.0A

32.0A

2.65

3.10

232

XFSMC4-R68M

0.68

19.0A

23.50A

2.65

3.10

181

XFSMC4-1R0M

1.00

17.0A

24.0A

3.60

3.90

147

XFSMC4-1R5M

1.50

16.5A

18.5A

5.30

5.60

120

XFSMC4-2R2M

2.20

16.5A

12.5A

5.30

5.60

97

XFSMC4-3R3M

3.30

14.0A

8.5A

7.50

8.20

81

XFSMC4-4R7M

4.70

7.5A

8.0A

12.7

13.5

45

XFSMC4-6R8M

6.80

5.5A

7.5A

23.3

24.0

37

XFSMC4-100M

10.0

4.4A

7.0A

38.5

41.0

29

Notes:

1.

Solderability: Leads shall meet MIL-STD-2020G, Method

208H for solderability

2.

Flammability: UL94V-0

3.

ASTM oxygen index: > 28%

4.

Insulation System: Class F 155°C. UL file E151556

5.

All listed parameters are to be within tolerance from –40°C

_

to +85°C unless otherwise noted

6.

Storage Temperature Range: -55°C to +125°C

7.

Aqueous wash compatible

8.

Electrical and mechanical specifications 100% tested

9.

RoHS Compliant Component
