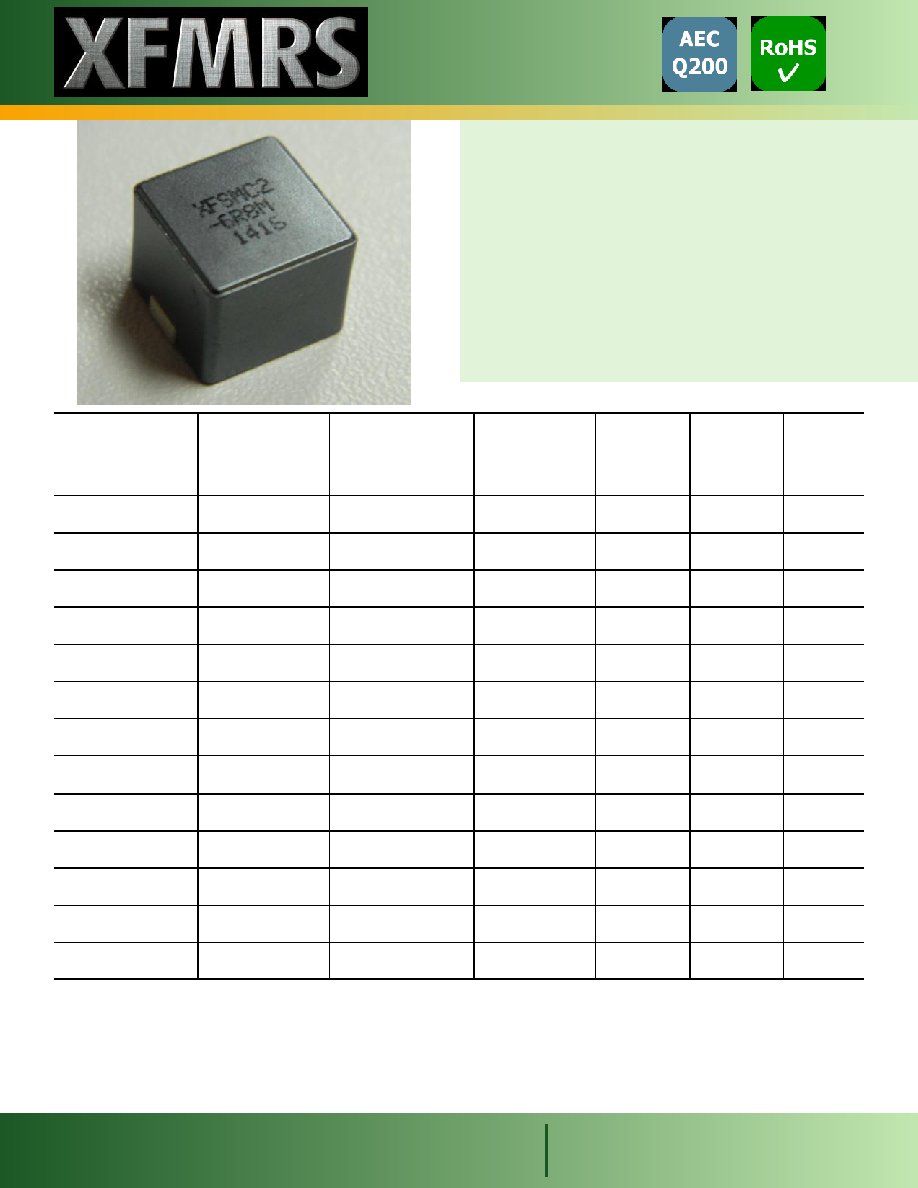

XFSMC2-xxx Series

High-Current Cube Inductors



Inductance Range: 0.22uH—10.0uH



Current Ratings: 9.0A—27.0A



Surface Mount Package



Custom Values Available Upon Request

Part Number

Inductance

100KHz, 10mA

(uH) ±20%

Rated Current

(40C temp rise)

Saturation

Current (30%

drop in OCL)

DCR (mΩ)

Typ

DCR (mΩ)

Max

SRF MHz

Typ

XFSMC2-R22M

0.22

27.0A

60.0A

1.10

1.50

280

XFSMC2-R33M

0.33

27.0A

55.0A

1.10

1.50

214

XFSMC2-R47M

0.47

26.0A

48.0A

1.35

1.85

138

XFSMC2-R68M

0.68

26.0A

38.0A

1.35

1.85

108

XFSMC2-R82M

0.82

24.0A

36.0A

1.85

2.50

99

XFSMC2-1R0M

1.00

24.0A

32.0A

1.85

2.50

96

XFSMC2-1R5M

1.50

19.5A

27.0A

2.95

3.50

92

XFSMC2-2R2M

2.20

18.0A

23.0A

3.90

4.30

64

XFSMC2-3R3M

3.30

17.0A

17.0A

5.20

5.70

44

XFSMC2-4R7M

4.70

15.5A

17.0A

7.25

7.90

43

XFSMC2-6R8M

6.80

13.0A

13.0A

10.15

11.0

42

XFSMC2-8R2M

8.20

13.0

12.0

10.60

11.8

34

XFSMC2-100M

10.0

9.0A

10.0A

15.35

16.7

29

Notes:

1.

Solderability: Leads shall meet MIL-STD-2020G, Method

208H for solderability

2.

Flammability: UL94V-0

3.

ASTM oxygen index: > 28%

4.

Insulation System: Class F 155°C. UL file E151556

5.

All listed parameters are to be within tolerance from –40°C

_

to +85°C unless otherwise noted

6.

Storage Temperature Range: -55°C to +125°C

7.

Aqueous wash compatible

8.

Electrical and mechanical specifications 100% tested

9.

RoHS Compliant Component
