1 / 23 page

May 2003

1/23

®

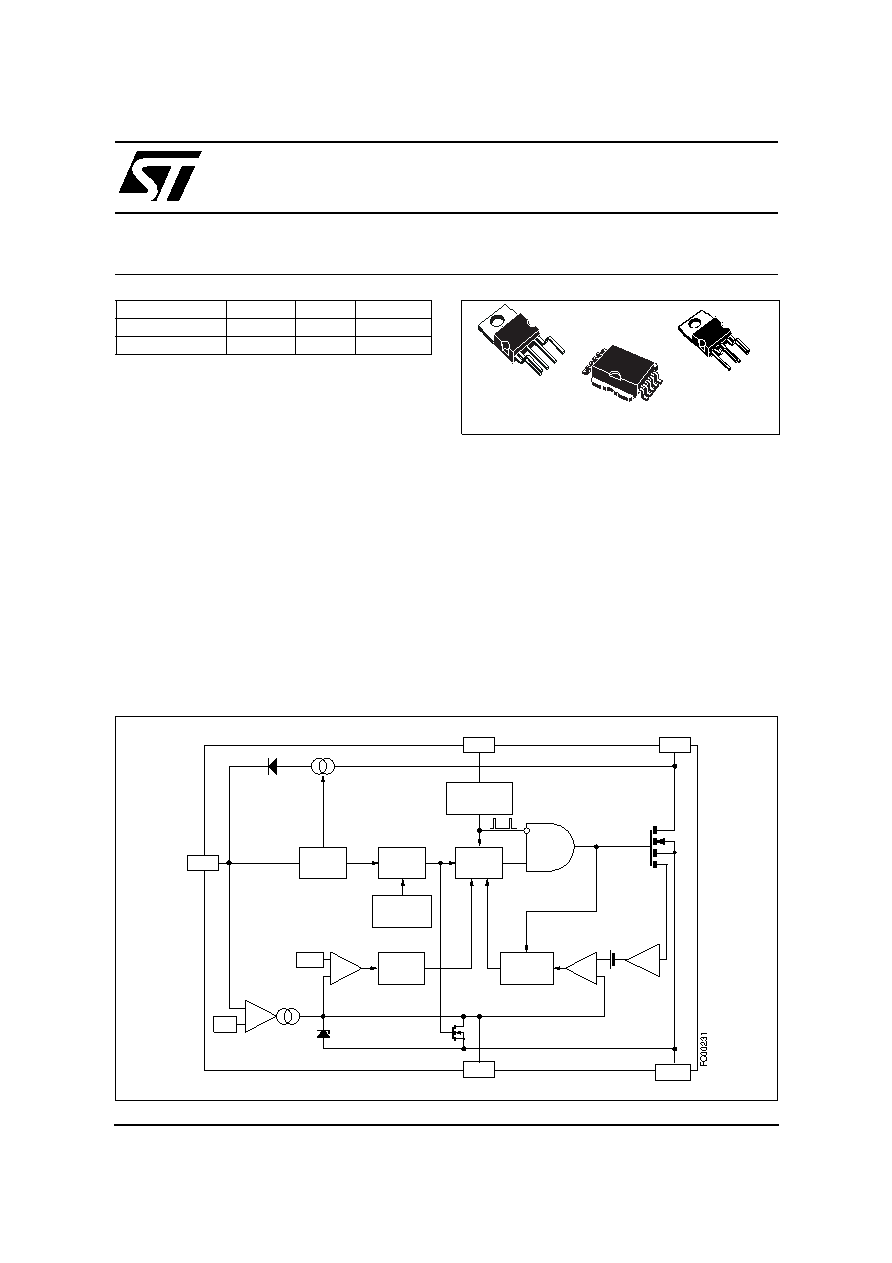

VIPer100/SP

- VIPer100A/ASP

SMPS PRIMARY I.C.

1

s

ADJUSTABLE SWITCHING FREQUENCY UP

TO 200 kHz

s

CURRENT MODE CONTROL

s

SOFT START AND SHUT DOWN CONTROL

s

AUTOMATIC BURST MODE OPERATION IN

STAND-BY CONDITION ABLE TO MEET

“BLUE ANGEL” NORM (<1w TOTAL POWER

CONSUMPTION)

s

INTERNALLY TRIMMED ZENER REFERENCE

s

UNDERVOLTAGE LOCK-OUT WITH

HYSTERESIS

s

INTEGRATED START-UP SUPPLY

s

AVALANCHE RUGGED

s

OVERTEMPERATURE PROTECTION

s

LOW STAND-BY CURRENT

s

ADJUSTABLE CURRENT LIMITATION

DESCRIPTION

VIPer100™/100A,

made

using

VIPower

M0

Technology, combines on the same silicon chip a

state-of-the-art PWM circuit together with an

optimized high voltage avalanche rugged Vertical

Power MOSFET (620V or 700V / 3A).

Typical applications cover off line power supplies

with a secondary power capability of 50 W in wide

range condition and 100W in single range or with

doubler configuration. It is compatible from both

primary or secondary regulation loop despite

using

around

50%

less components

when

compared with a discrete solution. Burst mode

operation is an additional feature of this device,

offering the possibility to operate in stand-by

mode without extra components.

TYPE

VDSS

In

RDS(on)

VIPer100/SP

620V

3 A

2.5

Ω

VIPer100A/ASP

700V

3 A

2.8

Ω

BLOCK DIAGRAM

PENTAWATT HV

1

10

PowerSO-10™

(022Y)

VDD

OSC

COMP

DRAIN

SOURCE

13 V

UVLO

LOGIC

SECURITY

LATCH

PWM

LATCH

FF

R/S

S

Q

S

R1

R2 R3

Q

OSCILLATOR

OVERTEMP.

DETECTOR

ERROR

AMPLIFIER

_

+

0.5 V

+

_

1.7

µ s

DELAY

250 ns

BLANKING

CURRENT

AMPLIFIER

ON/OFF

0.5V

1 V/A

_

+

_

4.5 V
