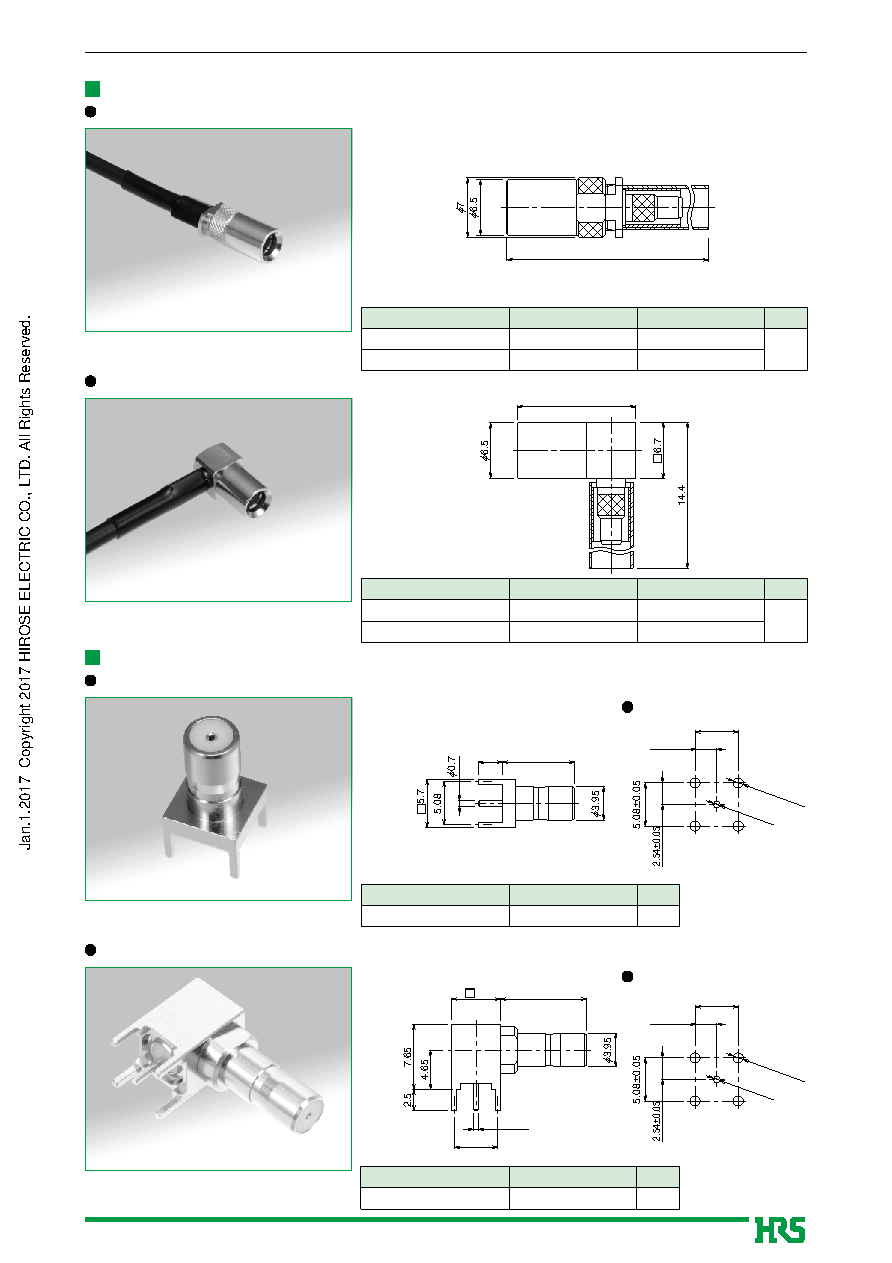

PL71 Series

●Push-on Lock Coaxial Connectors for Digital Broadcasting Applications

Plugs

Straight

20.7

Right angle

Receptacles

Straight

PCB mounting pattern

2.9

8.5

Ø0.8

+0.1

2.54±0.05

5.08±0.05

4∞Ø1.2±0.1

PCB mounting pattern

Ø0.8

+0.1

2.54±0.05

5.08±0.05

4∞Ø1.2±0.1

Right angle

10.2

5.08

Ø0.7

5.7

All dimensions:mm

Part No.

HRS No.

Applicable cable

RoHS

PL71-P-1.5CW(40)

334-0001-5 40

1.5C-QEW.CW

Yes

PL71-P-1.5CV-1(40)

334-0069-9 40

1.5C-QEV.CW

All dimensions:mm

Part No.

HRS No.

Applicable cable

RoHS

PL71-LP-1.5CW(40)

334-0006-9 40

1.5C-QEW.CW

Yes

PL71-LP-1.5C(40)

334-0007-1 40

1.5C-QEV.CW

All dimensions:mm

Part No.

HRS No.

RoHS

PL71-R-PC(40)

334-0011-9 40

Yes

All dimensions:mm

Part No.

HRS No.

RoHS

PL71-LR-PC(40)

334-0016-2 40

Yes
