SCHRACK

General Purpose Relays

PCB Relays

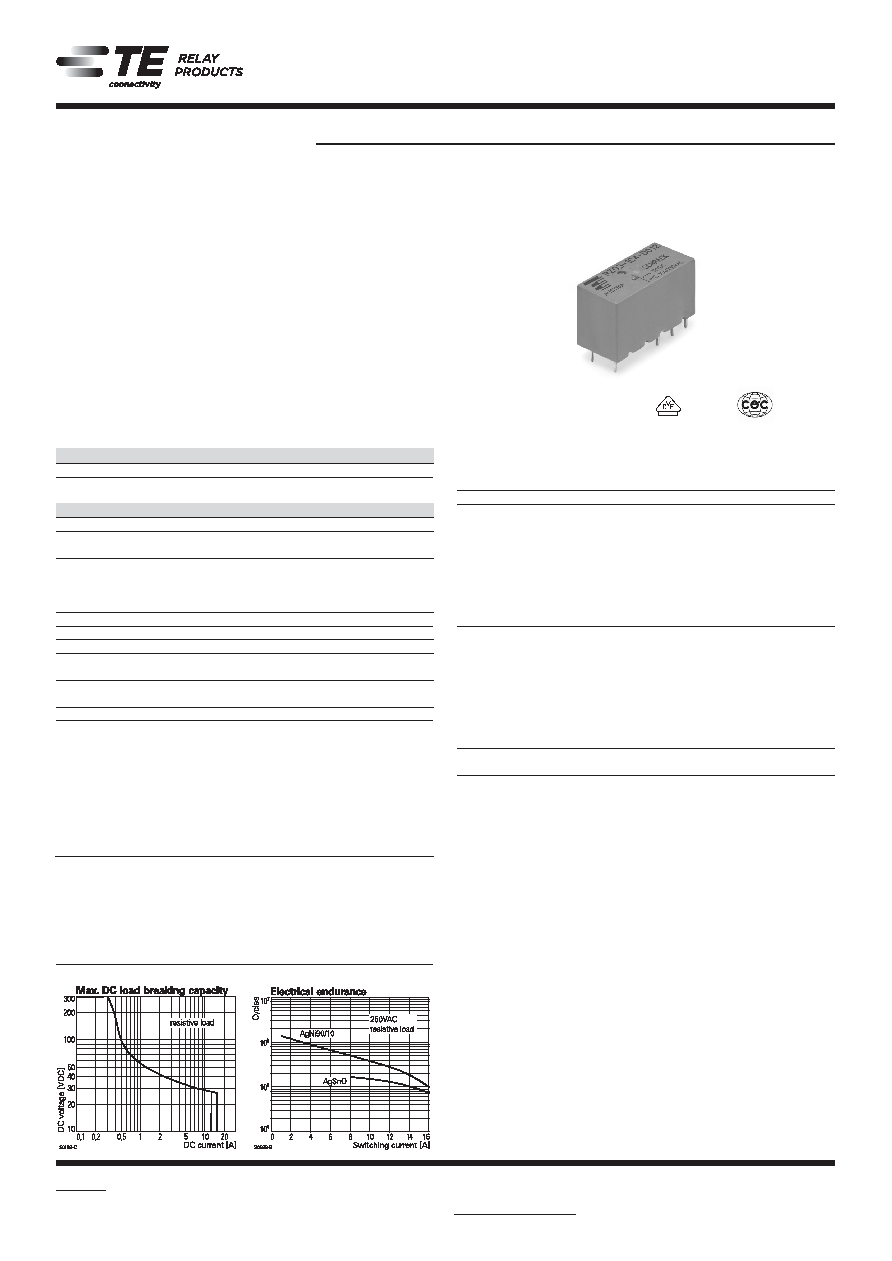

Power PCB Relay RZ

Contact ratings for RZ reinforced flux proof version

Type

Contact

Load

Cycles

IEC 61810

RZ03-1C3-D...-R

A (NO)

16A, 250VAC, 85°C

RZ03-1C3-D...-R

C (CO)

16A, 250VAC, 85°C

RZ01-1C3-D...-R

A (NO)

12A, 250VAC, 85°C

RZ01-1C3-D...-R

C (CO)

12A, 250VAC, 85°C

RZ03-1C4-D...-R

A (NO)

16A, 250VAC, 85°C

RZ03-1C4-D...-R

C (CO)

16A, 250VAC, 85°C

RZ02/3-1C4-D...-R

A (NO)

12A, 250VAC, 85°C

RZ02/3-1C4-D...-R

C (CO)

12A, 250VAC, 85°C

UL 508

RZ03-1C3-D...-R

A (NO)

16A, 277VAC, 85°C

RZ03-1C3-D...-R

C (CO)

16A, 277VAC, 85°C

RZ01-1C3-D...-R

A (NO)

12A, 277VAC, 85°C

RZ01-1C3-D...-R

C (CO)

12A, 277VAC, 85°C

RZ03-1C4-D...-R

A (NO)

16A, 277VAC, 85°C

RZ03-1C4-D...-R

C (CO)

16A, 277VAC, 85°C

RZ02/3-1C4-D...-R

A (NO)

12A, 277VAC, 85°C

RZ02/3-1C4-D...-R

C (CO)

12A, 277VAC, 85°C

Mechanical endurance

n

1 pole 12/16 A, 1 form C (CO) or 1 form A (NO) contact

n

DC coil 400 mW

n

5kV/10mm coil-contact, reinforced insulation

n

Ambient temperature 85°C

n

Product in accordance to IEC 60335-1

Typical applications

Household appliances, boiler control, timers, garage door control, POS

automation

Approvals

VDE Cert. No. 40023970, UL E214025, CQC 12002066685

Technical data of approved types on request

Contact Data

12A

16A

Contact arrangement

1 form C (CO) or 1 form A (NO)

Rated voltage

250VAC

Max. switching voltage

400VAC

Rated current

12A

16A

Limiting making current (form A contact)

max. 4s, duty factor 10%

30A

80A

Breaking capacity max.

3000VA

4000VA

Contact material

Frequency of operation, with/without load

Operate/release time max.

8/6ms

Bounce time max., form A/form B

4/10ms

Contact ratings for standard version

Type

Contact

Load

Cycles

IEC 61810

RZ03-1A4

A (NO)

16A, 250VAC, 85°C

RZ03-1C4

C (CO)

16A, 250VAC, 85°C

RZ01-1A3

A (NO)

12A, 250VAC, 85°C

RZ01-1A4

A (NO)

12A, 250VAC, 85°C

RZ01-1C4

C (CO)

12A, 250VAC, 85°C

RZ01/3-1A4

A (NO)

10A, 250VAC, 85°C

RZ0H-1A4

A (NO)

12A, 250VAC, 85°C

RZ0H-1A4

A (NO)

16A, 250VAC, 85°C

RZ0H-1A4

A (NO)

18A, 250VAC, 85°C

UL 508

RZ03-1A.

A (NO)

16A, 250VAC, 85°C

RZ03-1A4

A (NO)

12A, 250VAC, 85°C

RZ01-1A3

A (NO)

12A, 250VAC, 85°C

RZ03-1.4

A (NO)

B300, R300, 85°C

RZ03-1.4

A (NO)

12A, 250VAC, 85°C

RZ03-1.4

A (NO)

1/2hp, 125VAC, 85°C

RZ03-1A.

A (NO)

1hp, 277VAC, 85°C

F0305-A

Z

1) valid for standard version

1)
