SP2T PIN Diode Switch

Rev. V1

MSW200x-200

5

5

M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.

Visit www.macom.com for additional data sheets and product information.

For further information and support please visit:

https://www.macom.com/support

DS-xxxxxxx

5

Part #

20 MHz

100 MHz

200 MHz

400 MHz

1 GHz

4 GHz

MSW2000-200

120 V

110 V

85 V

55 V

28 V

N/A

MSW2001-200

N/A

N/A

110 V

85 V

55 V

28 V

MSW2002-200 (F = 1 GHz) 55 V (F = 2 GHz) 28 V (F = 3 GHz) 28 V (F = 4 GHz) 28 V (F = 5 GHz) 28 V (F = 6 GHz) 28 V

3. N/A denotes the switch is not recommended for that frequency band.

Where:

= lowest RF signal frequency expressed in MHz

D

= duty factor of the RF signal

R. Caverly and G. Hiller, ―Establishing the Minimum Reverse Bias for a PIN Diode in a High Power Switch, IEEE

Transactions on Microwave Theory and Techniques, Vol.38, No.12, December 1990

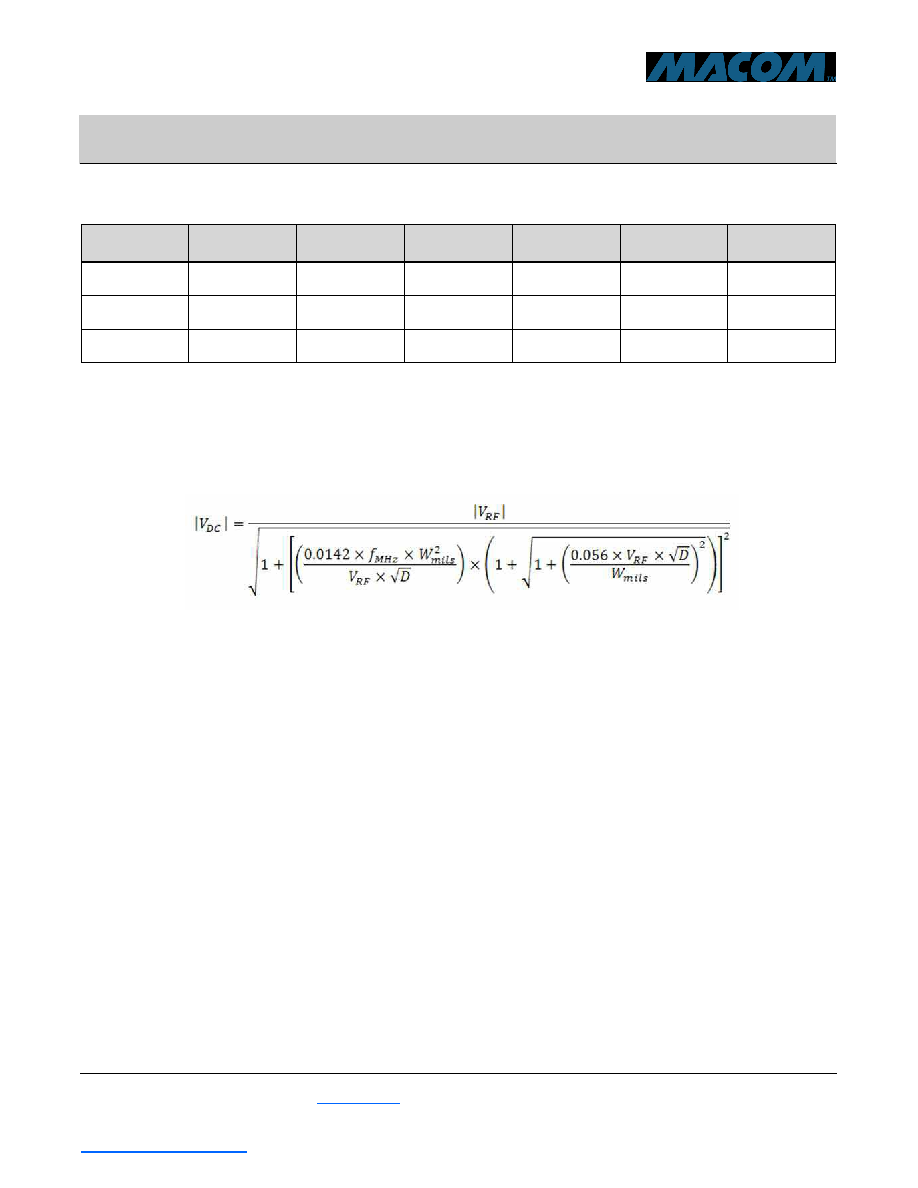

The minimum reverse bias voltage required to maintain a PIN diode out of conduction in the presence of a large

RF signal is given by:
