Wire Wound Inductor - Ceramic Or Ferrite Base

||||||||| | | | | | |

AISC-1008(F)

2.92 x 2.79 x 2.29m m

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

ISO 9001 :2008

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California92688

Visit www.abracon.com for Terms & Conditions of Sale

Revised: 09.17.13

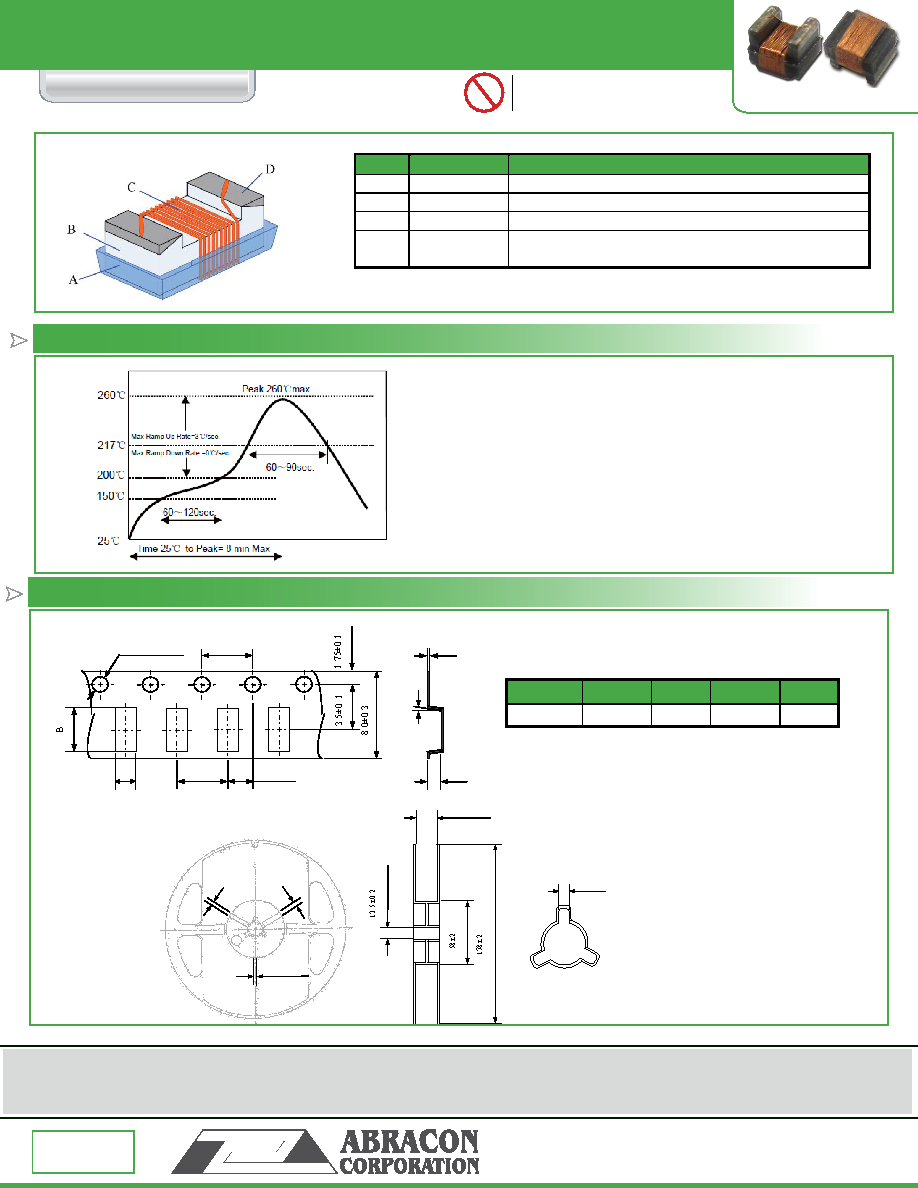

Materials

No.

Components

Material

A

Coating

Ultraviolet epoxy resin

B

Core

Ceramic

C

Wire

Polyurethane system enameled copper wire

D

Electrodes

AISC-1008: Mo-Mn with Ni and Au plating

AISC-1008F: Ag-Pd with Ni-Sn plating

Solder paste: Sn/3.0Ag/0.5Cu

Max.2 times for Re-flowing

REFLOW PROFILE:

A

P

B

K Max

T

2.73±0.2

4.0±0.1

2.90±0.2

2.34±0.2

0.23±0.1

4.0±0.1

Φ1.5(+0.1/ -0)

P

2.0±0.1

A

T

K

5.0 ±0.1

3.0 ±0.1

4.0±0.1

10±1.5

2.45 ±0.2

TAPE & REEL:

tive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requir-

ing high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme

operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.

∆

∆

∆

∆

∆

∆

2kpcs /Reel
