Feature

Application

Remote control systems

Security systems

Alarms

Telemetry systems

European EN300-220 compliance

32 frequency synthesized RF channels

5mW/10mW selectable

Low voltage operation

High sensitivity 300m range

FM narrow band modulation and

high frequency stability

Common

Item

Communication form

Oscillation system

Frequency range

Number of RF channels

Channel step

Frequency stability

Baud rate

Operating temp. range

Transmitter type

RF output power

Transmitter start up time

Modulation

Data input level

Input signal

Deviation

Spurious emission

Adjacent channel power

Supply voltage

Supply current

Dimensions

Weight

Receiver type

Sensitivity

Selectivity

Demodulation

Distortion

S/N ratio

Data output

Supply Voltage

Supply current

Dimensions

Weight

Specification

One way

PLL controlled VCO

433.875MHz to 434.650MHz

32 ch

25kHz

+/-2.5kHz (-10 to +55 degree C)

300 to 4800bps

-10 - +60 degree C

PLL synthesizer

10mW/5mW

80msec

FM Narrow

2.2 - 12V

Digital

2.0kHz

<-60dBm (< 862MHz) , <-46dBm (

<200nW

2.4 - 12V DC

30mA (typ)

36 X 26 X 10 mm

12.5g

Double Superheterodyne PLL synthesizer

-120dBm (12dB/SINAD at CCITT filter)

+/-7.5kHz at -6dB point

FM Narrow

<3% at 1kHz

35dB overall (AF out)

Digital

3.6 to 12V DC

26mA (typ)

50 X 30 X 9mm

19g

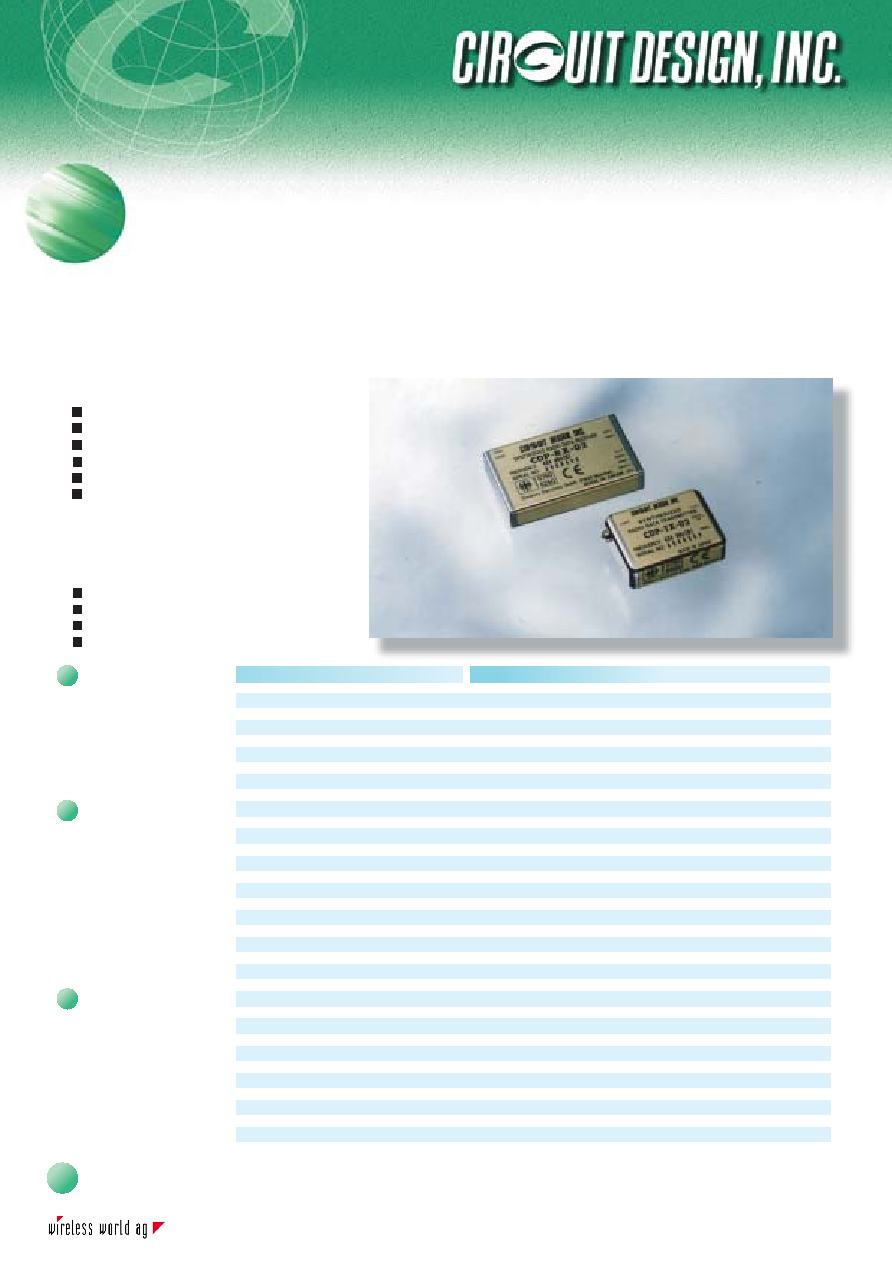

UHF Narrow Band Multi Channel Transmitter/Receiver

CDP-TX-02N/ CDP-RX-02N

The unique and compact CDP-02N is a frequency selectable radio data module for 434MHz UHF band. Both

CDP-TX-02N (transmitter) and CDP-RX-02N (receiver) are equipped by frequency synthesizer system with

microprocessor. Frequency range of CDP-02N is from 433.875MHz to 434.650MHz in 32 channels which are

selectable by the use of an onboard 4 bits switch.

Small size, low voltage operation and frequency selectability of CDP-02N make it ideal for various applications in

sites where many radio transmitters are operated.

CDP-TX-02N

(Transmitter)

CDP-RX-02N

(Receiver)

Specifications are subject to change without prior notice
