AD8290
Rev. B | Page 10 of 20
DRIFT (ppm/°C)
0
5
10
15
20
25
30
35
40
45
5
203550658095
110
125

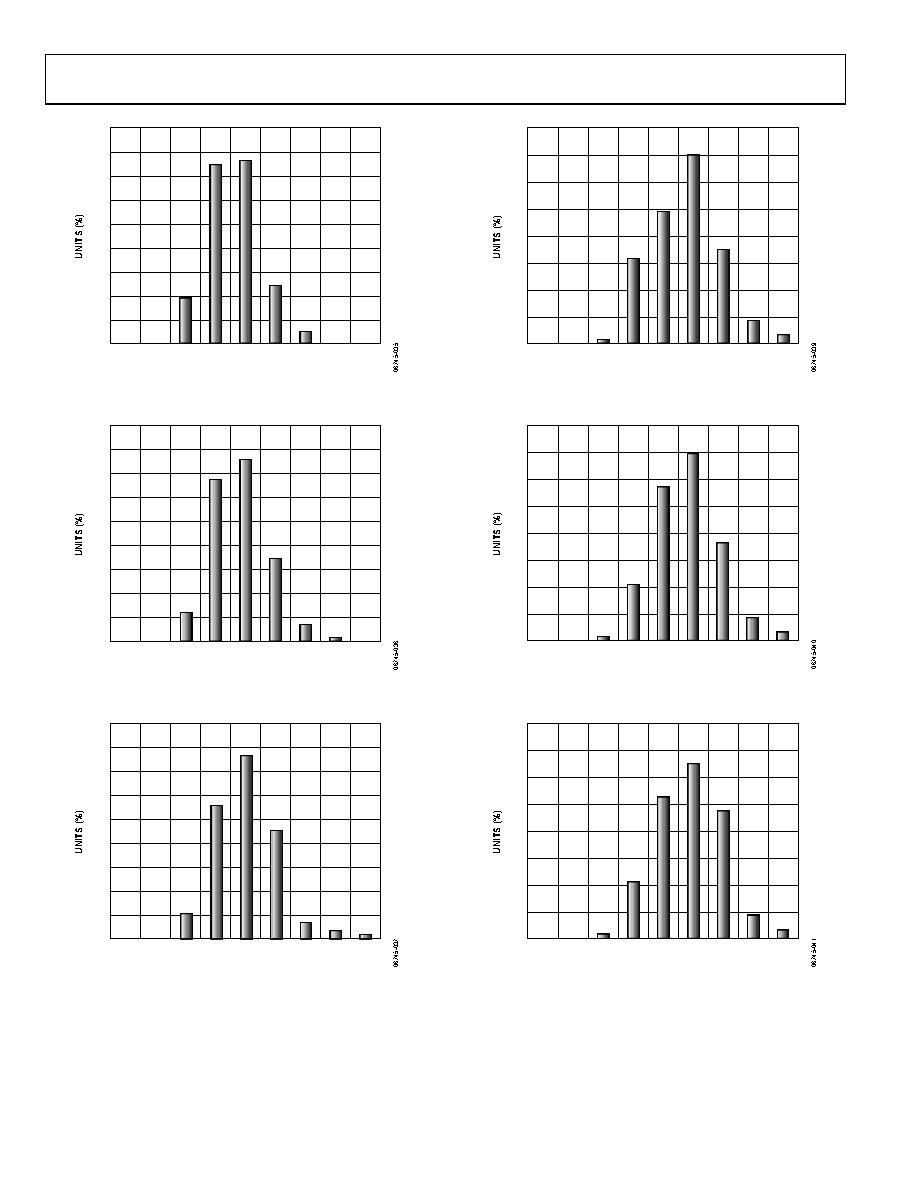

Figure 21. Excitation Current Drift from −40°C to +85°C at
2.6 V Supply, RSET = 3 kΩ
DRIFT (ppm/°C)
0
5
10
15
20
25
30
35
40
45
5
203550658095
110
125
Figure 22. Excitation Current Drift from −40°C to +85°C at
3.6 V Supply, RSET = 3 kΩ
DRIFT (ppm/°C)
0
5
10
15
20
25
30
35
40
45
5
203550658095
110
125
Figure 23. Excitation Current Drift from −40°C to +85°C at
5.0 V Supply, RSET = 3 kΩ
DRIFT (ppm/°C)
0
5
10
15
20
25
30
35
40
10
20
30
40
50
60
70
80
90
Figure 24. Excitation Current Drift from −40°C to +85°C at
2.6 V Supply, RSET = 692 Ω
DRIFT (ppm/°C)
0
5
10
15
20
25
30
35
40
10
20
30
40
50
60
70
80
90
Figure 25. Excitation Current Drift from −40°C to +85°C at
3.6 V Supply, RSET = 692 Ω
DRIFT (ppm/°C)
0
5
10
15
20
25
30
35
40
10
20
30
40
50
60
70
80
90
Figure 26. Excitation Current Drift from −40°C to +85°C at
5.0 V Supply, RSET = 692 Ω
