Data Sheet

ADA4084-1/ADA4084-2/ADA4084-4

Rev. H | Page 7 of 35

ABSOLUTE MAXIMUM RATINGS

Table 5.

Parameter

Rating

Supply Voltage

±18 V

Input Voltage

V− ≤ VIN ≤ V+

Differential Input Voltage1

±0.6 V

Output Short-Circuit Duration to GND

Indefinite

Storage Temperature Range

−65°C to +150°C

Operating Temperature Range

−40°C to +125°C

Junction Temperature Range

−65°C to +150°C

Lead Temperature (Soldering 60 sec)

300°C

ESD

Human Body Model2

4.5 kV

Machine Model3

200 V

Field-Induced Charged-Device Model

(FICDM)4

1.25 kV

1 For input differential voltages greater than 0.6 V, limit the input current to

less than 5 mA to prevent degradation or destruction of the input devices.

2 Applicable standard: MIL-STD-883, Method 3015.7.

3 Applicable standard: JESD22-A115-A (ESD machine model standard of

JEDEC).

4 Applicable standard: JESD22-C101-C (ESD FICDM standard of JEDEC).

Stresses at or above those listed under Absolute Maximum

Ratings may cause permanent damage to the product. This is a

stress rating only; functional operation of the product at these

or any other conditions above those indicated in the operational

section of this specification is not implied. Operation beyond

the maximum operating conditions for extended periods may

affect product reliability.

THERMAL RESISTANCE

θJA is specified for the device soldered on a 4-layer JEDEC

standard printed circuit board (PCB) with zero airflow.

Table 6. Thermal Resistance

Package Type

θJA

θJC

Unit

5-Lead SOT-23 (RJ-5)

219.4

155.6

°C/W

8-Lead SOIC_N (R-8)

121

°C/W

8-Lead MSOP (RM-8)

142

°C/W

8-Lead LFCSP (CP-8-12)1, 3

°C/W

14-Lead TSSOP (RU-14)

112

°C/W

16-Lead LFCSP (CP-16-26)2, 3

°C/W

1 Values are based on 4-layer (2S2P) JEDEC standard PCB, with four thermal

vias. Exposed pad soldered to PCB.

2 Values are based on 4-layer (2S2P) JEDEC standard PCB, with nine thermal

vias. Exposed pad soldered to PCB.

3 θJC measured on top of package.

ESD CAUTION

D101

D100

Q24

Q21

D20

Q13

Q18

Q19

Q23

FOLDED

CASCADE

VEE

VOUT

VCC

VBIAS

MIRROR

R7 C2

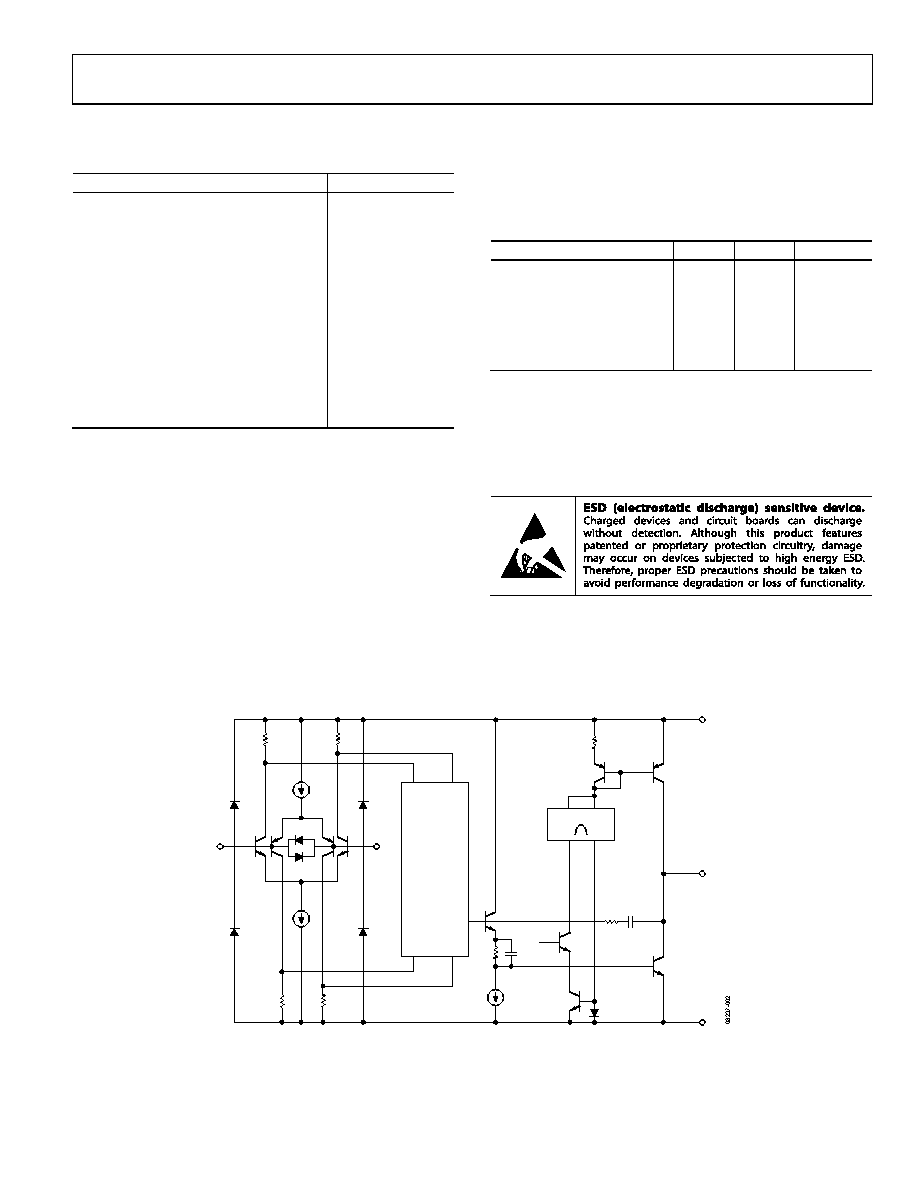

Figure 2. Simplified Schematic
