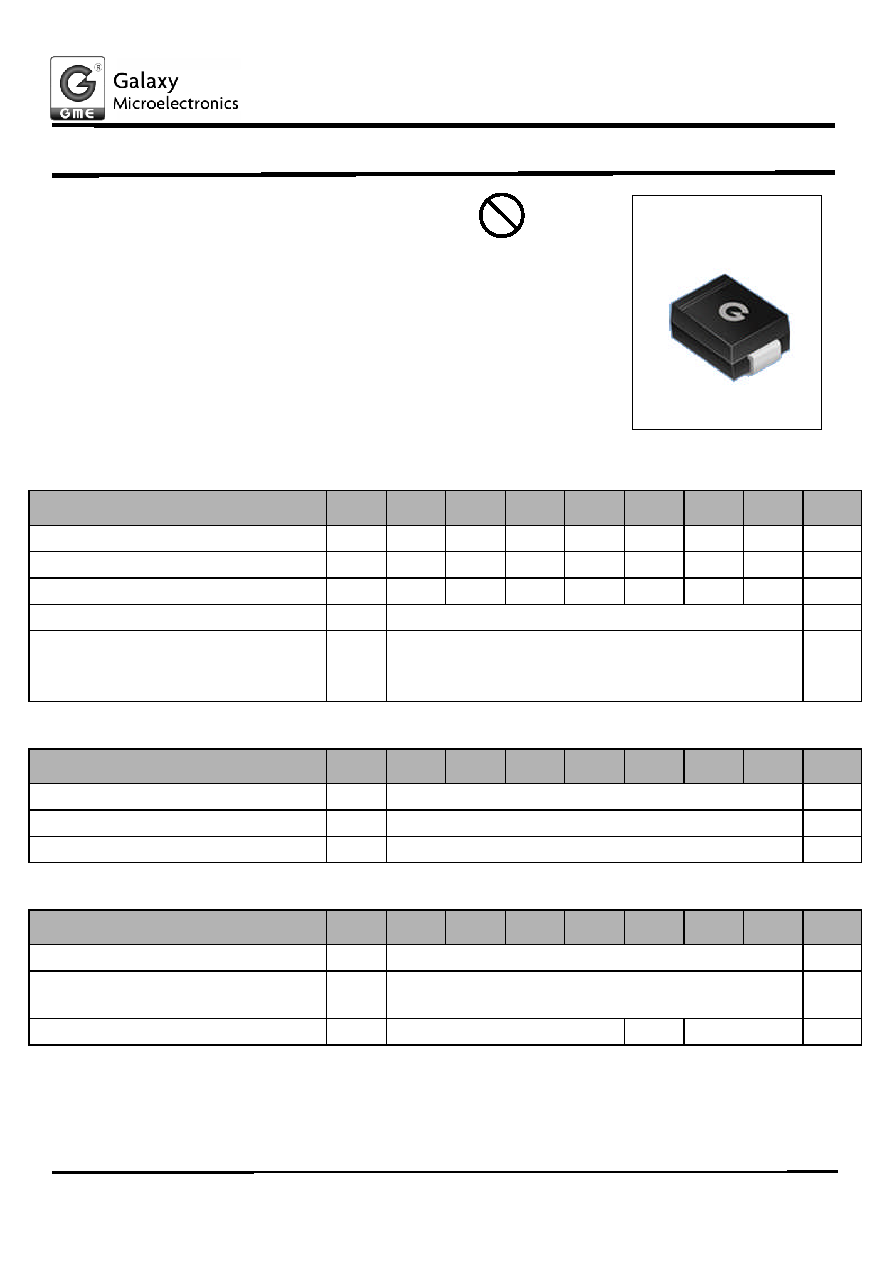

1 / 3 page  Production specification Surface Mount Rectifiers RS3AB--RS3MB Document Number : SMB203AA www.gmicroelec.com 1 FEATURES Low profile package For surface mounted applications Built-in strain relief, ideal for automated placement Plastic package has underwriters, laborator flammability classification 94V-0 High temperature soldering: 250 oC/10 seconds at terminals MECHANICAL DATA Case :JEDEC SMB, molded plastic over ,passivated chip Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: color band denotes cathode end Weight: 0.003 ounces, 0.093 gram Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol RS3AB RS3BB RS3DB RS3GB RS3JB RS3KB RS3MB UNITS Maximum recurrent peak reverse voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 280 420 560 700 V Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V Maximum average forward rectified current TL=90℃ IF(AV) 3.0 A Peak forward surge current 8.3ms single half-sine-wave superimposed on rated load IFSM 100 A Thermal Characteristics Characteristic Symbol RS3AB RS3BB RS3DB RS3GB RS3JB RS3KB RS3MB UNITS Typical junction capacitance (Note2) CJ 32 p F Typical thermal resistance (Note3) RΘJA 40.0 ℃/W Operating junction and storage temperature range TJ TSTG - 55 ------ + 150 ℃ Electrical Characteristics (@TA = 25°C unless otherwise specified) Characteristic Symbol RS3AB RS3BB RS3DB RS3GB RS3JB RS3KB RS3MB UNITS Maximum instantaneous forward voltage at3.0 A VF 1.30 V Maximum reverse current @TA=25 ℃ at rated DC blocking voltage @TA=125℃ IR 5.0 200 μA Typical reverse recovery time (Note1) trr 150 250 500 ns NOTE: 1.Reverse recovery time test conditions: IF=0.5A, IR=1.0A, Irr=0.25A 2. Measured at 1.0MHz and applied reverse voltage of 4.0 Volts 3. Thermal resistance from junction to ambient and junction to lead P.C.B. mounted on 0.2''X0.2''(5.0X5.0mm2) copper pad areas Pb Lead-free |
