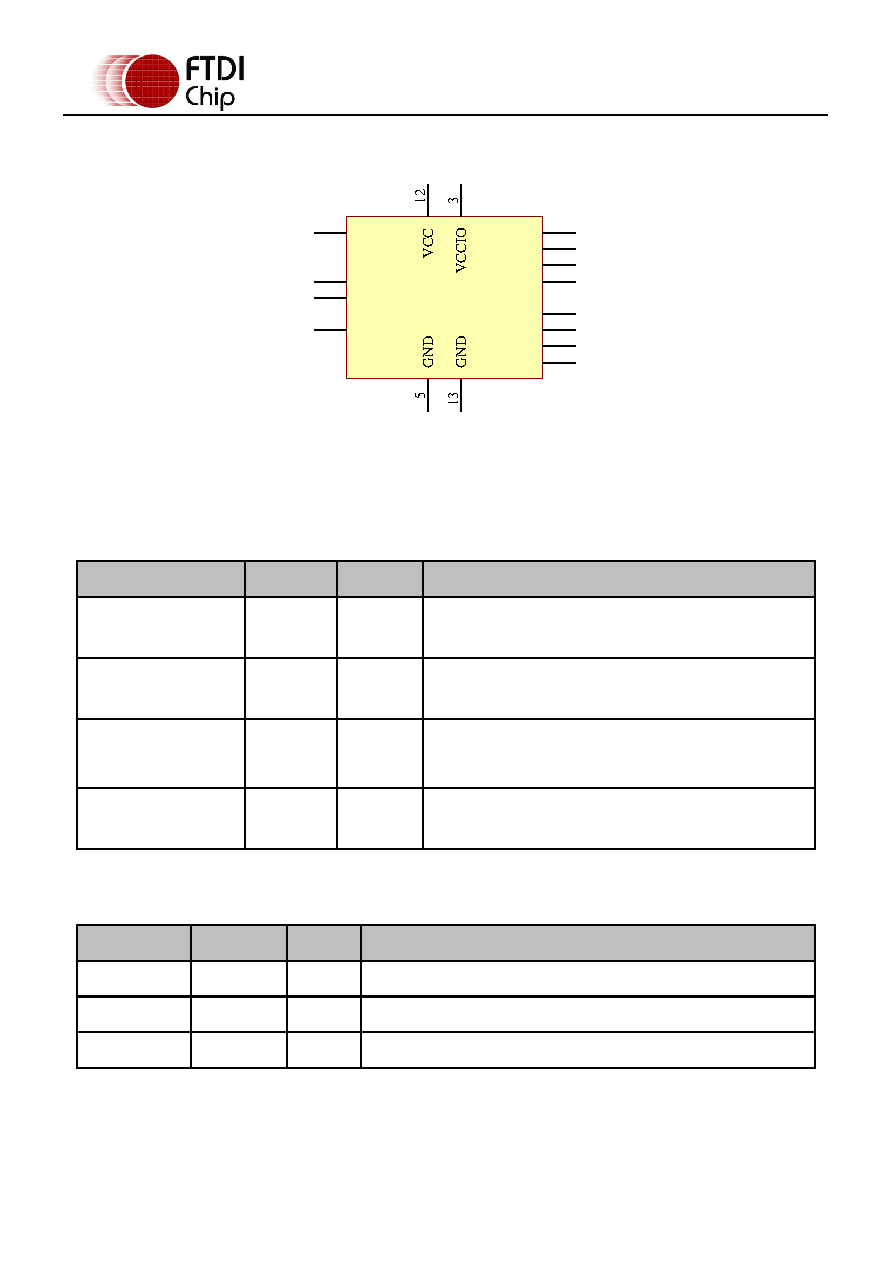

9 / 44 page ![]() Copyright © Future Technology Devices International Limited 9 FT230X USB TO BASIC UART IC Version 1.4 Document No.: FT_000566 Clearance No.: FTDI# 260 3.2 16-LD SSOP Package RXD 4 CTS# 6 CBUS2 7 USBDP 8 USBDM 9 3V3OUT 10 RESET# 11 CBUS1 14 CBUS0 15 CBUS3 16 TXD 1 RTS# 2 U? FT230XS Figure 3.2 SSOP Schematic Symbol 3.2.1 SSOP Package PinOut Description Note: # denotes an active low signal. Pin No. Name Type Description 12 ** VCC POWER Input 5 V (or 3V3) supply to IC 3 VCCIO POWER Input 1V8 - 3V3 supply for the IO cells 10 ** 3V3OUT POWER Output 3V3 output at 50mA. May be used to power VCCIO. When VCC is 3V3; pin 10 is an input pin and should be connected to pin 12. 5, 13 GND POWER Input 0V Ground input. Table 3.4 Power and Ground ** If VCC is 3V3 then 3V3OUT must also be driven with 3V3 input Pin No. Name Type Description 9 USBDM INPUT USB Data Signal Minus. 8 USBDP INPUT USB Data Signal Plus. 11 RESET# INPUT Reset input (active low). Table 3.5 Common Function pins |
|
