TTL-232R-RPi

Version 1.0

Document Reference No.: FT_000722

Clearance No.: FTDI# 296

Future Technology

Devices

International Ltd

Datasheet

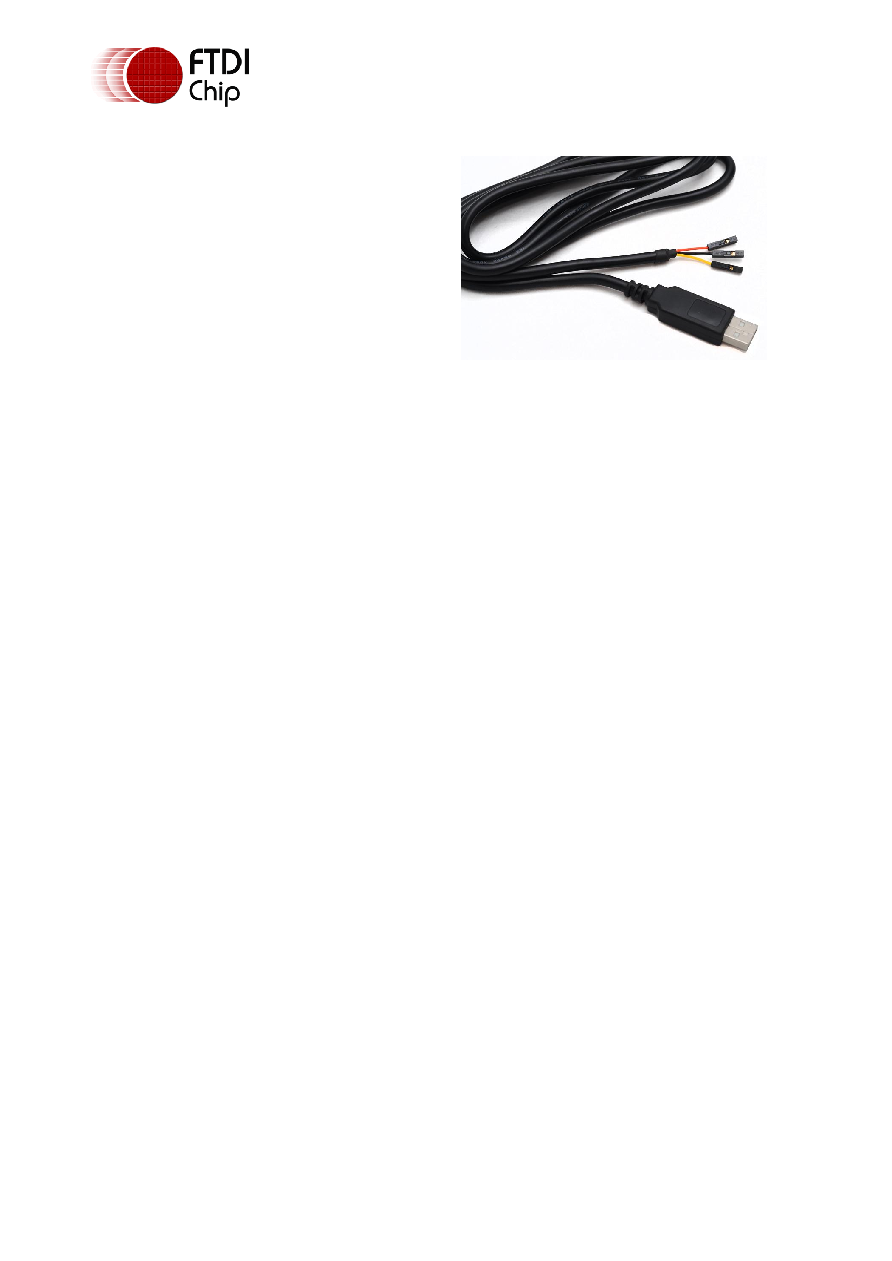

TTL-232R-RPi Debug

Cable for Raspberry Pi

Datasheet

The TTL-232R-RPi cable provides USB to TTL Level UART solutions and

is customised for operation with the Raspberry Pi.

1

Introduction

TTL-232R-RPi is a USB to TTL level serial UART converter cables incorporating FTDI’s FT232RQ USB to

Serial UART interface IC device which handles all the USB signalling and protocols. The TTL-232R-RPi is

designed for use with the Raspberry Pi (RPi), an ultra-low cost, Linux based miniaturised computer. The

debug cable sits on the Rx/Tx of the RPi ARM processor UART – which provides much more detail of

what’s happening within the RPi operating system. Connecting the debug cable to a PC and

communicating with the RPi via a terminal emulator on a PC gives the user access to more detailed

information from the Linux kernel during RPi start-up, which appears on the Rx/TX lines of the UART, as

well as being able to login and access the kernel itself from the PC.

1.1

Features



TTL-232R-RPi Debug cable provides a USB to

TTL Serial interface for Raspberry Pi computer.



On board FT232RQ provides single chip USB to

asynchronous serial data transfer interface.



Entire USB protocol handled by the electronics

in the cable USB.



Connect directly to a microcontroller UART or

I/O pins.



UART interface support for 7 or 8 data bits, 1 or

2 stop bits and odd / even / mark / space / no

parity.



Fully assisted or X-On / X-Off software

handshaking.



Data transfer rates from 300 baud to 3 Mbaud

at TTL levels.



Internal EEPROM with user writeable area.



5V safe TTL inputs make the TTL-232R easy to

interface to 5V MCU’s.



FTDI’s royalty-free VCP allow for communication

as a standard emulated COM port and D2XX

‘direct’ drivers provide DLL application

programming interface.



Support for FT232R FTDIChip-ID™ feature for

improved security.



3x ‘flying leads’ outputs provide TXD, RXD and

GND signals.



Low USB bandwidth consumption.



UHCI / OHCI / EHCI host controller compatible.



USB 2.0 Full Speed compatible.



-40°C to +85°C operating temperature range.



Cable length is 1.0m.



FCC and CE compliant.
