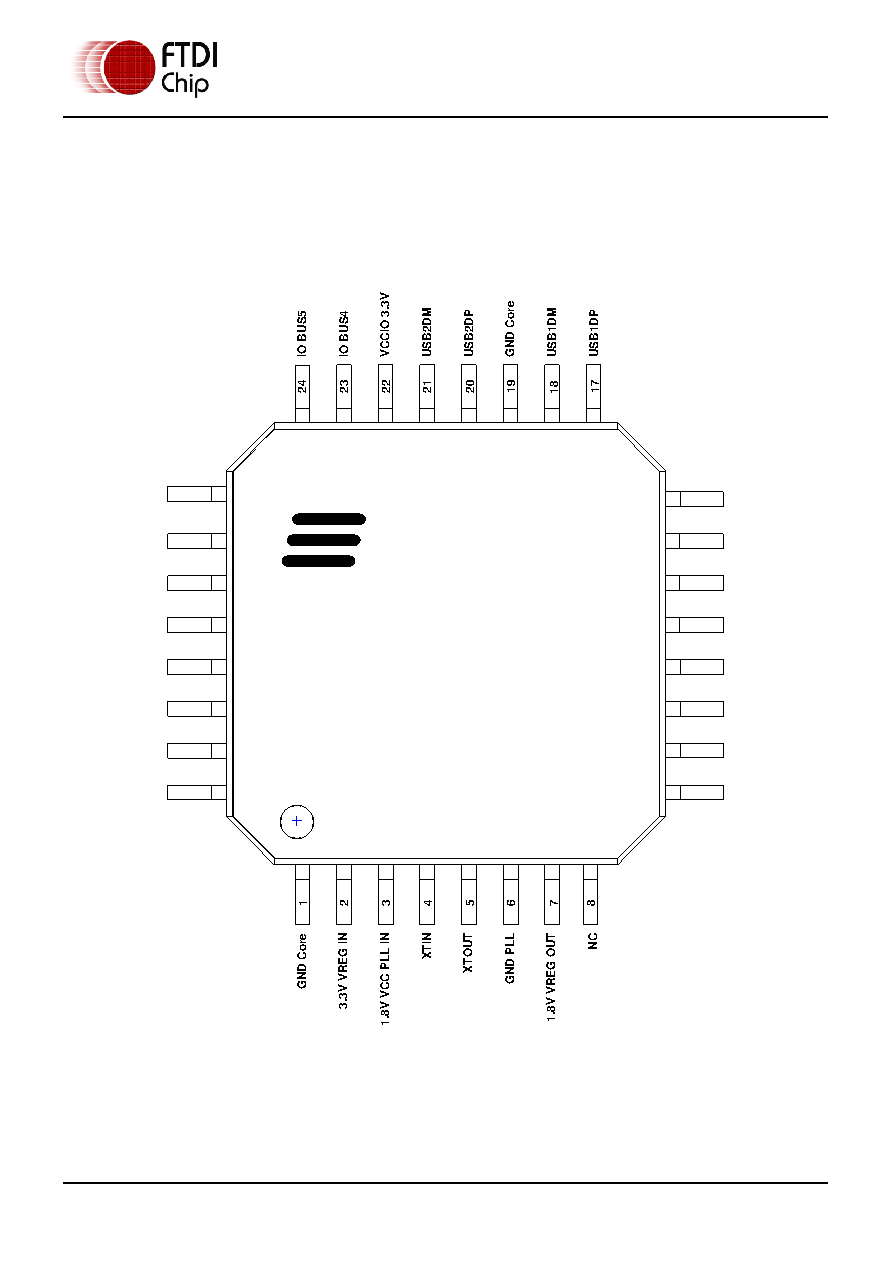

7 / 88 page  7 C opyright © Future T ec hnology Devic es I nternational Limited Datasheet Vinculum-II Embedded Dual USB Host Controller IC V ers ion 1 .7 Doc ument N o.: FT _000138 C learance N o.: FT DI# 1 43 3 Device Pin Out and Signal Description Summary VNC2 is available in six packages: 32 pin LQFP, 32 pin QFN, 48 pin LQFP (pin compatible with VNC1L), 48 pin QFN, 64 pin LQFP and 64 pin QFN. Figure 3.3 shows how the VNC2 pins map to the VNC1L pins (VNC2 pins labelled in bold text): 3.1 Pin Out - 32 pin LQFP FTDI XXXXXXXXXX VNC2-32L1A YYWW 25 26 27 28 29 30 31 32 16 15 14 13 12 11 10 9 GND Core IO BUS6 IO BUS7 IO BUS8 IO BUS11 IO BUS10 IO BUS9 VCCIO 3.3V RESET# PROG# IO BUS0 IO BUS1 GND IO VCCIO 3.3V IO BUS2 IO BUS3 Figure 3.1 32 Pin LQFP – Top Down View |
|
