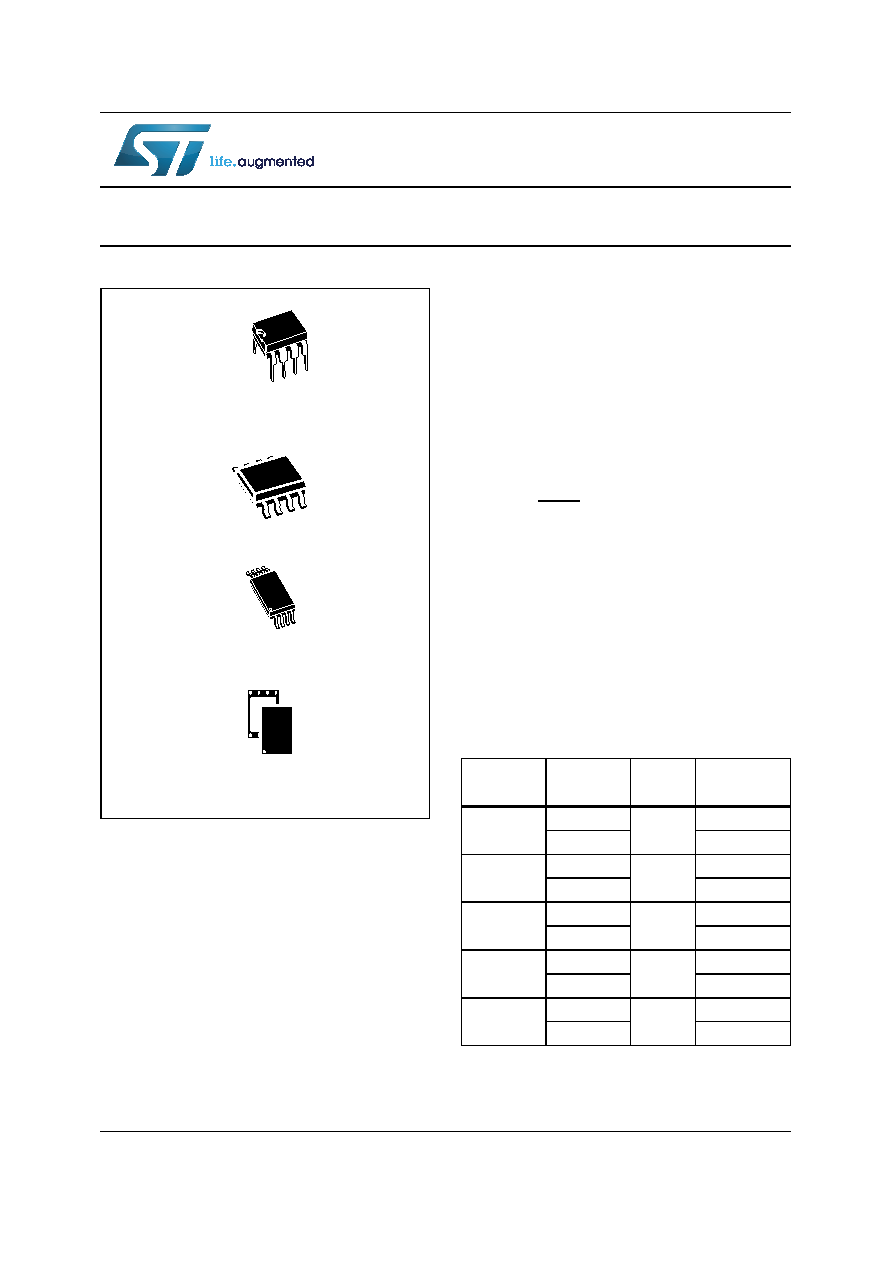

M93C86-x M93C76-x M93C66-x

M93C56-x M93C46-x

16-Kbit, 8-Kbit, 4-Kbit, 2-Kbit and 1-Kbit

(8-bit or 16-bit wide) MICROWIRE™ serial access EEPROM

Datasheet

- production data

PDIP8 (BN)

SO8 (MN)

TSSOP8 (DW)

169 mil width

UFDFPN8 (MC)

2 x 3 mm

Features

• Industry standard MICROWIRE™ bus

• Single supply voltage:

–2.5 V to 5.5 V for M93Cx6-W

–1.8 V to 5.5 V for M93Cx6-R

• Dual organization: by word (x16) or byte (x8)

• Programming instructions that work on: byte,

word or entire memory

• Self-timed programming cycle with auto-erase:

5 ms

• READY/BUSY signal during programming

• 2 MHz clock rate

• Sequential read operation

• Enhanced ESD/latch-up behavior

• More than 4 million write cycles

• More than 200-year data retention

• Packages

– SO8, TSSOP8, UFDFPN8 packages:

ECOPACK2®)

– PDIP8 package:

ECOPACK1®

Table 1. Device summary

Reference

Part

number

Memory

size

Supply

voltage

M93C46-x

M93C46-W

1 Kbit

2.5 V to 5.5 V

M93C46-R

1.8 V to 5.5 V

M93C56-x

M93C56-W

2 Kbit

2.5 V to 5.5 V

M93C56-R

1.8 V to 5.5 V

M93C66-x

M93C66-W

4 Kbit

2.5 V to 5.5 V

M93C66-R

1.8 V to 5.5 V

M93C76-x

M93C76-W

8 Kbit

2.5 V to 5.5 V

M93C76-R

1.8 V to 5.5 V

M93C86-x

M93C86-W

16 Kbit

2.5 V to 5.5 V

M93C86-R

1.8 V to 5.5 V

www.st.com
