0.56" (

± 0.008)

2"

(

± 0.31)

35A to 60A

0.81" (

± 0.008)

3"

(

± 0.31)

Catalog Symbol: DLN-R

Current-Limiting

Dual-element, time-delay – 10 seconds (minimum)

at 500% rated current (8 seconds for 0-30A sizes)

Voltage Rating: 250Vac (or less)

125Vdc (1-60A, 125-200A)

250Vdc (225-600A)

Interrupting Rating: 200,000A RMS Symmetrical

20,000A DC

Agency Information:

CE, UL Listed, Std. 248-12, Class RK5, Guide 198E, File

E4273 CSA Certified, C22.2 No. 248.12, Class 1422-02,

File 53787

Catalog Numbers - Amp Rating

DLN-R-1

DLN-R-15

DLN-R-100

DLN-R-2

DLN-R-20

DLN-R-125

DLN-R-25

DLN-R-150

DLN-R-3

DLN-R-30

DLN-R-175

DLN-R-35

DLN-R-200

DLN-R-4

DLN-R-40

DLN-R-225

DLN-R-5

DLN-R-45

DLN-R-250

DLN-R-6

DLN-R-50

DLN-R-300

DLN-R-60

DLN-R-400

DLN-R-8

DLN-R-70

DLN-R-600

DLN-R-10

DLN-R-80

—

DLN-R-12

DLN-R-90

—

• Designed for contractor needs.

• Protects industrial equipment and large motors.

• Recommended for AC power distribution system mains,

feeders and branch circuits.

• Industry standard time-delay of 10 seconds at 5 times

the fuse rating.

Dimensions - in

Carton Quantity and Weight

Ampere

Carton

Weight*

Ratings

Qty.

Lbs.

Kg.

1–30

10

0.56

0.252

35–60

10

1.38

0.621

70–100

5

1.56

0.702

110–200

1

0.90

0.405

225–400

1

1.80

0.810

450–600

1

3.30

1.485

*Weight per carton.

Recommended fuseblocks for

Class R 250V fuses

See Data Sheet: 1110

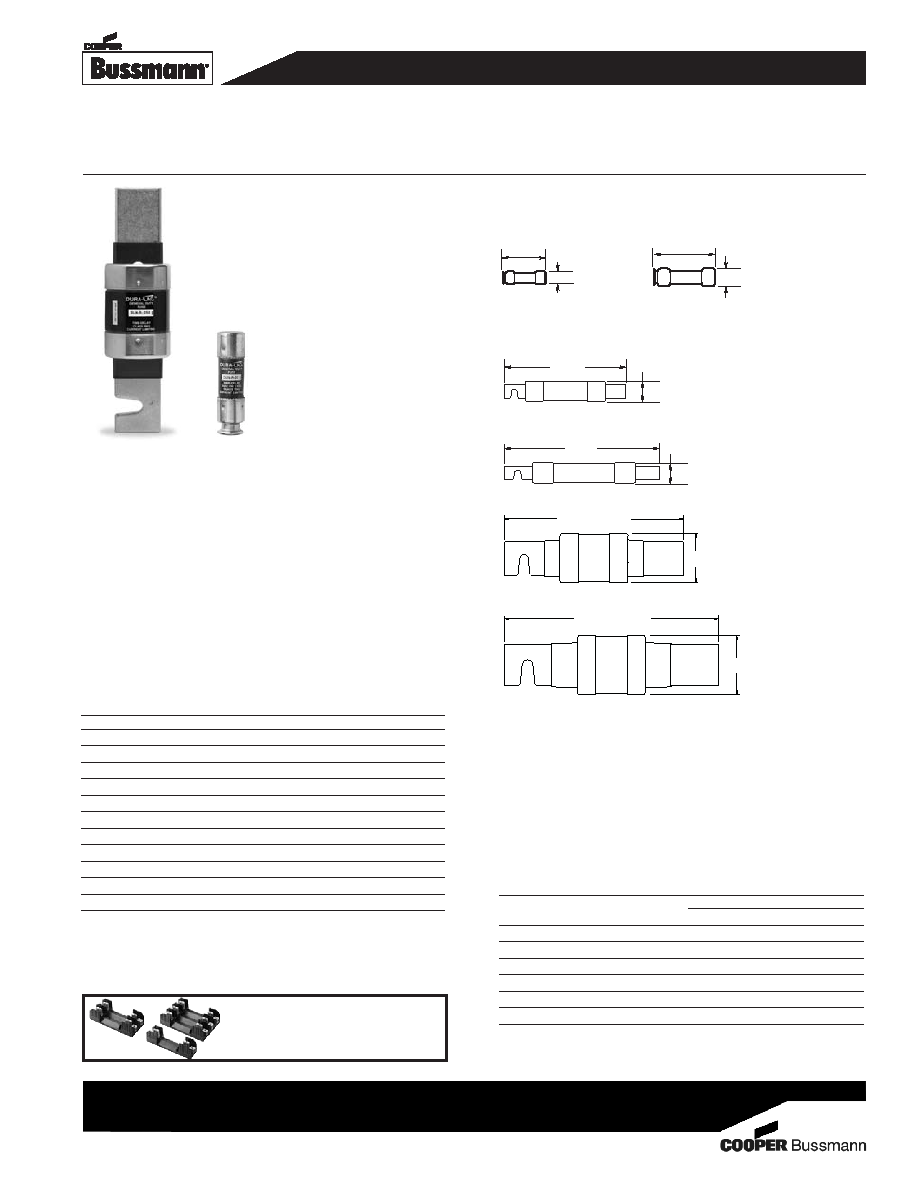

Dura-Lag

Dual-Element, Time-Delay Construction Grade Fuses

Class RK5 - 250 Volt

DLN-R

1

0709 BU-SB08452

Page 1 of 3

Data Sheet 1021

5.88”

1.06”

7.13”

1.56”

8.63” ± 0.094

2.38” ± 0.020

10.38” ± 0.094

2.88” ± 0.020

70 to 100A

110 to 200A

225 to 400A

450 to 600A
