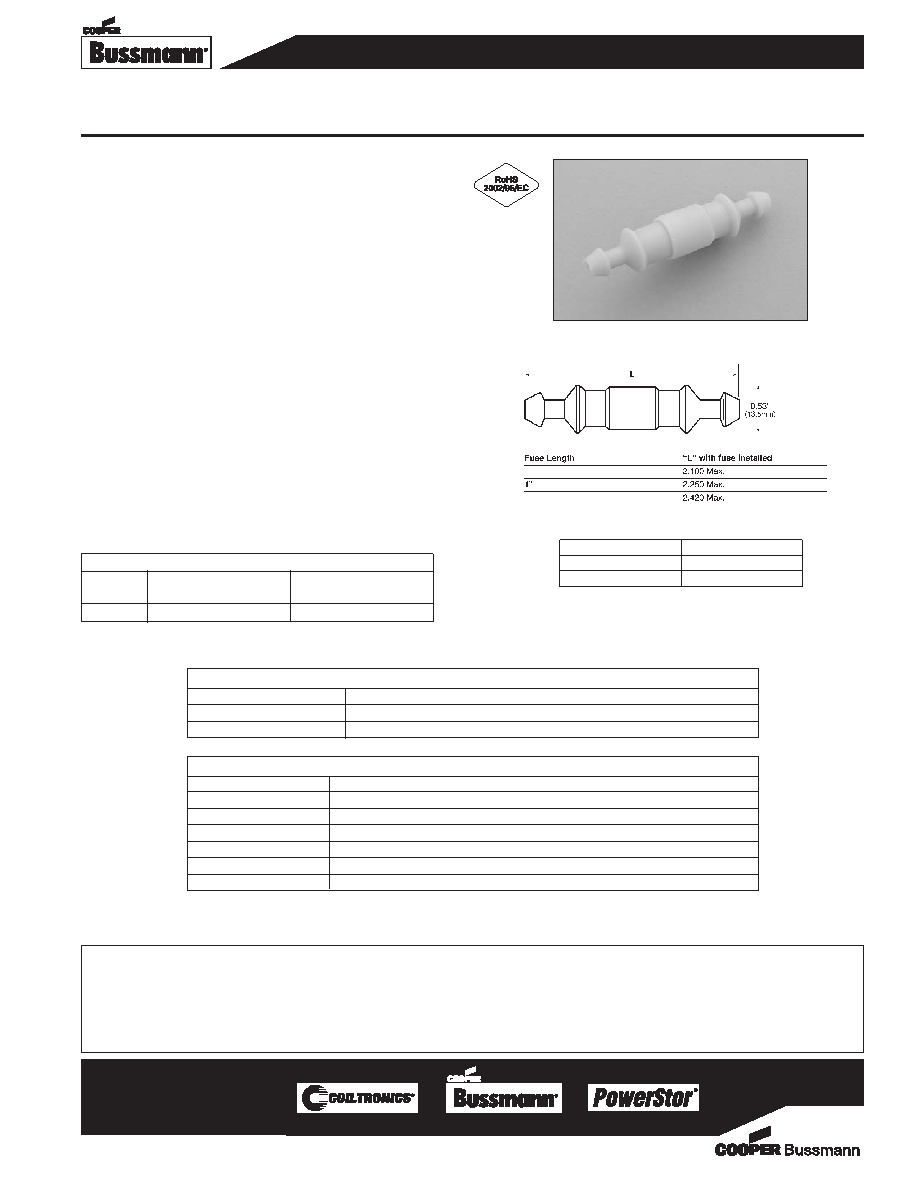

Description

• Accepts #16 to #12 AWG copper wire

• Simple crimp assembly

• “Snap-Lock” feature provides strong positive union

• High visibility yellow color

• Recommended crimp tools:

• Thomas & Betts – ERG-2001

• Channelock No. 909

• General Electric – U.S. & Metric Electrical

Terminal Tool

• UL flammability rating 94 V2

Environmental Data

• Pull Force: 5 pounds minimum to separate

fuseholder housing with fuse inside

Ordering

Specify packaging code

• Insert packaging code prefix before part number.

E.g. BK/HHB-R

Specify option codes if desired

• Drop “-R” suffix when ordering. E.g. BK/HHB-Y408

Packaging Code

Packaging Code Prefix

Description

Blank

10 fuse holders packed into a carton

BK

1,000 fuse holders packed into a cardboard shelf package

Option Code

Option Code

Description

#14 AWG insulated wire with 8 inch yellow leads

#14 AWG insulated wire with 8 inch red leads

#14 AWG insulated wire with 8 inch black leads

#14 AWG insulated wire with 19 inch yellow leads

#14 AWG insulated wire with 19 inch red leads

#14 AWG insulated wire with 19 inch black leads

Specifications

Part

Number

Volts

Amps

HHB-R*

32

30 max

4

1

˝

/

1

8

7

˝

/

Dimensions - in (mm)

Drawing Not to Scale

Component

Material

Body

Nylon

Crimp

Copper Tin-Plated

1

HHB Series

© 2009 Cooper Bussmann

St. Louis, MO 63178

www.cooperbussmann.com

0509

BU-SB09721

Page 1 of 1

Data Sheet 2103

The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is

intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change

design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained

in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.

Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support

systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in

significant injury to the user.

*RoHS compliant construction.

**Not available in RoHS compliant construction.

† Drop “-R” suffix when ordering these options.
