SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY MODULE

MODEL NO: 16235

PACIFIC DISPLAY DEVICES

07.01.2003

13

3.2 Display Data RAM Address Map

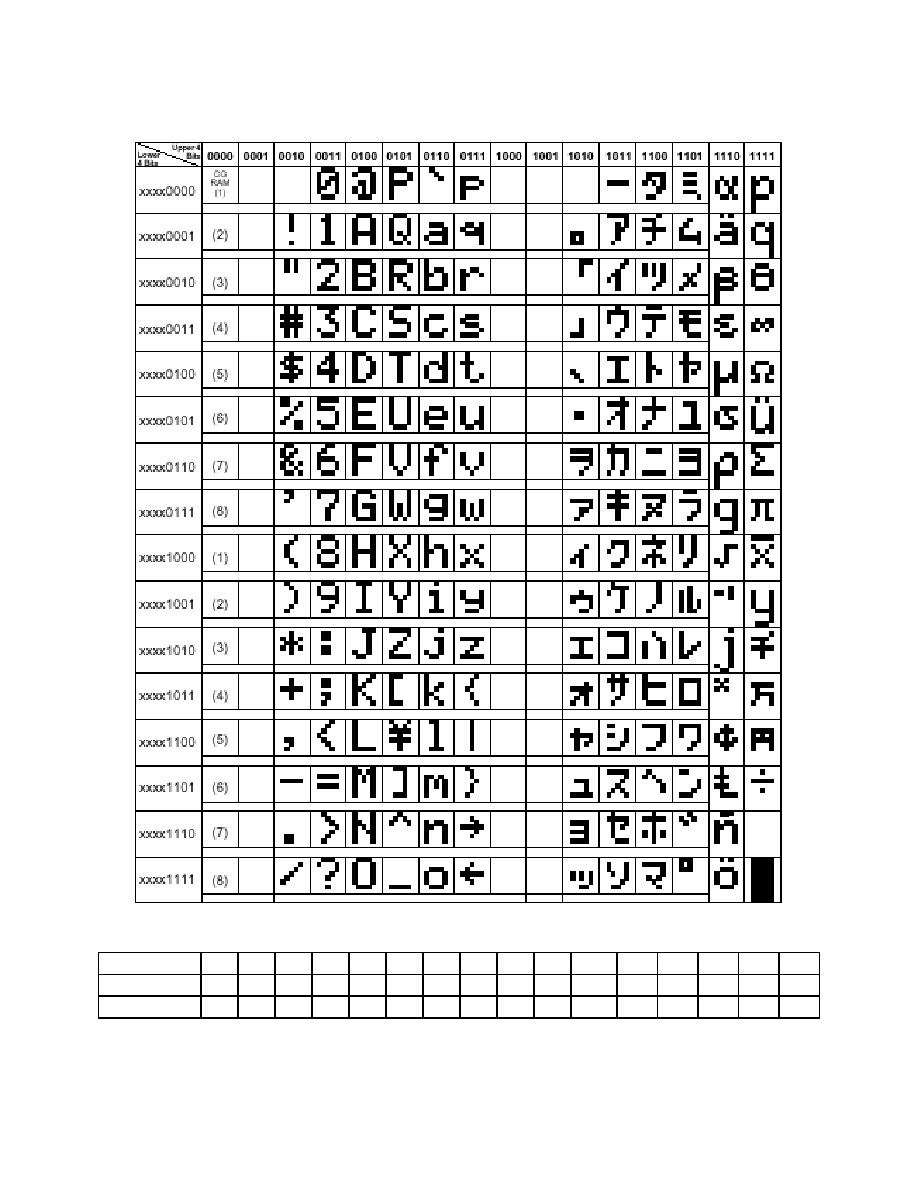

LCD Character Location map

Characters

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

First line

00H 01H 02H 03H 04H 05H 06H 07H 08H 09H 0AH 0BH 0CH 0DH 0EH 0FH

Second line 40H 41H 42H 43H 44H 45H 46H 47H 48H 49H 4AH 4BH 4CH 4DH 4EH 4FH
