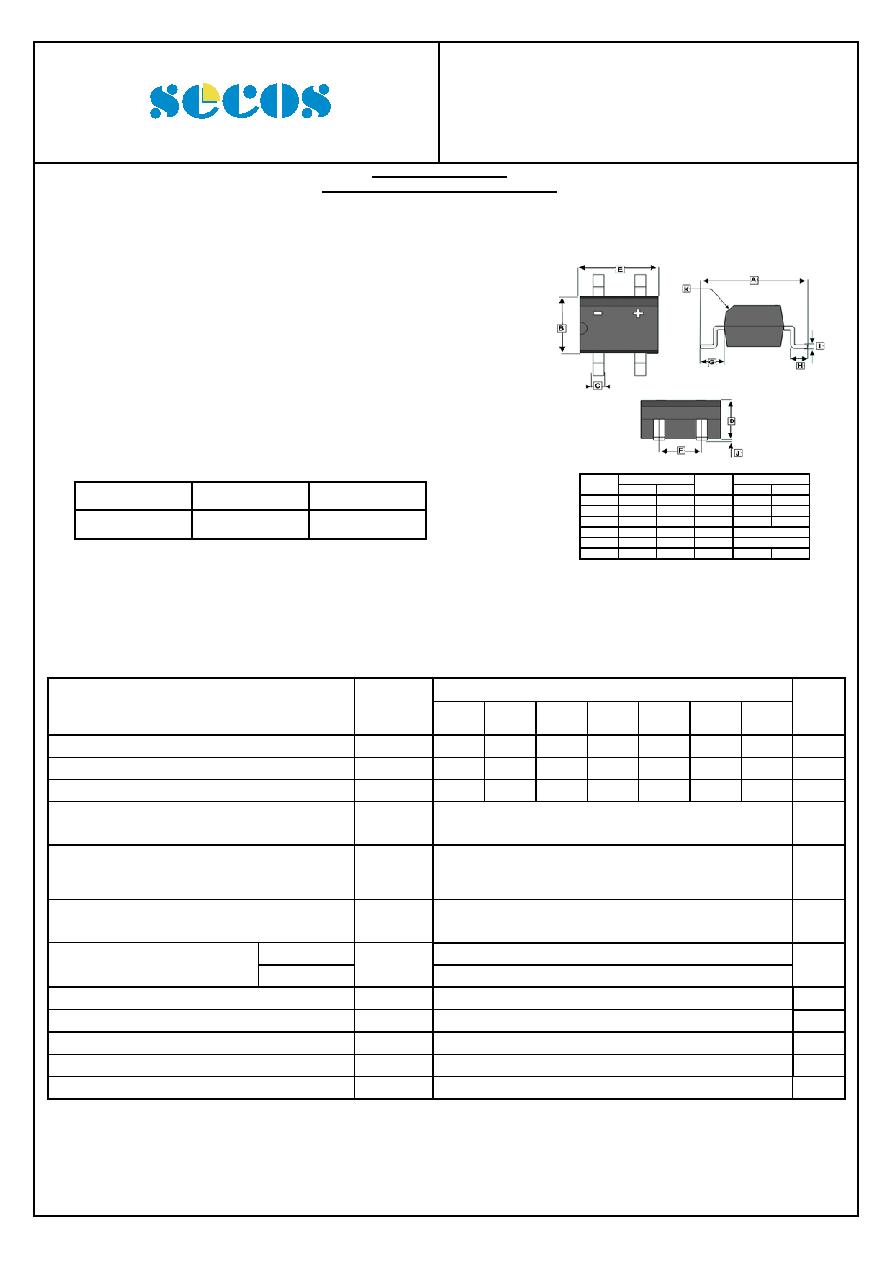

Elektronische Bauelemente

MD151S ~ MD157S

Voltage 50V ~ 1000V

1.5 Amp Surface Mount Bridge Rectifiers

18-Apr-2014 Rev.A

Page 1 of 2

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES

Plastic material has UL flammability classification 94V-0

High surge current capability

Saves space on printed circuit boards

Glass passivated structure

MECHANICAL DATA

Case: Molded plastic body over passivated junctions

Polarity: As marked on body 

Mounting position: Any

PACKAGE INFORMATION

Package

MPQ

Leader Size

MDS

3K

13 inch

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Rating 25°C ambient temperature unless otherwise s pecified. Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, de-rate current by 20%.)

Part Number

Parameter

Symbol

MD

151S

MD

152S

MD

153S

MD

154S

MD

155S

MD

156S

MD

157S

Unit

Maximum Recurrent Peak Reverse Voltage

50

100

200

400

600

800

1000

V

Maximum RMS Voltage

35

70

140

280

420

560

700

V

Maximum DC Blocking Voltage

50

100

200

400

600

800

1000

V

Maximum Average Forward Current , On

glass-epoxy P.C.B.

1.5

A

Peak Forward Surge Current 8.3 ms Single Half

Sine-Wave Superimposed on Rated Load

(JEDEC Method)

50

A

Maximum instantaneous forward voltage @ 1.5A

per leg

1.1

V

5

Maximum DC Reverse Current

at Rated DC Blocking Voltage

100

µA

Rating for fusing, t≦8.3ms

I

2

T

10

A

2

S

Typical junction capacitance per at 4.0V,1.0MHz

25

pF

Thermal resistance junction to ambient

1

85

°C/W

Thermal resistance junction to lead

1

25

°C/W

Operating and Storage Temperature range

-55~150

°C

Note:

1. On glass epoxy P.C.B. mounted on 0.05x0.05''(1.3x1.3mm) pads

MDS

Millimeter

Millimeter

REF.

Min.

Max.

REF.

Min.

Max.

A

-

7.0

G

1.3

1.7

B

3.5

4.2

H

0.48

1.1

C

0.4

0.8

I

0.1

0.45

D

2.3

2.7

J

0.2(TYP.)

E

4.5

5.0

K

0.5*15°

F

2.3

2.7
