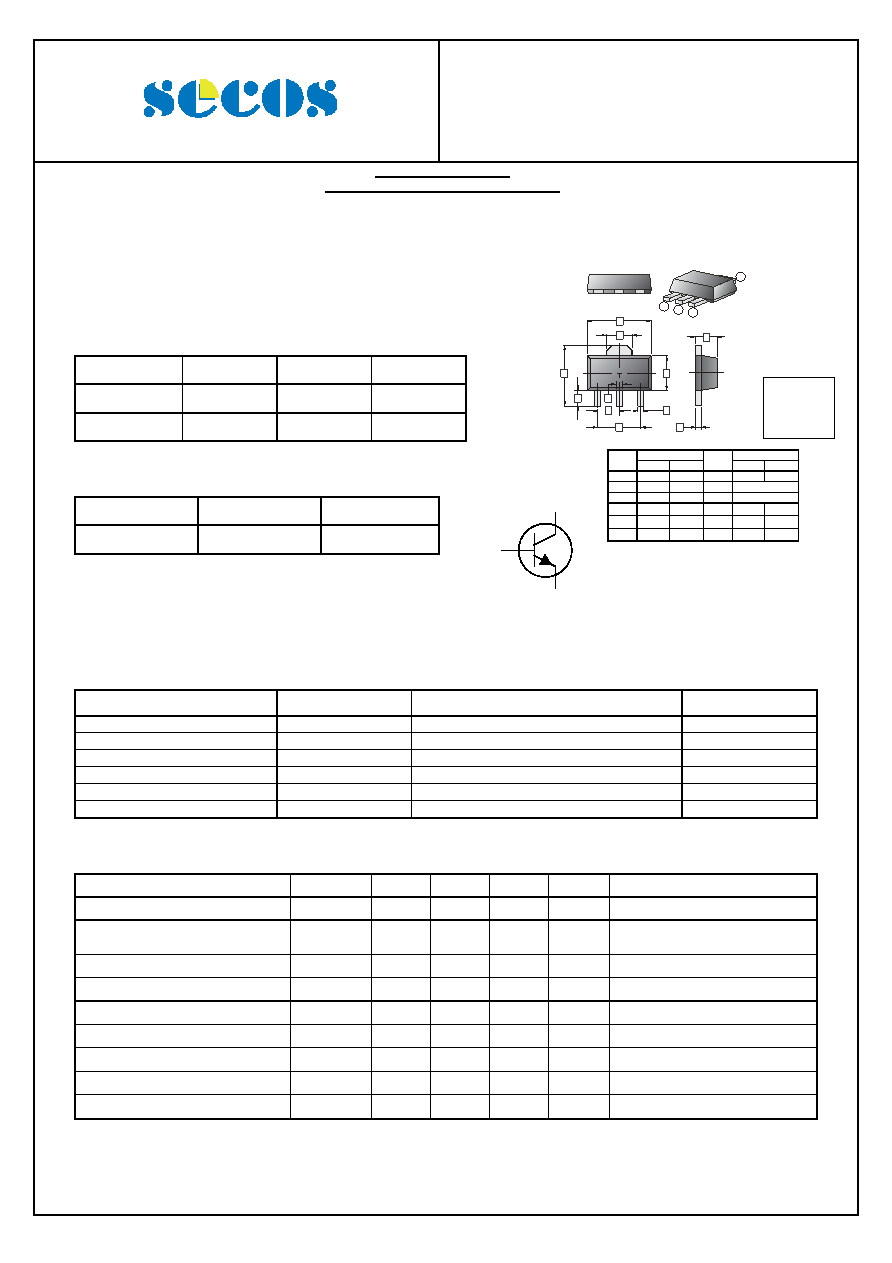

1 / 2 page

Elektronische Bauelemente

2SD1766

2A, 40V

NPN Epitaxial Planar Transistor

04-Nov-2014 Rev. A

Page 1 of 2

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

A

E

C

D

B

K

H

F

G

L

J

1

2

3

4

1

Base

3

Emitter

Collector

2

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

DESCRIPTION

The 2SD1766 is suited for the output stage of 0.5W audio,

voltage regulator, and relay driver.

CLASSIFICATION OF hFE

Product Rank

2SD1766-P

2SD1766-Q

2SD1766-R

Range

82~180

120~270

180~390

Marking

DBP

DBQ

DBR

PACKAGE INFORMATION

Package

MPQ

Leader Size

SOT-89

1K

7’ inch

ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise specified)

Parameter

Symbol

Ratings

Unit

Collector-Base Voltage

VCBO

40

V

Collector-Emitter Voltage

VCEO

32

V

Emitter-Base Voltage

VEBO

5.0

V

Collector Current -Continuous

IC

2.0

A

Total Power Dissipation

PD

0.5

W

Junction & Storage temperature

TJ, TSTG

150, -55~150

°C

ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified)

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test Conditions

Collector-base breakdown voltage

V(BR)CBO

40

-

V

IC= 50 µA, IE=0

Collector-emitter breakdown

voltage

V(BR)CEO

32

-

V

IC= 1 mA, IB=0

Emitter-base breakdown voltage

V(BR)EBO

5.0

-

V

IE= 50 µA, IC=0

Collector cut-off current

ICBO

-

1

µ

A

VCB= 20 V, IE=0

Emitter cut-off current

IEBO

-

1

µ

A

VEB= 4 V, IC=0

DC current gain

hFE

82

-

390

VCE= 3 V, IC= 0.5 A

Collector-emitter saturation voltage

VCE(sat)

-

0.8

V

IC= 2 A, IB= 0.2 A

Transition frequency

f T

-

100

-

MHz

VCE=5V, IE=50mA, f=100MHz

Output Capacitance

COB

-

30

-

pF

VCB=10V, IE=0, f=1MHz

SOT-89

Millimeter

REF.

Min.

Max.

REF.

Min.

Max.

A

4.40

4.60

G

0.40

0.58

B

3.94

4.25

H

1.50

TYP

C

1.40

1.60

J

3.00

TYP

D

2.30

2.60

K

0.32

0.52

E

1.50

1.70

L

0.35

0.44

F

0.89

1.20

1. Base

2. Collector

3. Emitter
