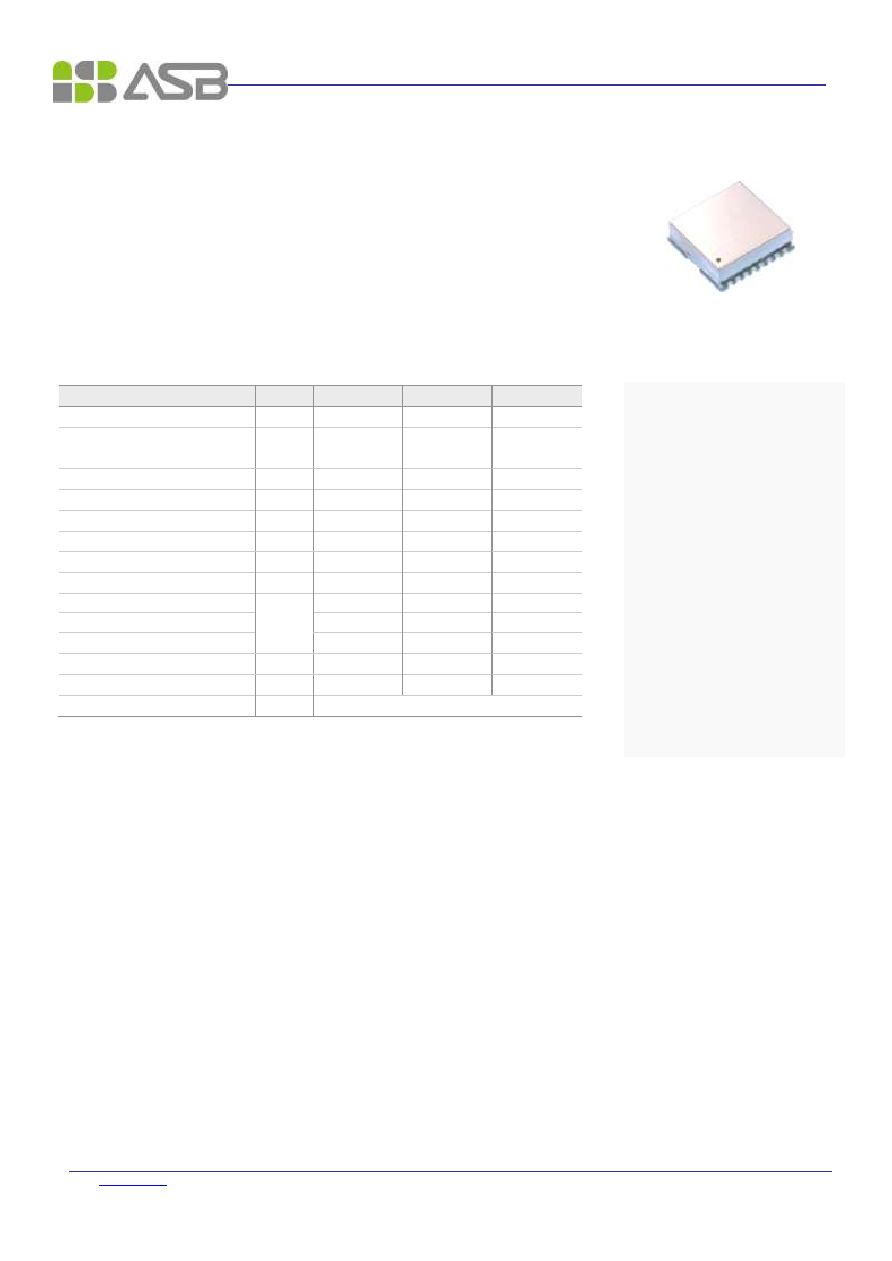

plerowTM APLS2195-R

PLL Synthesizer Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

2195

Output Power

dBm

3

Supply Voltage

V

5

Current Consumption

mA

30

2nd Harmonics

dBc

-25

Spurious Level

dBc

-65

Reference Frequency

MHz

10

Reference Input Level

dBm

0

Phase Noise (C / N)

@ 1 kHz

dBc/Hz

-80

@ 10 kHz

-95

@ 100 kHz

-115

Output Impedance



50

Operating Temp. Range

C

-40

25

85

Package Type & Size

mm

SMT, 12.7W

12.7L3H

1) Measurement conditions are as follows: T = 25

C, V

CC = 5 V, Freq. = 2195 MHz, 50 ohm system.

2) The phase noise tolerance could be within +/- 2 dBc/Hz depending upon the noise applied to PLL from the dc power supplier.

Specifications

Description

The plerowTM PLL synthesizer module was designed for use in wireless and wire-

line systems in a wide range of frequency from 50 MHz to 6 GHz. ASB

’s PLL pro-

vides exceptionally low spurious and phase noise performance with fast locking

time and low current consumption. All products are available in a surface-mount

type package.

More Information

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7220

Fax: (82) 42-528-7222

ASB Inc., 44-14, Techno 10-ro,

Yuseong-gu Daejeon, 305-510,

Korea
