T range up to 200°C

ELECTRICAL

CHARACTERISTICS AT +25°C

Frequency stability

Over temperature range C = -55 to +125°C

(see ordering info)

Including 2)*

ΔF/F

≤ ± 100

ppm

Frequency stability

Over temperature range E = -55 to +150°C

(see ordering info)

Including 2)*

ΔF/F

≤ ± 150

Frequency stability

Over temperature range D = -55 to +175°C

(see ordering info)

Including 2)*

ΔF/F

≤ ± 300

Frequency stability

Over temperature range G = -55 to +200°C

(see ordering info) Including

2)* 3)*

ΔF/F

≤ ± 400

Supply voltage ± 5%

1)*

Vdd

2.5 / 3.3 / 5

V

Input current

Idd

see table 1

Output signal

HC-MOS compatible

Symmetry at Vdd/2

40 / 60

%

Rise & fall time

(load 15pf 20% to 80%)

25

ns

Level "0" & "1"

<0.4>Vdd-0.5

V

Start-up time

t

<5

ms

Load min / max

3/27

pF

DESCRIPTION:

This SMD oscillator in ceramic package has been specially designed for

surface mount using infrared, vapor phase or epoxy techniques.

APPLICATIONS:

- Downhole and Well drilling equipments

- Avionics

- Airbone equipments

- Geothermal equipments

- Firefighterequipments

The MCSO2's are supplied on trays (128 pcs / tray)

For pick-and-place equipment, the parts are available in 12mm tapes

with 250 parts min

1000 parts min

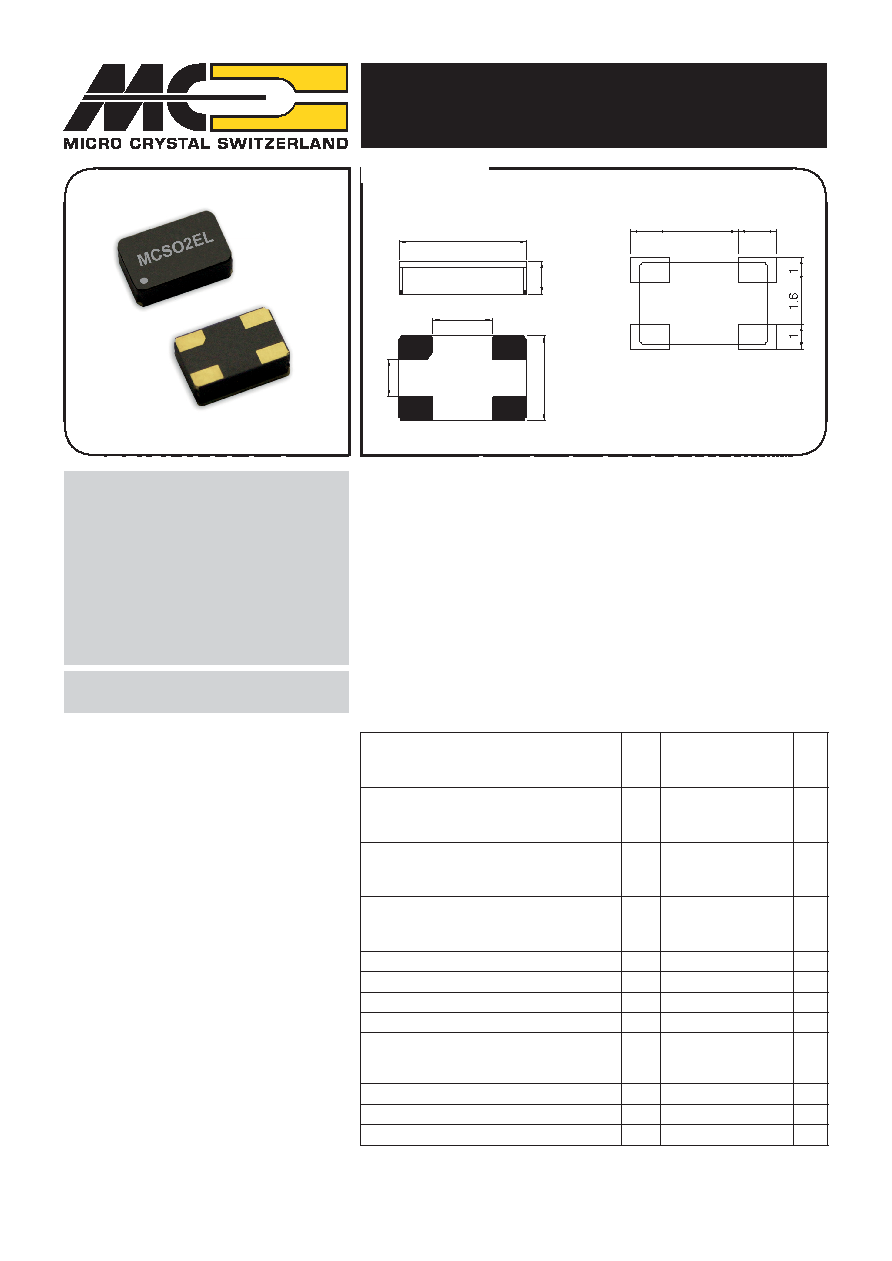

SMT Clock oscillator in ceramic

package

Fundamental quartz mode frequency

High shock and vibration resistance

Wide temperature range

Low aging

Ultra low internal MSL

Very fast start-up

Excellent solderability

Swiss made quality

Customer specification on request

DIMENSIONS

Recommended Solder Pad:

All dimensions in mm typical

100% Leadfree, RoHScompliant:

5.00

2.35

3.20

1.6

1.6

1

2

3

4

1.5

2.7

1.5

4

3

1

2

pin 1 E/D

pin 2 GND

pin 3 Fout

pin 4 Vdd

Package:

Bottom view

* 1) C = 47nF ceramic must be connected between GND & Vdd

Operable over 2.3 to 5.5V

* 2) adjustment at +25°C, long term aging 1000h at Tmax ordered

over supply voltage ±5% and over load min to max

* 3) Only available with Supply voltage 5V

Frequency stability

included 1000h at Tmax
