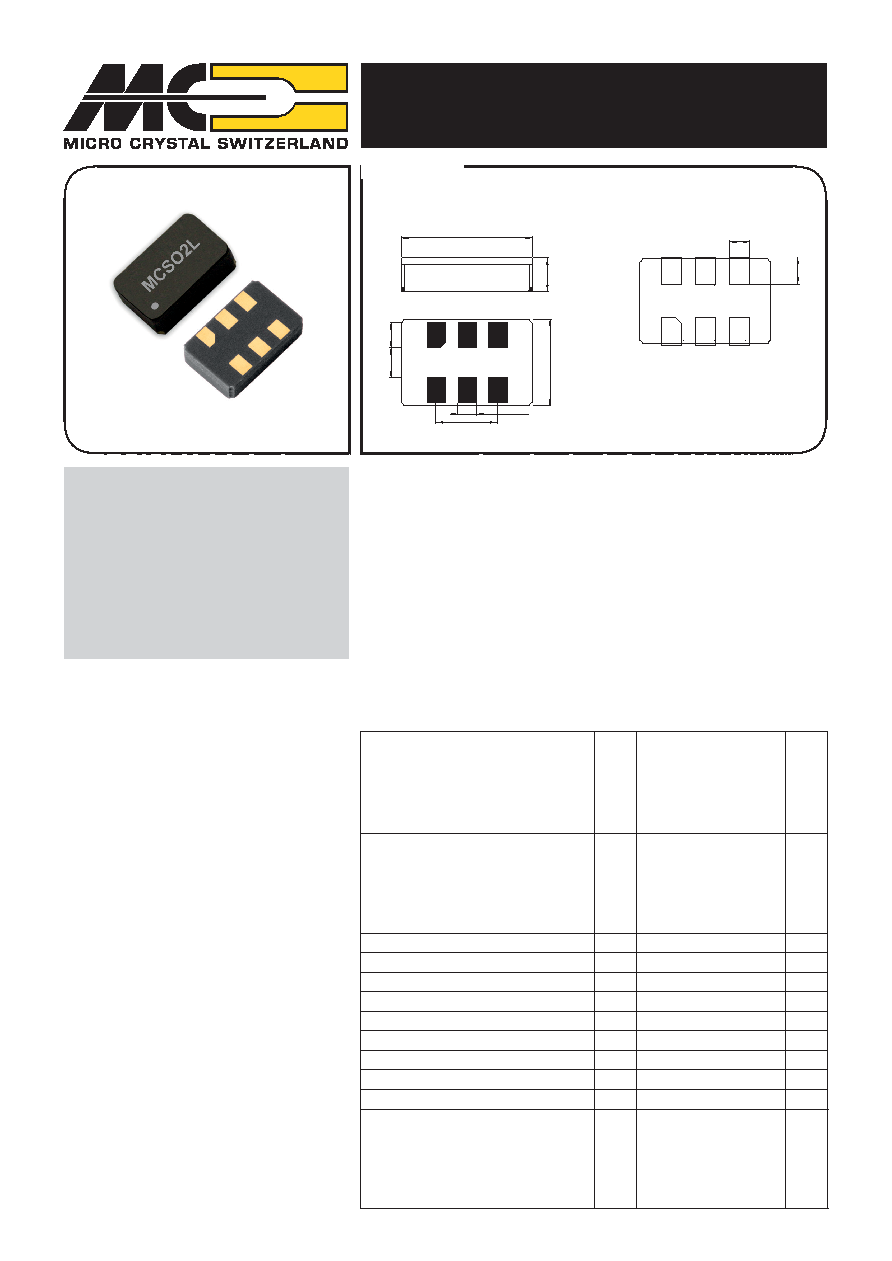

DIMENSIONS

From 40 MHz to 130 MHz LVDS Output

Recommended Solder Pad:

All dimensions in mm typical

ELECTRICAL

CHARACTERISTICS AT +25°C

Frequency stability (standard)

Over temperature range

(see orderding info)

Including: adjustment at 25°C

long term aging 10 years

over supply voltage ±5%

ΔF/F

≤ ± 100

ppm

Frequency stability version T

Over temperature range

(see ordering info)

Including: adjustment at +25°C

long term aging 1 year

over supply voltage ±5%

ΔF/F

≤ ± 50

ppm

Supply voltage ± 5%

1)*

Vdd

2.5 / 3.3

V

Input current

Idd

see table 1

Output signal (load 100 ohm)

LVDS

Symmetry (max)

45 / 55

%

Rise & fall time (20% to 80%)

<1

ns

Level Logic low (Typ/min)

1.1 / 0.9

V

Level Logic high (Typ/max)

1.4 / 1.6

V

Start-up time

t

<5

ms

Jitter RMS (1KHz to 1MHz)

<0.3

ps

100% Leadfree, RoHScompliant:

DESCRIPTION:

This SMD oscillator in ceramic package has been specially designed for

surface mount using infrared, vapor phase or epoxy techniques.

APPLICATIONS:

- Avionics

- Airborne equipments

- Remote control

- Security application

- Radio Transceiver

- Microprocessor clocks

The MCSO2L's are supplied on trays (128 pcs / tray)

For pick-and-place equipment, the parts are available in 12mm tapes

with 250 parts min

1000 parts min

SMT LVDS Clock oscillator in

ceramic package

Fundamental quartz mode frequency

High shock and vibration resistance

Wide temperature range

Low aging

Ultra low internal MSL

Very fast start-up

Excellent solderability

Swiss made quality

Customer specification on request

5.00

2.35

0.65

3.20

1.2

0.9

1

2

3

6

5

4

6

5

4

1

2

3

1.6

0.8

1.4

pin 1 E/D

pin 2 NC

pin 3 GND

pin 4 Fout

pin 5 CFout

pin 6 Vdd

Package:

Bottom view

* 1) C = 47nF ceramic must be connected

between GND & Vdd differential

Phase noise typical at 100MHz

Static conditions

10Hz

BW = 1Hz

100Hz

1 kHz

10 kHz

100kHz

-70

-100

-125

-145

-150

dBc/

Hz
