Analysis Tools: InfiniiSim (N5465A)

The most advanced waveform transformation software helps you render waveforms anywhere in a

digital serial data link

InfiniiSim waveform transformation toolset provides the most flexible and accurate means to render waveforms anywhere in a digital

serial data link. The highly configurable system modeling enables you to remove the deleterious effects of unwanted channel elements,

simulate waveforms with channel models inserted, view waveforms in physically improbable locations, compensate for loading of

probes and other circuit elements, and do so simply and quickly on your tool of choice, the Z-Series at up to 63 GHz of bandwidth.

Circuit models to define your

setup

The InfiniiSim waveform transformation

toolset provides a graphical user interface

for you to define your system as you

understand it and even make it arbitrarily

complex. You do this by selecting

topologies and defining circuit blocks.

Model reflections

With the InfiniiSim waveform

transformation toolset, you can transform

signals with confidence, whether you are

inserting or removing channel elements

or relocating the measurement plane.

InfiniiSim’s advanced toolset lets you

model up to 27 different elements at

once and model the interaction between

elements. Only toolsets with the ability

to model more than one element will

properly reflect a model including the

oscilloscope’s input. The Z-Series scopes

provide their own S11 parameter to allow

modeling of their own input.

Model your system with as much

detail as you need

InfiniiSim features the model setup that

best matches your design. Whether it

is a simple single-element model or an

advanced general-purpose model with

up to 27 elements in the link, you can

perfectly model your design and simulate

the exact probing point you want.

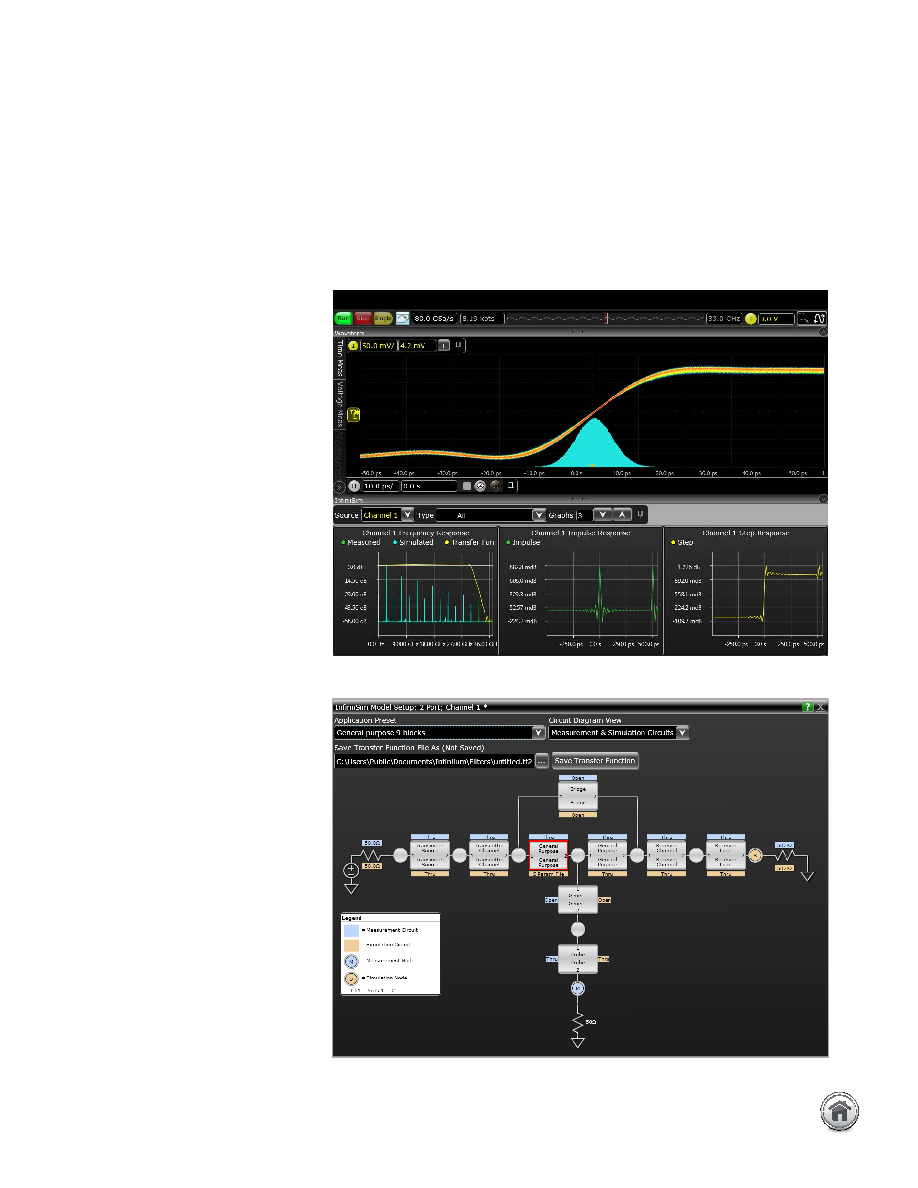

InfiniiSim renders the waveform through hardware acceleration.

InfiniiSim allows embedding and de-embedding of up to 27 different elements or S-parameter

models at once to meet your most demanding requirements.
