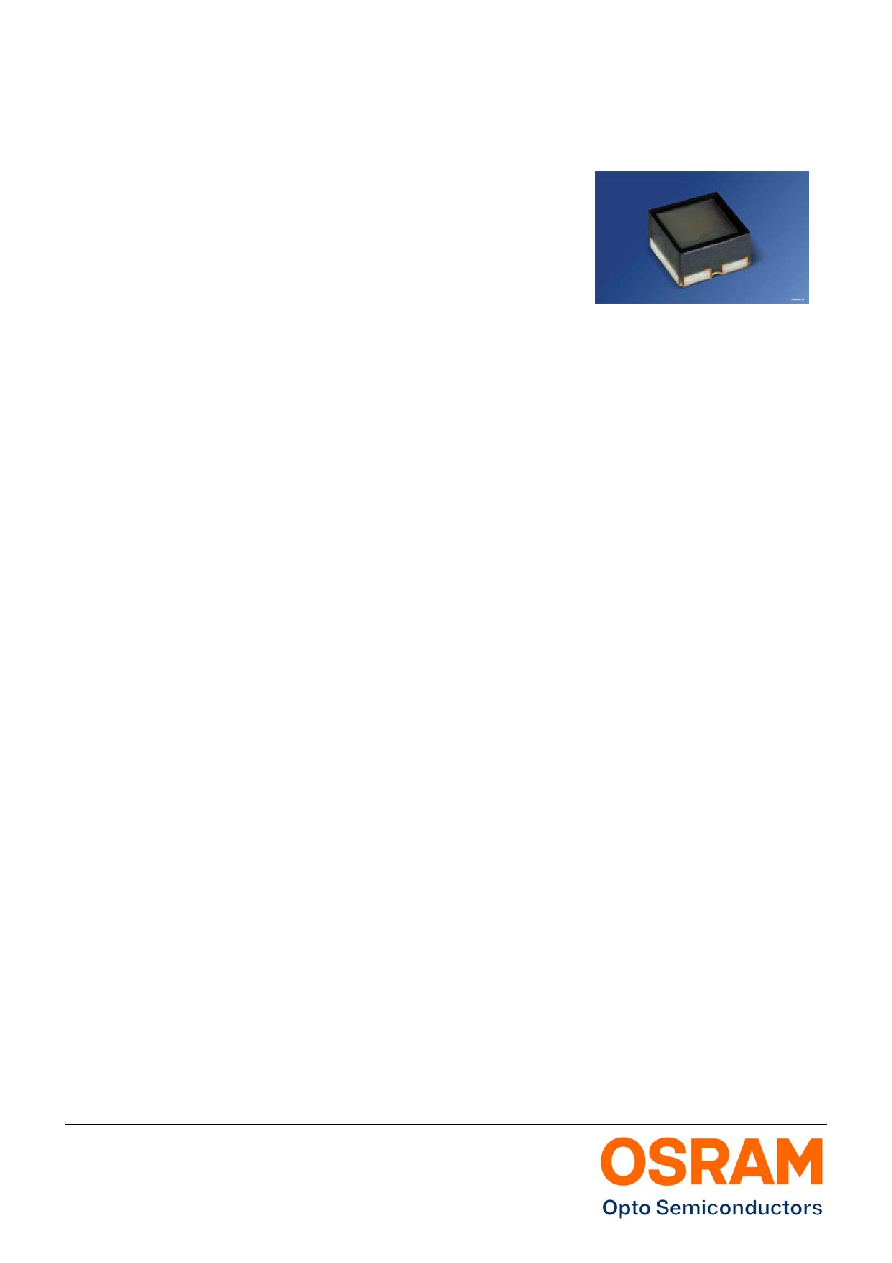

LRTB R98G

Multi CHIPLED

Lead (Pb) Free Product - RoHS Compliant

Version 1.8

2018-03-19

1

Besondere Merkmale

• Gehäusetyp: schwarzes SMT-Gehäuse,

Kontrasterhöhung durch schwarze Oberfläche

(RGB-Displays) und diffuses Harz

• Besonderheit des Bauteils: additive

Farbmischung durch unabhängige

Ansteuerung aller Chips

• Wellenlänge: 625 nm (rot),

528 nm (true green), 470 nm (blau)

• Abstrahlwinkel: 100°

• Gruppierungsparameter: Lichtstärke,

Wellenlänge

• Verarbeitungsmethode: für alle

SMT-Bestücktechniken geeignet

• Lötmethode: Reflow Löten

• Vorbehandlung: nach JEDEC Level 2

• Verpackungseinheit: 4 Rollen mit 3’000/Rolle,

ø180 mm

• ESD-Festigkeit: ESD-sensitiv

• Erweiterte Korrosionsfestigkeit:

Details siehe Seite 18

Anwendungen

• Videoleinwände im Innenbereich

• Vollfarb-Displays

• Getrennte Ansteuerung der Leuchtdiodenchips

zur Darstellung verschiedener Farben inklusive

weiß

Features

• package: black SMT package, higher contrast

by a black surface (RGB-Displays) and diffused

resin

• feature of the device: additive mixture of color

stimuli by independent driving of each chip

• wavelength: 625 nm (red),

528 nm (true green), 470 nm (blue)

• viewing angle: 100°

• grouping parameter: luminous intensity,

wavelength

• assembly methods: suitable for all

SMT assembly methods

• soldering methods: reflow soldering

• preconditioning: acc. to JEDEC Level 2

• method of packing: 4 reels with 3,000/reel,

ø180 mm

• ESD-withstand voltage: sensitive device

• Superior Corrosion Robustness:

details see page 18

Applications

• Indoor Video Walls

• full color display

• LED chips can be controlled separately to

display various colors including white
