Data Sheet
ADRF6510
Rev. B | Page 13 of 32
450
350
0
5
10
15
20
25
30
FREQUENCY (MHz)
360
370
380
390
400
410
420
430
440
10
–40
–35
–30
–25
–20
–15
–10
–5
0
5

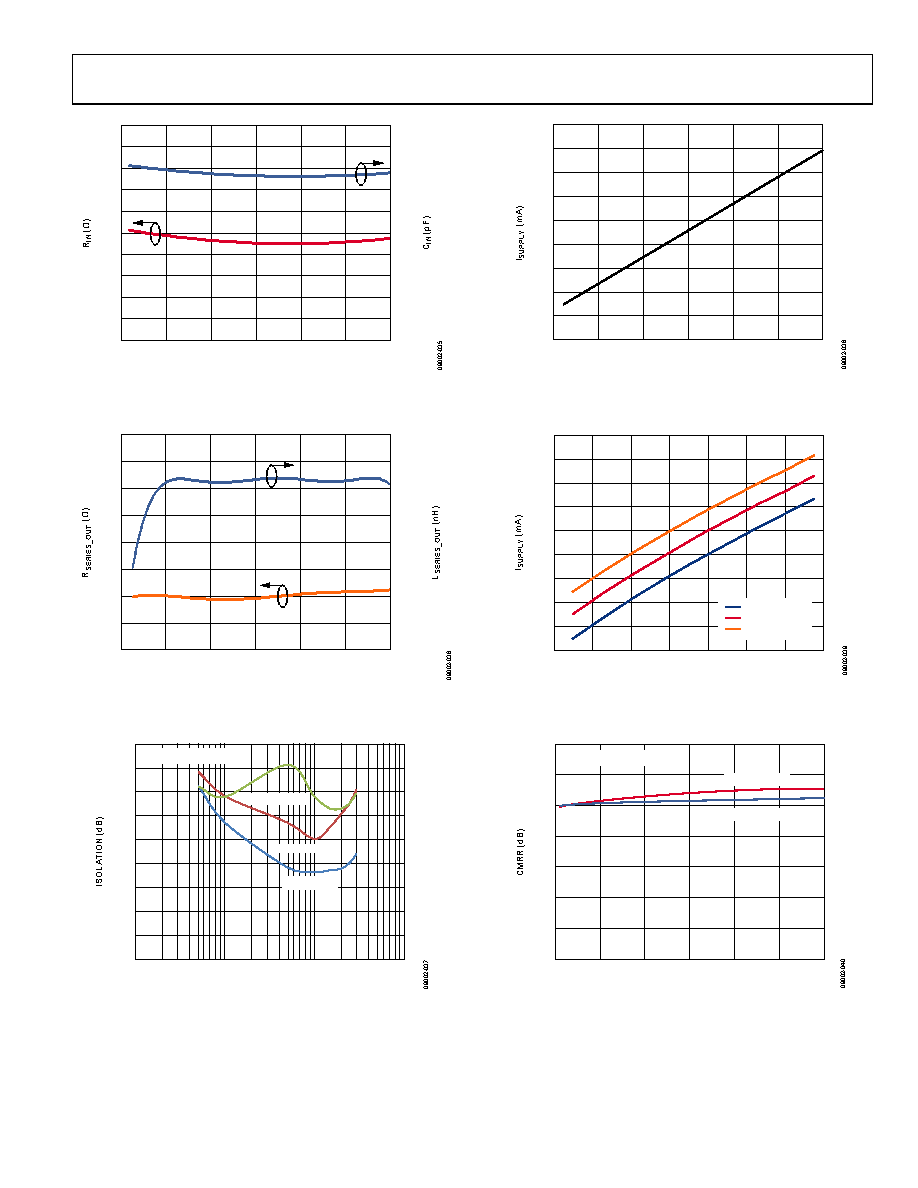

Figure 35. Input Impedance vs. Frequency (Bandwidth Setting = 30 MHz)
28
27
26
25
24
23
22
21
20
200
100
0
–100
–200
–300
–400
–500
–600
0
30
FREQUENCY (MHz)
5
10
15
20
25
Figure 36. Output Impedance vs. Frequency (Bandwidth Setting = 30 MHz)
90
0
0.1
1
10
100
FREQUENCY (MHz)
10
20
30
40
50
60
70
80
BANDWIDTH = 30MHz
GAIN = 40dB
GAIN = 20dB
GAIN = 0dB
Figure 37. Channel Isolation, Output to Output, vs. Frequency
(Bandwidth Setting = 30 MHz)
280
260
240
220
200
180
160
100
120
140
0
5
10
15
20
25
30
BANDWIDTH SETTING (MHz)
Figure 38. Current Consumption vs. Bandwidth Setting (Gain = 20 dB)
266
264
248
250
252
254
256
258
260
262
–50
–30
–10
10
30
50
70
90
TEMPERATURE (°C)
VPS = 4.75V
VPS = 5V
VPS = 5.25V
Figure 39. Current Consumption vs. Temperature over Supply
(Bandwidth Setting = 30 MHz)
70
0
0
30
FREQUENCY (MHz)
10
20
30
40
50
60
5
10
15
20
25
BANDWIDTH = 30MHz
GAIN = 40dB
GAIN = 20dB
Figure 40. Common-Mode Rejection Ratio vs. Frequency
(Bandwidth Setting = 30 MHz)
