Page 1 of 2

Notes

A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.

B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled

to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp

The Big Deal

• Minimum loss pad

• Wideband coverage, DC to 3000 MHz

• Excellent VSWR

Product Overview

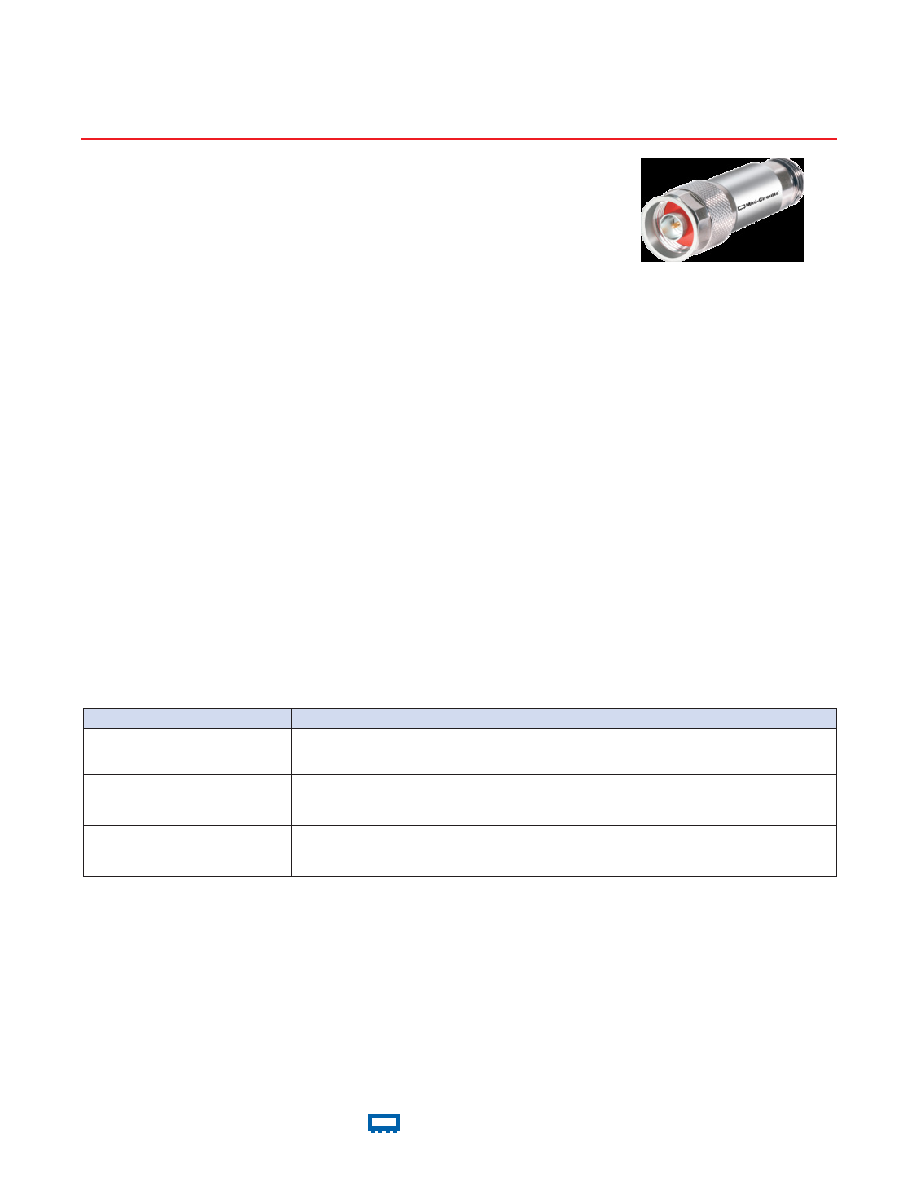

Mini-Circuits’ UNMP-R5075-33+ is a coaxial 50/75Ω matching pad covering the DC to 3000 MHz frequency range,

supporting impedance matching in a wide range of systems. This model is ideal for 50/75Ω impedance matching in

systems where minimizing overall signal loss is a priority. The matching pad housed in a rugged unibody construc-

tion with N-Male (50Ω) to N-Female (75Ω) connectors.

Feature

Advantages

Wideband, DC to 3000 MHz

Supports a wide variety of applications including CATV and DOCSIS® 3.1 systems and equipment.

Compact size, 0.68” x 2.11” x 0.71”

Accommodates tight space requirements for crowded system layouts.

Connectorized package N-Male

(50Ω) to N-Female (75Ω) connectors Supports connections between components with different connector types.

Key Features

UNMP-R5075-33+

50/75Ω

DC to 3000 MHz

CASE STYLE:

FF779

Matching Pad

Coaxial
