OU T PU T S DELAY

Large in-rush currents will occur when the system activates all the outputs at once. To reduce this effect, L16B06

is designed to have a constant unit of delay (around 5ns) between outputs. The delay sequence for every output

goes like this: OUT0 (no delay)

→ OUT15 → OUT1 → OUT14 → OUT2 → OUT13 → OUT3 → OUT12 → OUT4 →

OUT11

→ OUT5 → OUT10 → OUT6 → OUT9 → OUT7 → OUT8 (the largest delay).



GLOBAL BRI GH T N ESS CON T ROL

L16B06

has no built-in global brightness control feature. In order to obtain a lower resolution of global brightness

control effect, two methods could be utilized. One is providing PWM signal synchronized on latch pulse to modulate

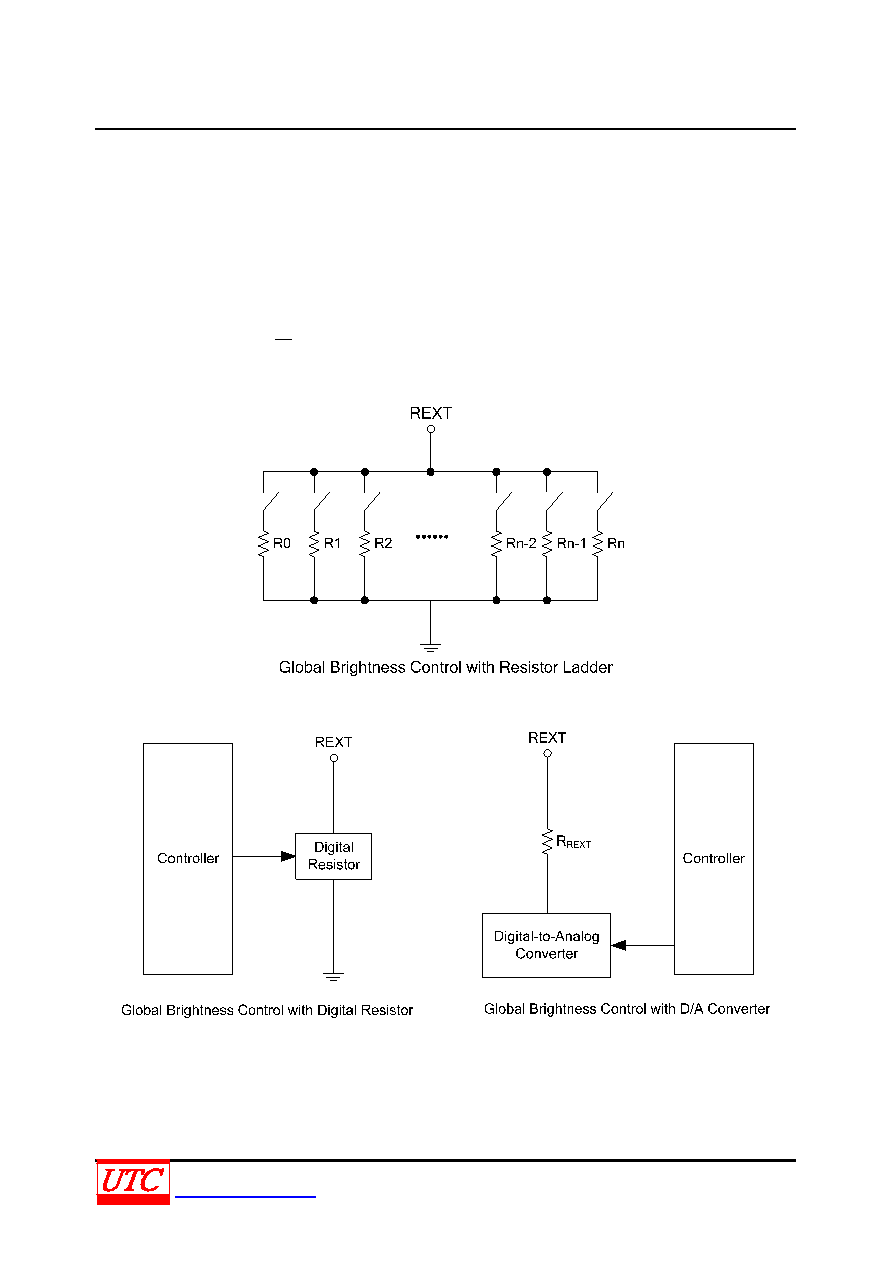

resistor. Please see the reference circuit below:
