FP6121-RWDG 数据表(PDF) 6 Page - Fitipower Integrated Technology Inc.

部件名 FP6121-RWDG
功能描述  300mA, High PSRR, Dual Output Low-Dropout Regulator
PDF  12 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  FITIPOWER [Fitipower Integrated Technology Inc.]
网页  http://www.fitipower.com/en_US/index.asp
标志 FITIPOWER - Fitipower Integrated Technology Inc.

FP6121-RWDG 数据表(HTML) 6 Page - Fitipower Integrated Technology Inc.

Back Button FP6121-RWDG Datasheet HTML 2Page - Fitipower Integrated Technology Inc. FP6121-RWDG Datasheet HTML 3Page - Fitipower Integrated Technology Inc. FP6121-RWDG Datasheet HTML 4Page - Fitipower Integrated Technology Inc. FP6121-RWDG Datasheet HTML 5Page - Fitipower Integrated Technology Inc. FP6121-RWDG Datasheet HTML 6Page - Fitipower Integrated Technology Inc. FP6121-RWDG Datasheet HTML 7Page - Fitipower Integrated Technology Inc. FP6121-RWDG Datasheet HTML 8Page - Fitipower Integrated Technology Inc. FP6121-RWDG Datasheet HTML 9Page - Fitipower Integrated Technology Inc. FP6121-RWDG Datasheet HTML 10Page - Fitipower Integrated Technology Inc. Next Button
Zoom Inzoom in Zoom Outzoom out
 6 / 12 page
background image
6
FP6121-3.5-DEC-2013
FP6121
fitipower integrated technology lnc.

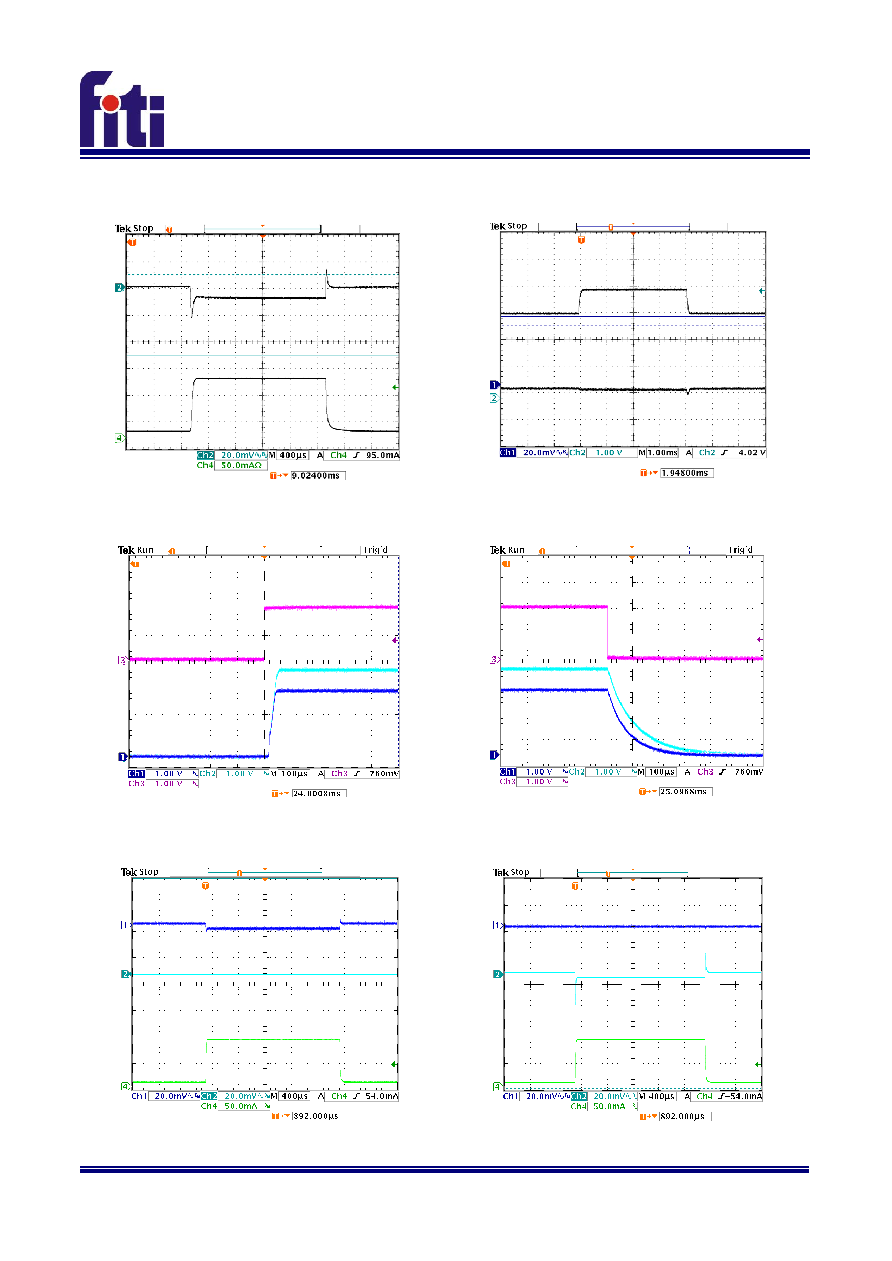

Typical Performance Curves
Figure 4. Load Transition Response
(VIN=2.8V, VOUT=1.8V)
Figure 5. Line Transition Response
(VOUT=1.8V, IOUT=10mA)
Figure 6. Enable Test
(VIN=4V, VOUT1=3.3V, VOUT2=2.8V, IOUT=30mA)
Figure 7. Shutdown Test
(VIN=4V, VOUT1=3.3V, VOUT2=2.8V, IOUT=30mA)
Figure 8. Dual Channel Crosstalk Test
Figure 9. Dual Channel Crosstalk Test
VOUT1=2.8V
VOUT2=1.2V
VOUT1=2.8V
VOUT2=1.2V
IOUT1=100mA
IOUT2=100mA
VOUT
IOUT=0100mA
VOUT
VIN=3V 4V
VOUT1
VOUT2
VEN1 =VEN2
VEN1 = VEN2
VOUT1
VOUT2
