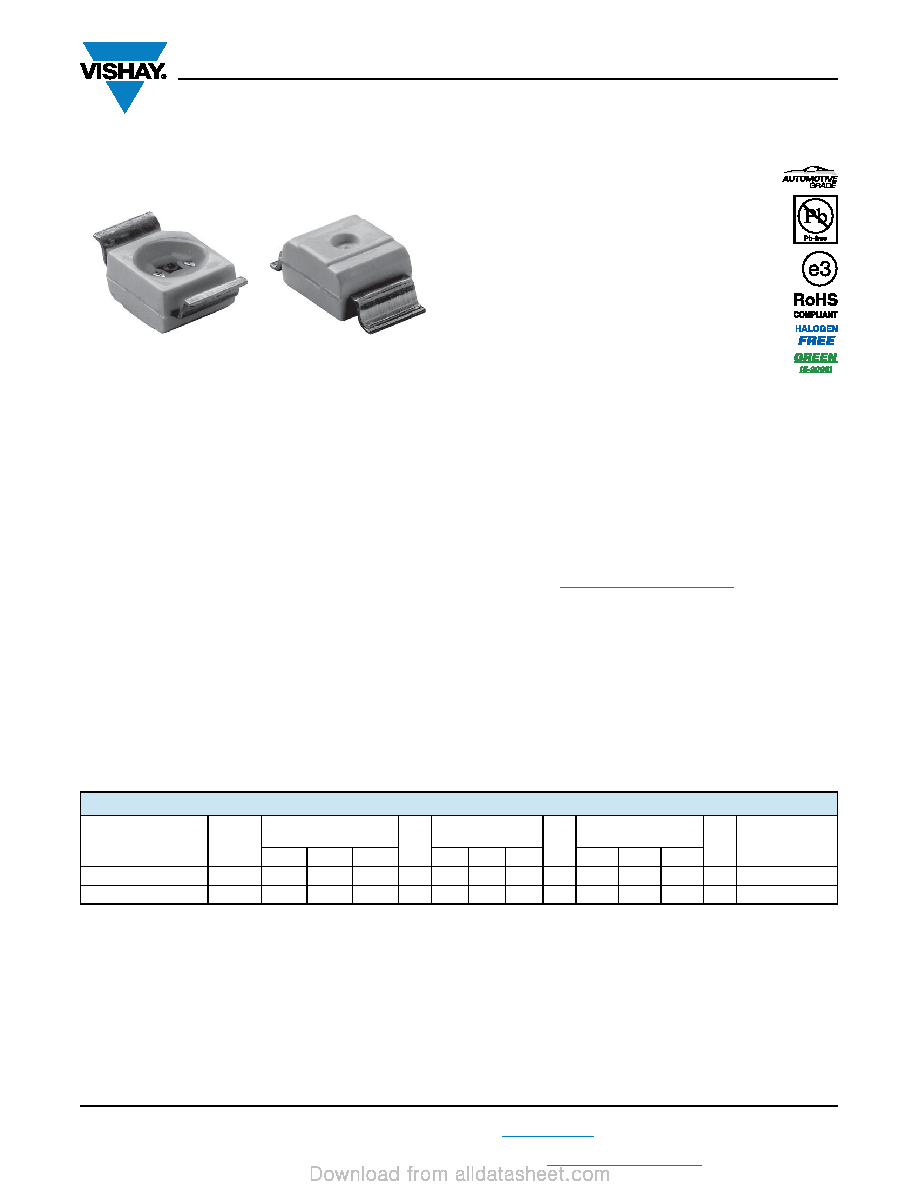

VLRK31R1S2, VLRK31Q1R2

www.vishay.com

Vishay Semiconductors

Rev. 1.5, 13-Aug-2018

1

Document Number: 81778

For technical questions, contact: LED@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Reverse Gullwing SMD LED Red

DESCRIPTION

This device has been designed to meet the increasing

demand for AlInGaP technology.

It consists of a lead frame which is embedded in a white

thermoplast. The reflector inside this package is filled up

with clear epoxy.

LED is mounted top down and emits through the PCB.

PRODUCT GROUP AND PACKAGE DATA

• Product group: LED

• Package: SMD reverse gullwing

• Product series: standard

• Angle of half intensity: ± 60°

FEATURES

• SMD LED with exceptional brightness

• Luminous intensity categorized

• Compatible

with

automatic

placement

equipment

• EIA and ICE standard package

• Compatible with IR reflow, vapor phase

and wave solder processes according to

CECC 00802 and J-STD-020C

• Available in 12 mm tape

• Low profile package

• Non-diffused lens: Excellent for coupling to light pipes and

backlighting

• Low power consumption

• Luminous

intensity

ratio

in

one

packaging

unit

IVmax./IVmin. > 1.6

• Preconditioning according to JEDEC® level 2a

• ESD-withstand voltage: up to 2 kV according to

JESD22-A114-B

• AEC-Q101 qualified

• Material categorization: for definitions of compliance

please see www.vishay.com/doc?99912

APPLICATIONS

• Automotive: backlighting in dashboards and switches

• Telecommunication:

indicator

and

backlighting

in

telephone and fax

• Indicator and backlight for audio and video equipment

• Indicator and backlight in office equipment

• Flat backlight for LCDs, switches, and symbols

• General use

20857

PARTS TABLE

PART

COLOR

LUMINOUS INTENSITY

(mcd)

at IF

(mA)

WAVELENGTH

(nm)

at IF

(mA)

FORWARD VOLTAGE

(V)

at IF

(mA)

TECHNOLOGY

MIN.

TYP.

MAX.

MIN. TYP. MAX.

MIN.

TYP.

MAX.

VLRK31R1S2-GS08

Red

112

-

285

20

620

630

635

20

-

2.1

2.3

20

AlInGaP on GaAs

VLRK31Q1R2-GS08

Red

71

-

180

20

620

630

635

20

-

2.1

2.3

20

AlInGaP on GaAs
