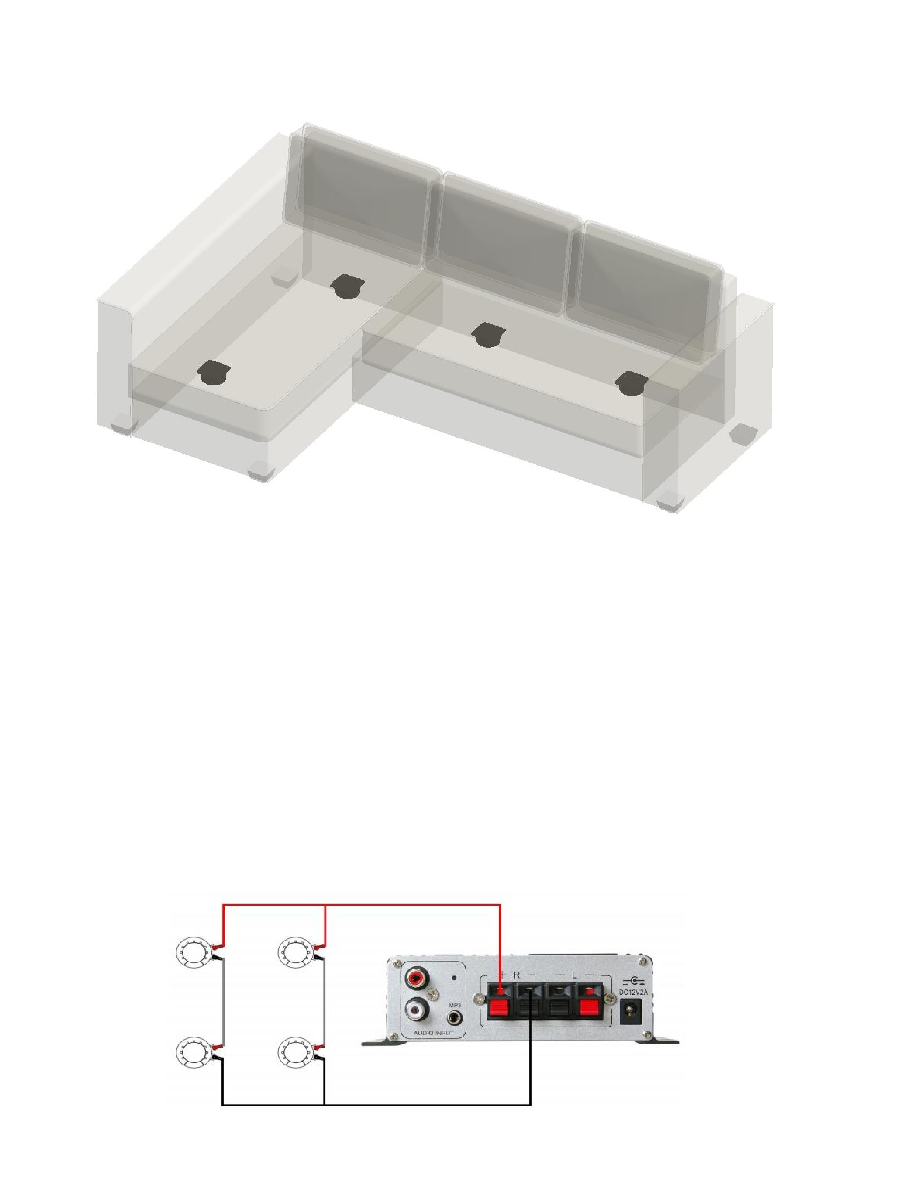

ASX11504-SW-R attached to a sofa for home theater applications

In some applications, the eXciter may transmit sound through the furniture it is installed on.

If this occurs, place rubber bumpers under each foot on the piece of furniture for mechanical

isolation.

Wiring and Amplifier Connection

Ideally it is best to power each eXciter with a dedicated amplifier. If that is not possible, and

only one amplifier is available, we recommend ensuring the amplifier can provide adequate

power for the total number of eXciters being used.

In the sofa example above, four eXciters would need between 200 and 400 total watts. To

maintain a 4-ohm impedance to the amplifier, wire the eXciters series-parallel as shown

below. For best performance, the amplifier input should be connected to the LFE or

subwoofer channel of your receiver, PC, or signal source.
