Data Sheet

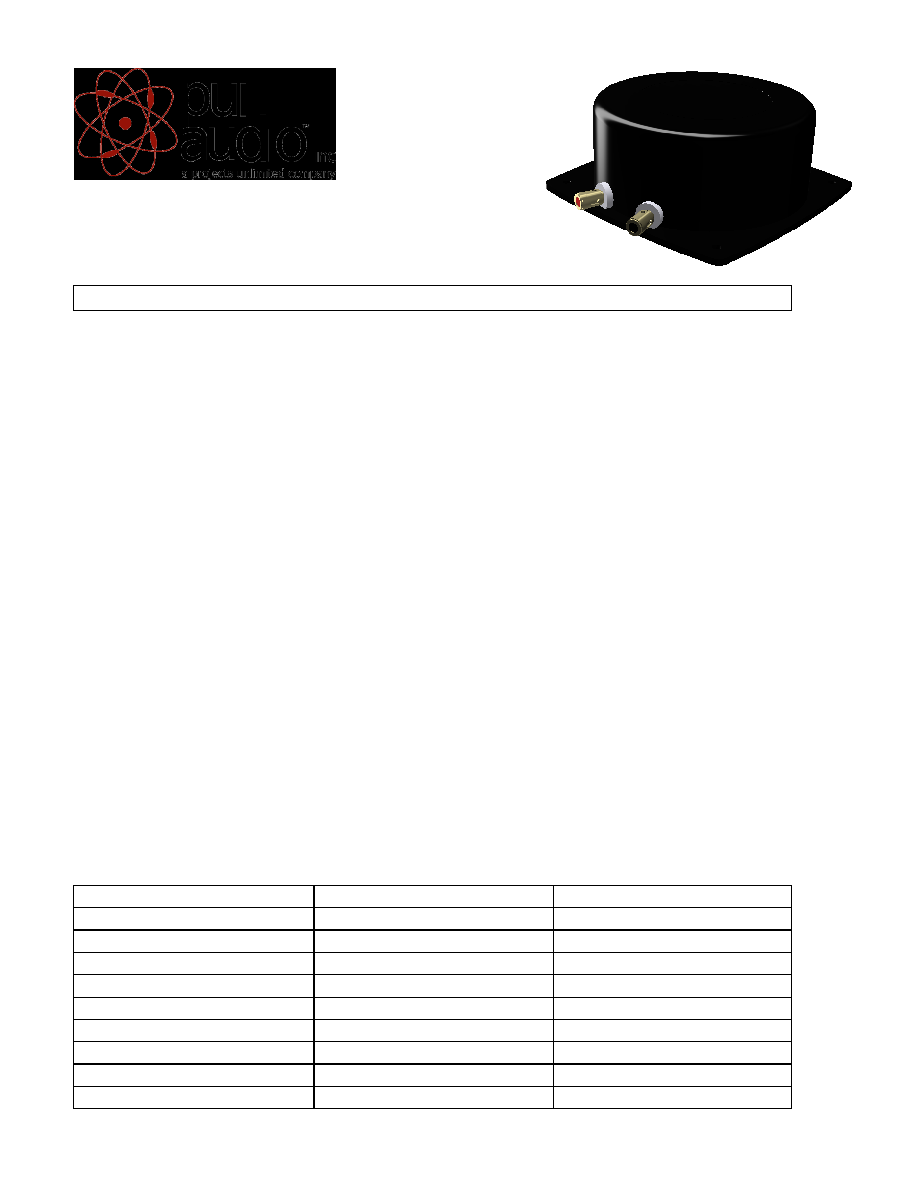

ASX11504-SW-R

PUI Audio’s ASX11504-SW-R silent subwoofer exciter, also referred to as a

tactile transducer, is purpose-built to recreate ultra-low frequencies from 500

Hz all the way down to 5 Hz! It delivers all the bass, without much space, and

with nearly none of the sound. Perfect for surround sound systems and gaming!

Instead of using a cone or diaphragm to move air, the electro-mechanical motor

is designed to directly couple to a surface (such as the frame of a chair or sofa) to

transmit vibrational energy from the motor into the mounting surface, exciting

deep tissue muscles (kinesthetic senses), skeletal nerve endings (haptic senses),

and transmitting sound through bone conduction.

Tactile transducers can also be used to replace vibrational motors in industrial

and medical applications where multi-frequency haptics are required.

Features:

•

Installs in minutes with spring-loaded push terminals and mounting holes

•

4 ohm impedance and high 50W continuous power rating

•

Creates bass without sound, perfect for home theater, industrial, and medical

applications

•

Able to create almost 90 Newtons of force

Specifications

Parameters

Values

Units

Rated Input Power

50

Watts

Max Input Power

100

Watts

Impedance

4 ± 15%

Ohms

Resonant Frequency

35± 20%

Hz

Frequency Range

5 ~ 500

Hz

Housing Material

Aluminum

-

Magnet Material

NdFeB

-

Weight

780

Grams

Operating Temperature

-20 ~ +60

°C
