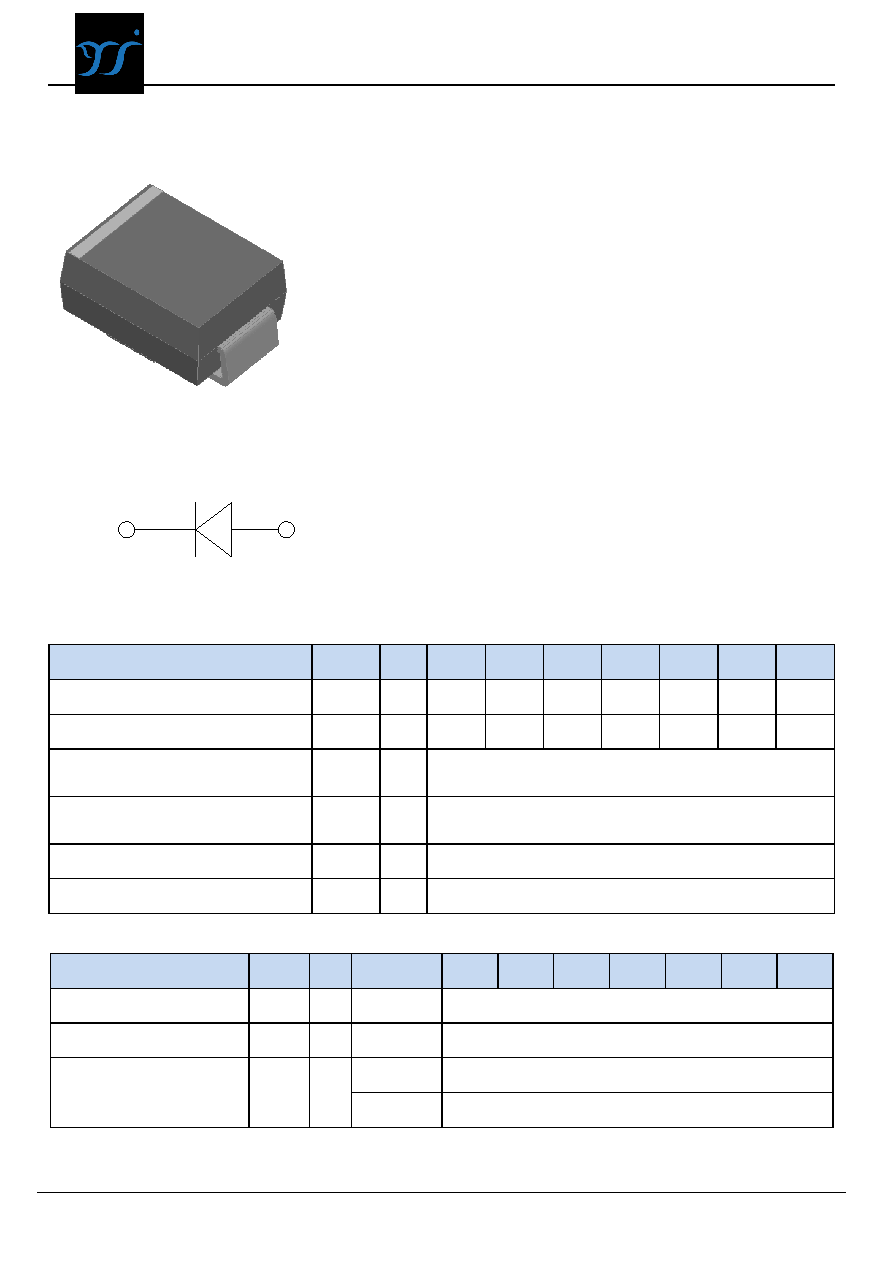

GS3ABQ THRU GS3MBQ

1 / 4

Yangzhou Yangjie Electronic Technology Co., Ltd.

S-S2801

Rev.1.1,15-Jun-20

www.21yangjie.com

Surface Mount General Purpose Rectifier

Features

● Low profile package

● Ideal for automated placement

● Glass passivated chip junction

● High forward surge capability

● Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

● Part no. with suffix “Q” means AEC-Q101 qualified

Typical Applications

For use in general purpose rectification of power

supplies, inverters, converters, and freewheeling diodes for

consumer, automotive and telecommunication.

Mechanical Data

● Package: DO-214AA (SMB)

Molding compound meets UL 94 V-0 flammability

rating, RoHS-compliant, halogen-free

● Terminals: Tin plated leads, solderable per

J-STD-002 and JESD22-B102

● Polarity: Cathode line denotes the cathode end

■Maximum Ratings (Ta=25℃ Unless otherwise specified）

PARAMETER

SYMBOL

UNIT

GS3ABQ GS3BBQ GS3DBQ GS3GBQ GS3JBQ GS3KBQ GS3MBQ

Device marking code

GS3AB

GS3BB

GS3DB

GS3GB

GS3JB

GS3KB

GS3MB

Repetitive peak reverse voltage

VRRM

V

50

100

200

400

600

800

1000

Average rectified output current

@60Hz sine wave, resistance load, TL (FIG.1)

IO

A

3.0

Surge(non-repetitive)forward current

@60Hz half-sine wave,1 cycle, Ta=25℃

IFSM

A

100

Storage temperature

Tstg

℃

-55~+150

Junction temperature

TJ

℃

-55~+150

■Electrical Characteristics（Ta=25℃ Unless otherwise specified）

PARAMETER

SYMBOL

UNIT

TEST

CONDITIONS

GS3ABQ GS3BBQ GS3DBQ GS3GBQ GS3JBQ GS3KBQ GS3MBQ

Maximum instantaneous

forward voltage drop per diode

VF

V

IFM=3.0A

1.15

Typical junction capacitance

CJ

pF

VR=4V,f=1 MHz

25

Maximum DC reverse current

at rated DC blocking voltage

per diode @ VRM=VRRM

IRRM

μA

Ta =25℃

5

Ta =125℃

100

COMPLIANT

RoHS
