8.14 WRITE ENABLE OPERATION (WREN, 06h)

The Write Enable (WREN) instruction is used to set the Write Enable Latch (WEL) bit. The WEL bit is reset to the

write-protected state after power-up. The WEL bit must be write enabled before any write operation, including

Sector Erase, Block Erase, Chip Erase, Page Program, Program Information Row, Write Status Register, Write

Function Register, Set non-volatile Read Register, Set non-volatile Extended Read Register, and Write Autoboot

will be reset to the write-protected state automatically upon completion of a write operation. The WREN instruction

is required before any above operation is executed.

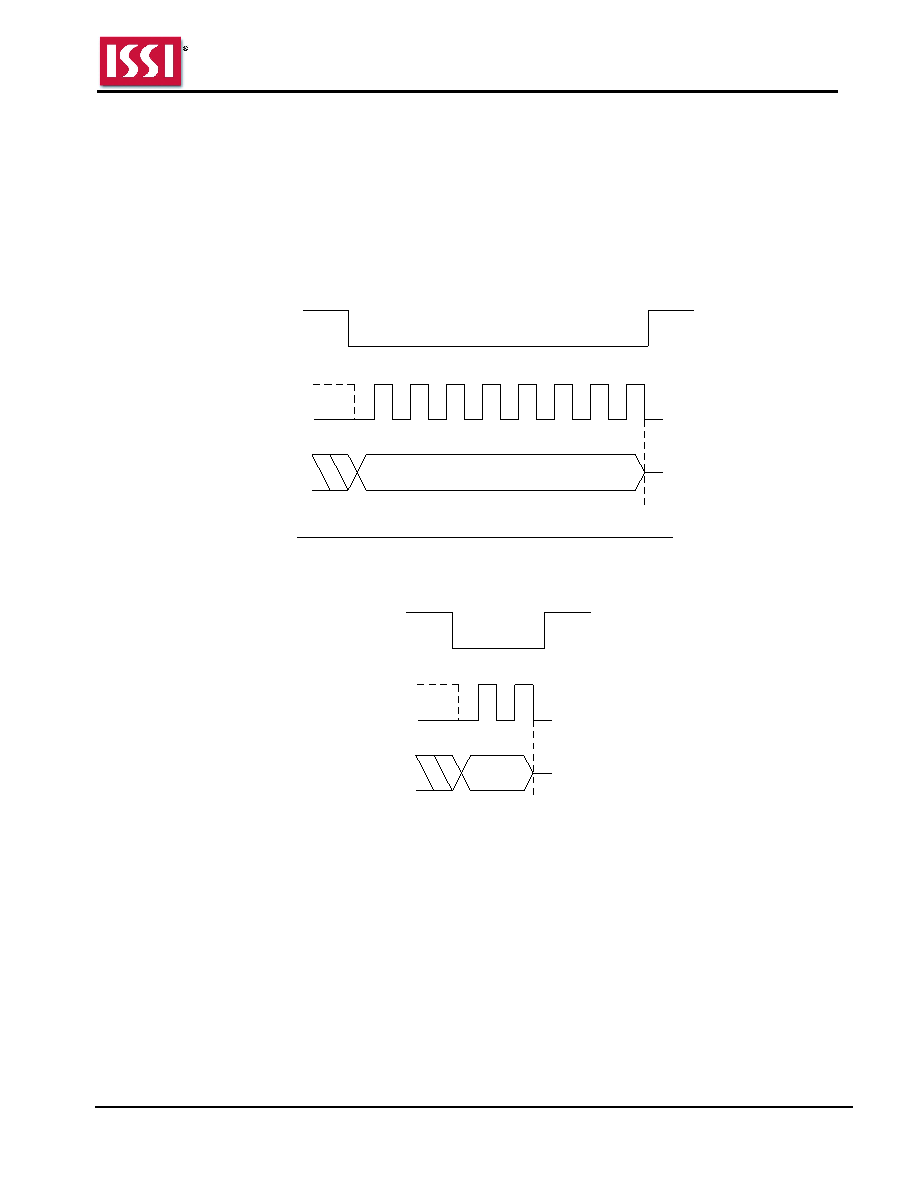

Figure 8.22 Write Enable Sequence In SPI Mode

Instruction = 06h

CE#

SCK

Mode 3

Mode 0

High Impedance

Figure 8.23 Write Enable Sequence In QPI Mode

06h

CE#

SCK

IO[3:0]

Mode 3

Mode 0
