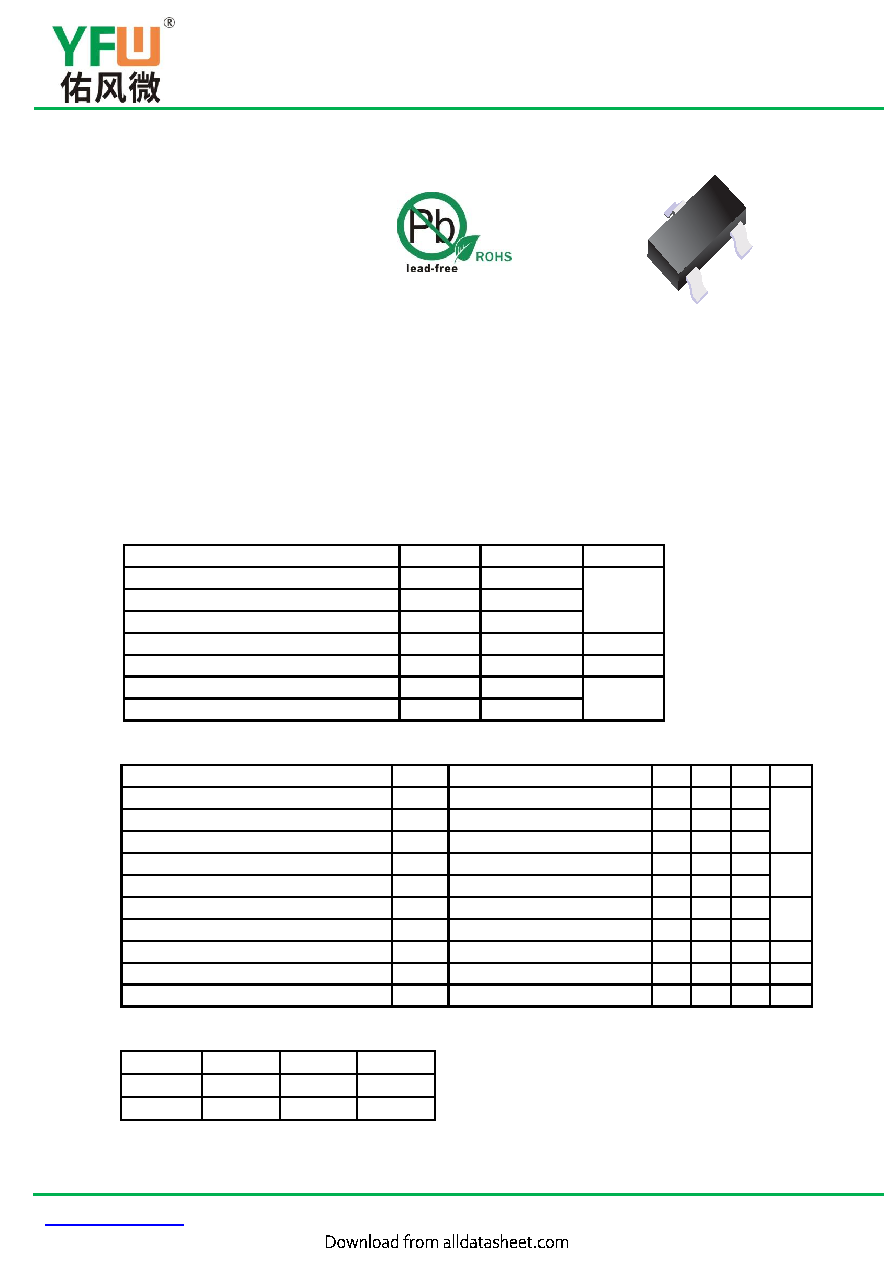

1 / 4 page

323

2SC4081 SOT-

1 / 4

www.yfwdiode.com

Dongguan YFW Electronics Co, Ltd.

■

Features

●

Low Cob. Cob=2.0pF (Typ.)

●

Complementary to 2SA1576A

■

Absolute Maximum Ratings Ta = 25℃

Parameter

Symbol

Rating

Unit

Collector - Base Voltage

VCBO

60

Collector - Emitter Voltage

VCEO

50

Emitter - Base Voltage

VEBO

7

Collector Current - Continuous

IC

150

mA

Collector Power Dissipation

PC

200

mW

Junction Temperature

TJ

150

Storage Temperature Range

Tstg

-55 to 150

V

℃

■

Electrical Characteristics Ta = 25℃

Parameter

Symbol

Test Conditions

Min

Typ

Max

Unit

Collector- base breakdown voltage

VCBO

Ic= 100 uA， IE= 0

60

Collector- emitter breakdown voltage

VCEO

Ic= 1 mA，IB= 0

50

Emitter - base breakdown voltage

VEBO

IE= 100μA， IC= 0

7

Collector-base cut-off current

ICBO

VCB= 60V , IE= 0

0.1

Emitter cut-off current

IEBO

VEB= 7V , IC=0

0.1

Collector-emitter saturation voltage

VCE(sat) IC=50 mA, IB=5mA

0.4

Base - emitter saturation voltage

VBE(sat) IC=50 mA, IB=5mA

1.2

DC current gain

hFE

VCE= 6V, IC= 1mA

120

560

Collector output capacitance

Cob

VCE= 12V, IE=0,f=1MHz

2

3.5

pF

Transition frequency

fT

VCE= 12V, IE=-2mA,f=100MHz

180

MHz

V

uA

V

■

Classification of hfe

Type

2SC4081-Q 2SC4081-R 2SC4081-S

Range

120-270

180-390

270-560

Marking

BQ

BR

BS

NPN Transistor

1

2

3

1.Base

2.Emitter

3.Collector

■

Simplified outline(SOT-323)

■
