ESD1811CDN 数据表(PDF) 6 Page - Shanghai Leiditech Electronic Technology Co., Ltd

部件名 ESD1811CDN
功能描述  LOW VOLTAGE BIDIRECTIONAL TVS DIODE
PDF  6 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  LEIDITECH [Shanghai Leiditech Electronic Technology Co., Ltd]
网页  http://www.leiditech.com
标志 LEIDITECH - Shanghai Leiditech Electronic Technology Co., Ltd

ESD1811CDN 数据表(HTML) 6 Page - Shanghai Leiditech Electronic Technology Co., Ltd

  ESD1811CDN Datasheet HTML 1Page - Shanghai Leiditech Electronic Technology Co., Ltd ESD1811CDN Datasheet HTML 2Page - Shanghai Leiditech Electronic Technology Co., Ltd ESD1811CDN Datasheet HTML 3Page - Shanghai Leiditech Electronic Technology Co., Ltd ESD1811CDN Datasheet HTML 4Page - Shanghai Leiditech Electronic Technology Co., Ltd ESD1811CDN Datasheet HTML 5Page - Shanghai Leiditech Electronic Technology Co., Ltd ESD1811CDN Datasheet HTML 6Page - Shanghai Leiditech Electronic Technology Co., Ltd
Zoom Inzoom in Zoom Outzoom out
 6 / 6 page
background image
Shanghai Leiditech Electronic Co.,Ltd
Email: sale1@leiditech.com
Tel : +86- 021 50828806
Fax : +86- 021 50477059

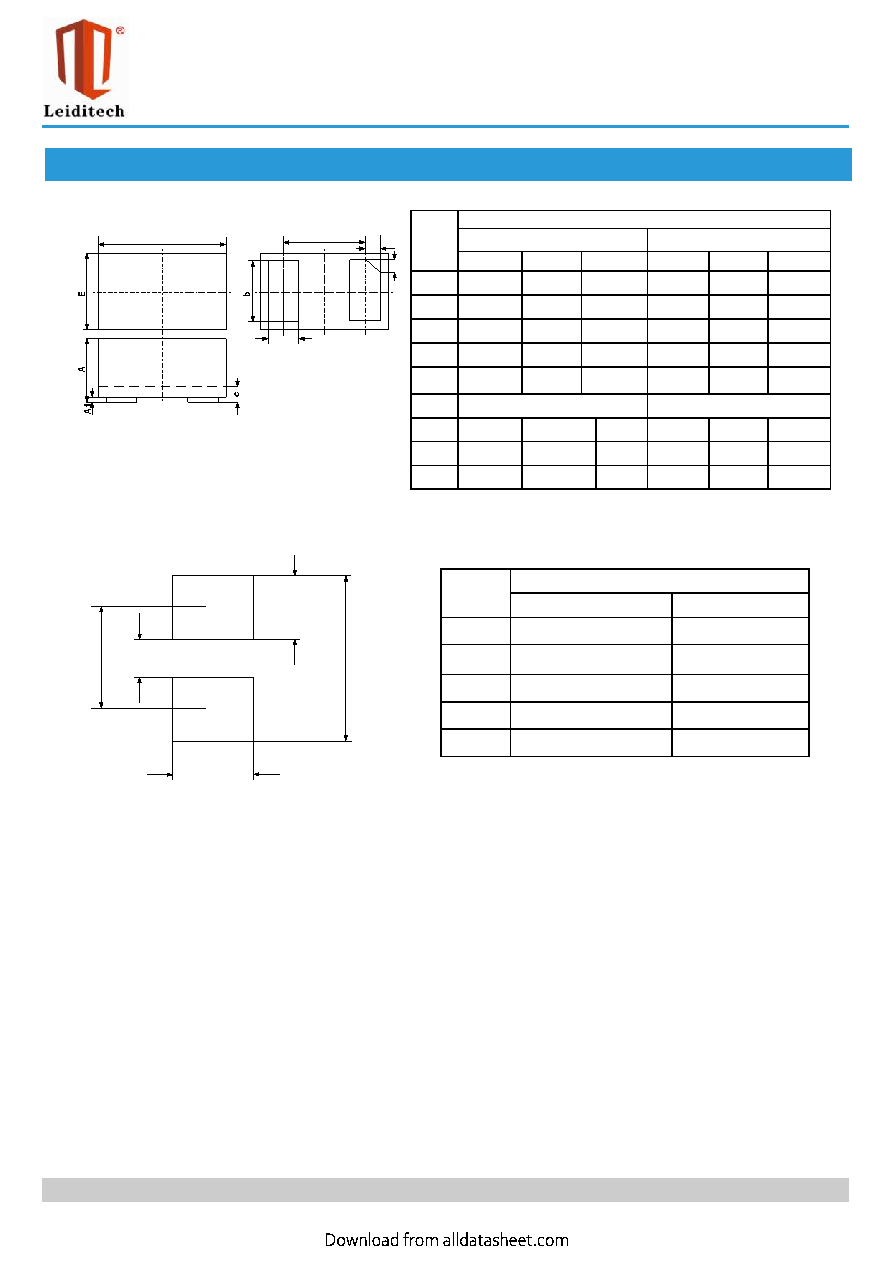

DFN1006
Suggested Land Pattern
SYM
DIMENSIONS
MILLIMETERS
INCHES
MIN
NOM
MAX
MIN
NOM
MAX
A
0.45
0.50
0.55
0.018
0.020
0.022
A1
0.00
0.02
0.05
0.000
0.001
0.002
b
0.45
0.50
0.55
0.018
0.020
0.022
c
0.12
0.15
0.18
0.005
0.006
0.007
D
0.95
1.00
1.05
0.037
0.039
0.041
e
0.65 BSC
0.026 BSC
E
0.55
0.60
0.65
0.022
0.024
0.026
L
0.20
0.25
0.30
0.008
0.010
0.012
h
0.07
0.12
0.17
0.003
0.005
0.007
-
D
L
-
e
h
h
Bottom View
SYM
DIMENSIONS
MILLIMETERS
INCHES
X
0.60
0.024
Y1
0.50
0.020
Y2
0.30
0.012
Y3
0.80
0.032
Z
1.30
0.052
╋
╋
Y1
Y2
Y3
X
Z
PACKAGE OUTLINE & DIMENSIONS
ESD1811CDN
Rev :
www.leiditech.com
01.06.2018
6/6



Html Pages

1 2 3 4 5 6


数据表 下载

Go To PDF Page


链接网址
