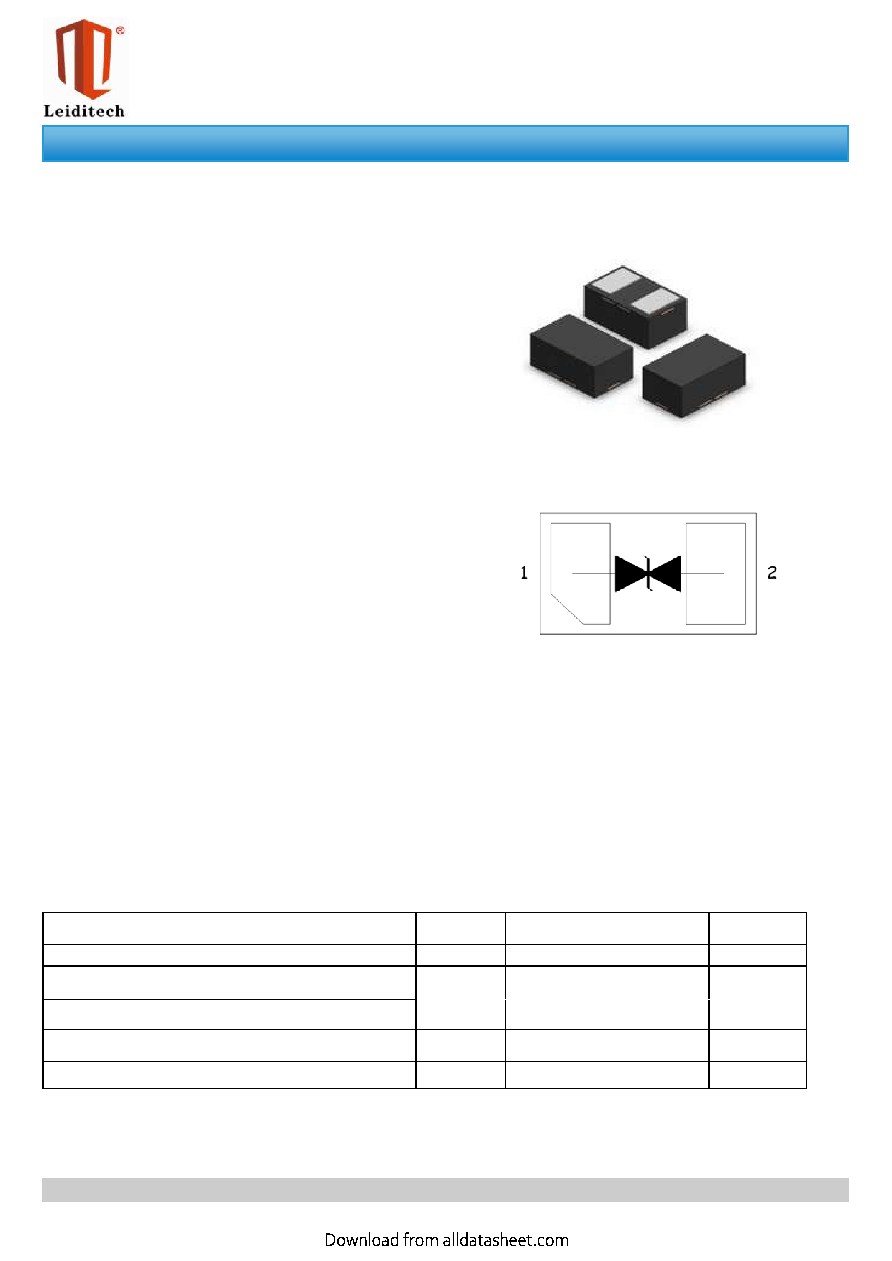

ESD1811CDN

Features

●

Applications

●

Dimensions DFN1006

Pin Configuration

Mechanical Characteristics

●

Absolute Maximum Ratings(Tamb=25°C unless otherwise specified)

Parameter

Symbol

Value

Unit

Peak Pulse Power (8/20µs)

Ppp

150

W

ESD per IEC 61000−4−2 (Air)

VESD

± 30

Kv

ESD per IEC 61000−4−2 (Contact)

± 30

Operating Temperature Range

TJ

-55 to +150

℃

Storage Temperature Range

TSTJ

-55 to +150

℃

LOW VOLTAGE BIDIRECTIONAL TVS DIODE

●

150 Watts Peak Pulse Power per Line (tp=8/20μs)

Protects One Bidirectional I/O Lines

Low Clamping Voltage

RoHS Compliant

IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)

IEC61000-4-4 (EFT) 40A (5/50ηs)

IEC61000-4-5 (LIGHTING) 18A (8/20μs)

●

Cellular Handsets & Accessories

Keypads, Side Keys, Audio Ports

Portable Instrumentation'

Notebooks, Desktops, and Servers

Digital Lines

Tablet PC

DFN1006 Package

Molding Compound Flammability Rating : UL 94V-O

Weight 0.5 Millgrams (Approximate)

Reel Size : 7 inch

Lead Finish : Lead Free

Rev :

www.leiditech.com

01.06.2018

1/6
