MODEL: MFS

MFS SPECIFICATIONS

ES-1379 Rev.13 Page 4/5

http://www.m-system.co.jp/

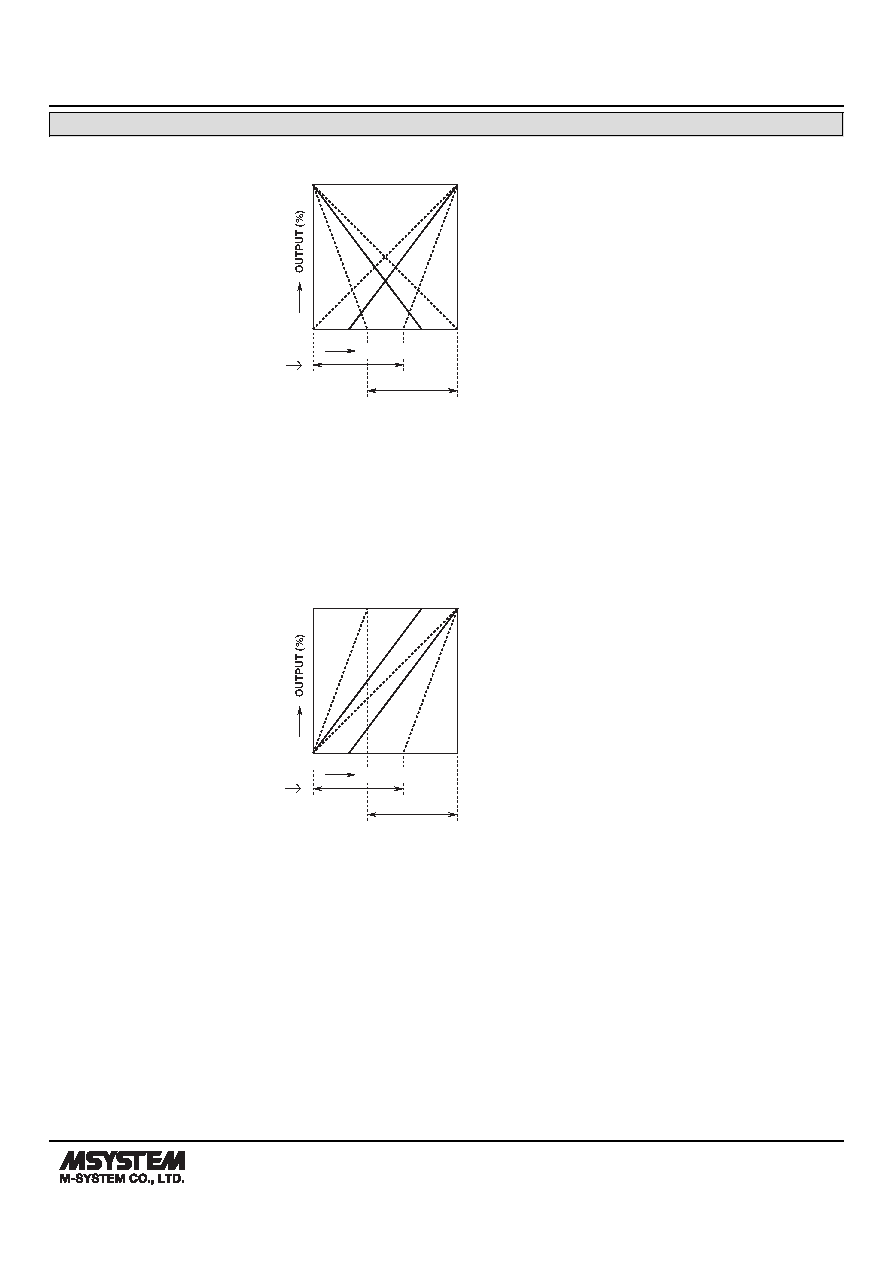

OPERATION DIAGRAM

100

0

0

62.5

100

37.5

INPUT (%)

A

A’

B’

B

Limit of Input Range Adjustment (0 – 62.5%)

for 0% Output 1 (Direct Acting)

Limit of Input Range Adjustment (37.5 – 100%)

for 0% Output 2 (Direct Acting)

SOLID LINE : example of I/O characteristics

BROKEN LINE : limit of adjustable range

POINT A : input set for 0% Output 1

LINE A - A

POINT B : input set for 100% Output 2

LINE B - B

CAUTION

Output is not forcibly limited within 0 to 100%.

100

0

0

62.5

100

37.5

INPUT (%)

A

A’

B

B’

Limit of Input Range Adjustment (0 – 62.5%)

for 0% Output 1 (Direct Acting)

Limit of Input Range Adjustment (37.5 – 100%)

for 0% Output 2 (Reverse Acting)

SOLID LINE : example of I/O characteristics

BROKEN LINE : limit of adjustable range

POINT A : input set for 0% Output 1

LINE A - A

POINT B : input set for 0% Output 2

LINE B - B

CAUTION

Output is not forcibly limited within 0 to 100%.

■ V-SHAPE CHARACTERISTICS (model: MFS-V)

•Input Range Adjustment

1. For current output, connect an ammeter to output 1 monitor terminals.

Current signal is measured at both ends of a diode inserted in series to the output 1 driver.

Input resistance of the ammeter must be 10Ω at the maximum to ensure accurate measurement.

For voltage output, connect a voltmeter across the common and output 1 monitor (+) terminals.

2. Apply an input signal desired for 0% output. (within 0 – 62.5%)

3. Turn output 1 adjustment until 0% output is monitored.

4. Adjust output 2 the same way as output 1. Allowable input range for 0% output is 37.5 – 100%.

Input signals for 100% output are fixed to 100% for output 1, 0% for output 2.

■ PARALLEL CHARACTERISTICS (model: MFS-P)

•Input Range Adjustment

1. For current output, connect an ammeter to output 1 monitor terminals.

Current signal is measured at both ends of a diode inserted in series to output 1 driver.

Input resistance of the ammeter must be 10Ω at the maximum to ensure accurate measurement.

For voltage output, connect a voltmeter across the common and output 1 monitor (+) terminals.

2. Apply an input signal desired for 0% output. (within 0 – 62.5%)

3. Turn output 1 adjustment until 0% output is monitored.

Proceed to output 2 adjustment.

4. Connect an ammeter or voltmeter to output 2 monitor terminal.

5. Apply input signal required for 100% output. (within 37.5 – 100%)

6. Turn output 2 adjustment until 100% output is monitored.

For output 1, input signal for 100% output is fixed to 100%, while for output 2, input signal for 0% output is fixed to 0%.

←

←
