MODEL: 47NLDY

47NLDY SPECIFICATIONS

ES-9567 Rev.2 Page 3/4

https://www.m-system.co.jp/

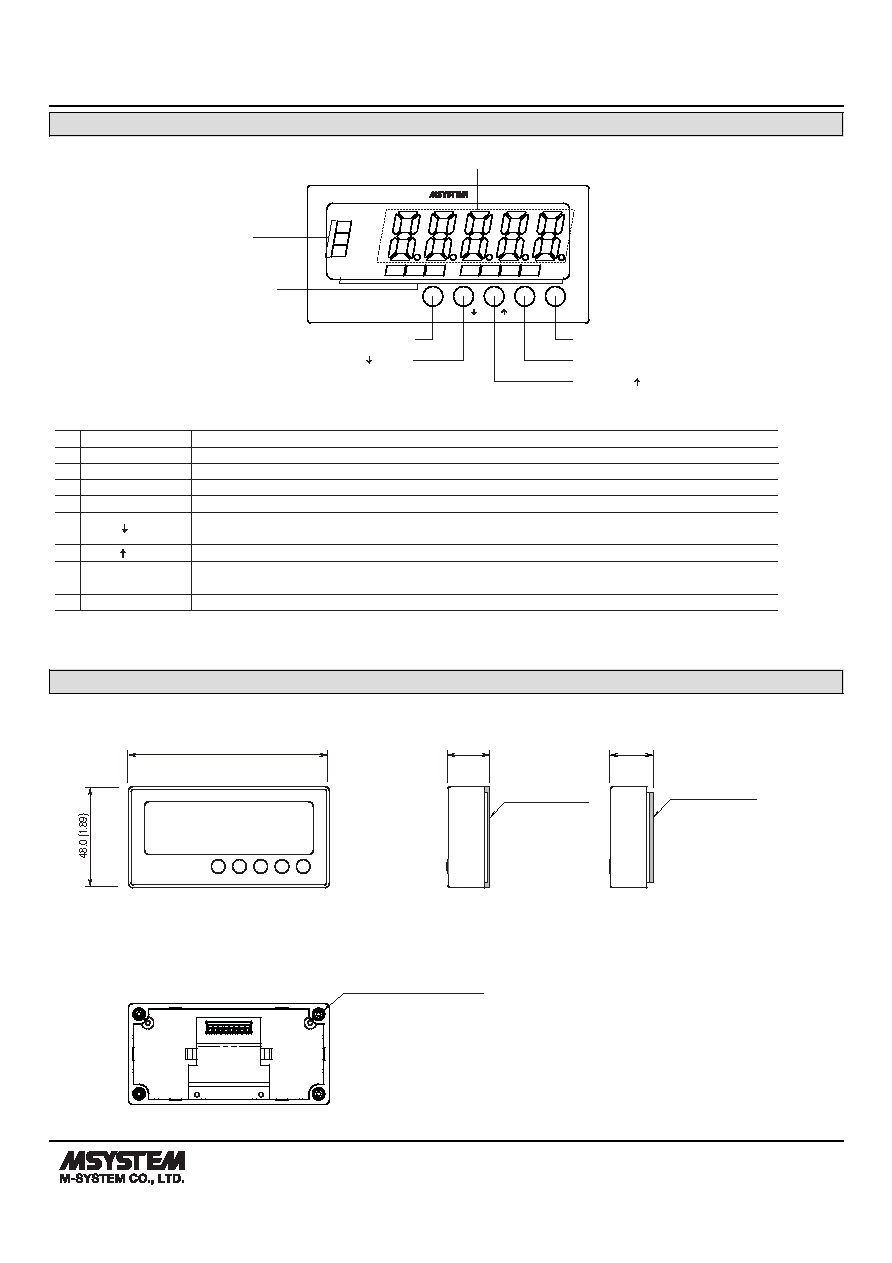

EXTERNAL VIEW

Alarm /

Max /Min

Scale /

Shift

Up

H

P

L

D/P

Spn

Zro

Tch

Max

Min

Fnc

(4) Max/Min Button

(7) Shift Button

(8) Up Button

(1) Main Display

(3) Function Indicators

(2) Alarm Indicators

(6) Scale/

Button

(5) Alarm/

Button

■ COMPONENT IDENTIFICATION

No.

COMPONENT

FUNCTION

(1) Main display

Indicates present values, setting values and status of the unit.

(2) Alarm indicators

Indicates the comparison result between alarm setting values and present values.

(3) Function indicators Indicates the status in each setting mode.

(4) Max/Min button

Used to switch the main display to show the present values, maximum values or minimum values.

(5) Alarm/

button

Used to check the alarm setpoints, to move on to the alarm and other setting modes; or to shift through setting

items in each setting mode.

(6) Scale/

button

Used to move on to the scaling and other setting modes; or to shift through setting items in each setting mode.

(7) Shift button

Used to move on to the setting standby status of each setting mode or to shift through display digits in each

setting item.

(8) Up button

Used to change setting values, to execute/cancel Forced Zero or to select setting values.

Note: Refer to the operating manual for details on each function.

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

96.0 (3.78)

20.0(.79)

■ FRONT VIEW

■ REAR VIEW

■ SIDE VIEW

• SCREW MOUNTING

• MAGNET MOUNTING

Watertight packing

20.0(.79)

Magnet label sheet

1 2 3 4 5 6 7 8
