MODEL: 47NLDY

47NLDY SPECIFICATIONS

ES-9567 Rev.2 Page 4/4

https://www.m-system.co.jp/

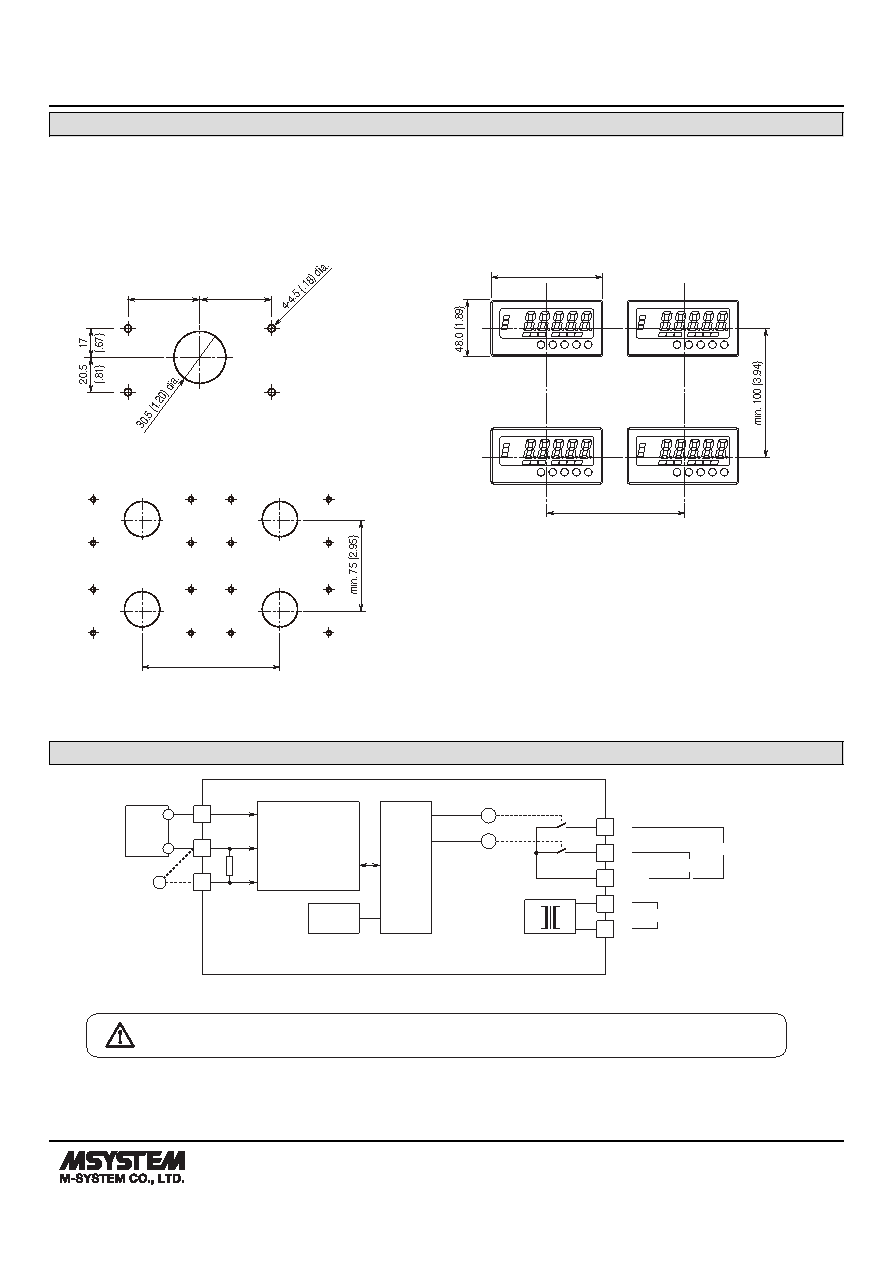

MOUNTING REQUIREMENTS unit: mm (inch)

■ PANEL MOUNTING

  (Conform to degree of protection IP66)

Panel cutout must be such as M-System specified. Use

watertight packing and unit fixing screws included in the

product package.

42.25 (1.66)

42.25 (1.66)

• Single Mounting unit: mm (inch)

■ MAGNET MOUNTING

  (Not conform to degree of protection IP66)

Panel cutout is not required. Use magnet sheet and stopper

included in the product package.

• Clustered Mounting unit: mm (inch)

• Clustered Mounting unit: mm (inch)

96.0 (3.78)

min. 120 (4.72)

min.120 (4.72)

Panel thickness: 1.0 to 3.2 mm

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

24V DC Supply

A/D Converter

Shortcircuit Portection

1

2

3

Digital

Computation

Display /

Setting

2-WIRE

TRANSMITTER

+

–

250Ω

+

(1 – 5V DC)

MONITOR

7

8

POWER

4

5

6

Ry

Ry

H

COM

L

L OUTPUT

H OUTPUT

+

–

Specifications are subject to change without notice.
