Data Sheet
ADL5369
Rev. A | Page 9 of 23
IF Frequency
VS = 5 V, IS = 84 mA, TA = 25°C, fRF = 450 MHz, fLO = 543 MHz, LO power = 0 dBm, VGS0 = VGS1 = 0 V, R9 = 1.7 kΩ, and ZO = 50 Ω, unless
otherwise noted.
0.070
0.075
0.080
0.085
0.090
0.095
0.100
30
80
130
180
230
280
330
380
430
IF FREQUENCY (MHz)
–40°C
+25°C
+85°C

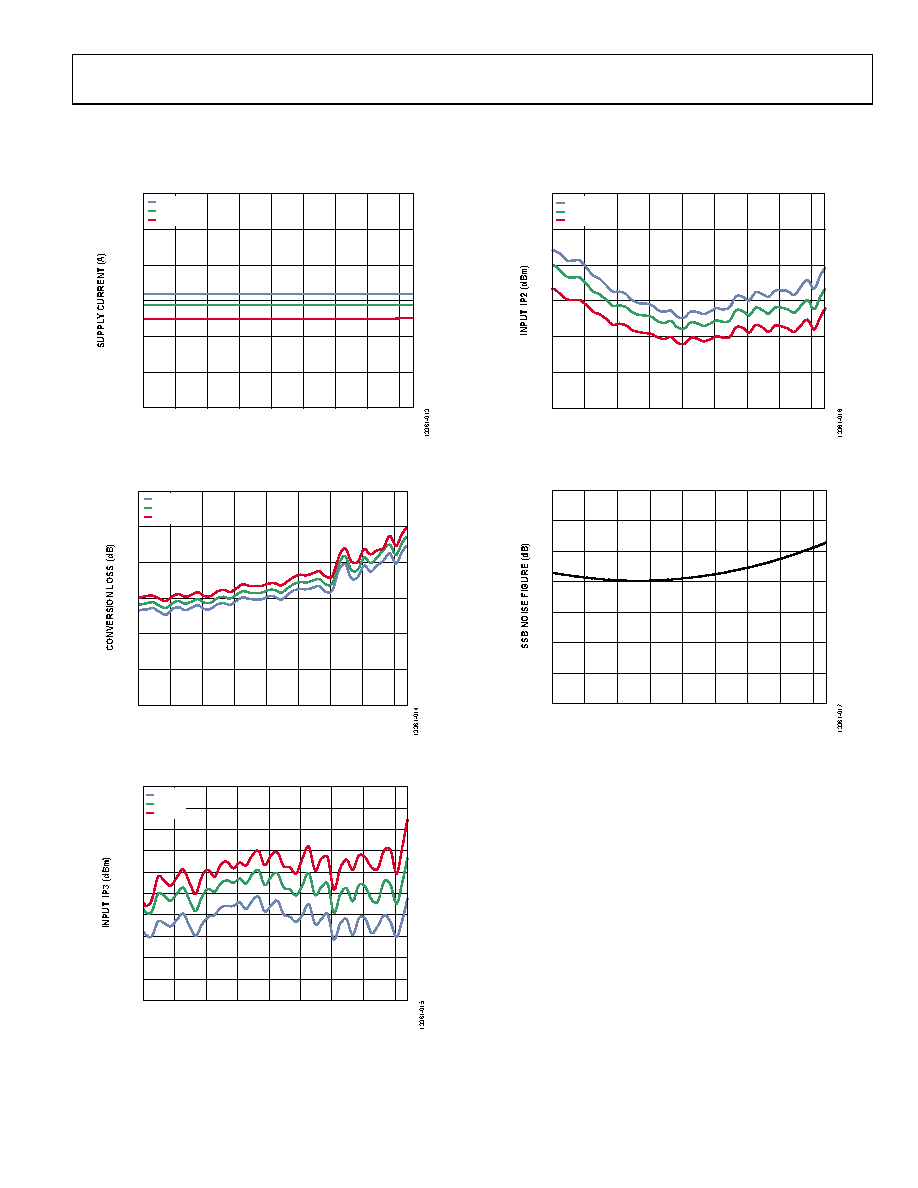

Figure 13. Supply Current vs. IF Frequency
0
2
4
6
8
10
12
30
80
130
180
230
280
330
380
430
IF FREQUENCY (MHz)
–40°C
+25°C
+85°C
Figure 14. Power Conversion Loss vs. IF Frequency
21.0
21.5
22.0
22.5
23.0
23.5
24.0
24.5
25.0
25.5
26.0
30
80
130
180
230
280
330
380
430
IF FREQUENCY (MHz)
–40°C
+25°C
+85°C
Figure 15. Input IP3 vs. IF Frequency
35
40
45
50
55
60
65
30
80
130
180
230
280
330
380
430
IF FREQUENCY (MHz)
–40°C
+25°C
+85°C
Figure 16. Input IP2 vs. IF Frequency
0
2
4
6
8
10
12
14
30
80
130
180
230
280
330
380
430
IF FREQUENCY (MHz)
Figure 17. SSB Noise Figure vs. IF Frequency
