POE-D10-00-E-13

SAFETY STANDARDS REGULATED, REINFORCED

INSULATION TYPE, AH SERIES

Ver: 13

Page: 13 / 18

No

Items

Performance

Testing method

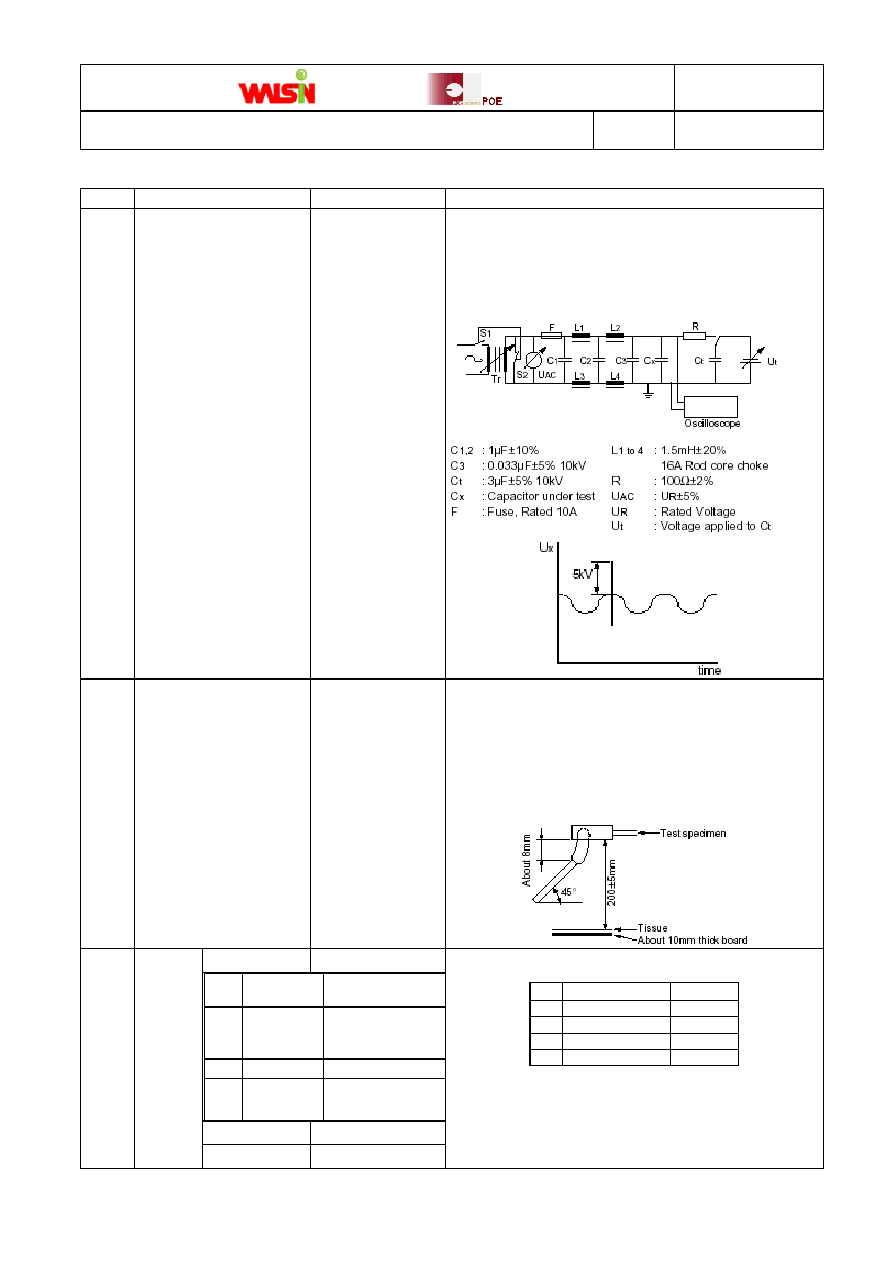

7.3.16

Active

Flammability

The cheesecloth shall

not be on fire.

The specimens shall be individually wrapped in at least one but

more than two complete layers of cheesecloth. The specimens shall

be subjected to 20 discharges. The interval between successive

discharges shall be 5 sec. The UAC shall be maintained for 2 min

after the last discharge.

Fig. 6

7.3.17

Passive Flammability

The burning time

shall not be exceeded

the time 30 sec. The

tissue paper shall not

ignite.

The capacitor under test shall be held in the position which best

promotes burning. Each specimen shall only be exposed once to

flame. Time of exposure to flame: 30sec.

Length of flame : 12±1mm

Gas burner : Length 35mm min.

Inside Dia. : 0.5±0.1mm

Outside Dia. : 0.9mm max.

Gas : Butane gas Purity 95% min.

Fig. 7

Appearance

No marked defect

Char. Cap.

Change

DF / Q

SL,

CH

≦±5%

Q≧275+5/2C

(C

＜30pF)

Q≧350 (C≧30pF)

Y5P

≦±10%

DF

5.0%

≦

Y5U

&

Y5V

≦±20%

DF

7.5%

≦

I.R.

3000M

min.

7.3.18

Temperat

ure Cycle

Dielectric strength Per Item 7.3.3

The capacitor should be subjected to 5 temperature cycles,

<Temperature Cycle time: 5cycles>

Step

Temperature(℃)

Time(min)

1

-40+0/-3

30

2

Room temp.

3

3

125+3/-0

30

4

Room temp.

3

Pre-treatment:

Capacitor shall be stored at 85±2℃ for 1hour.then placed at

※

Post-treatment:

Capacitor shall be stored for 1 to 2hours at

1

※ "room condition" Temperature:15~35, Relative humidity: 45~75%, Atmospheric pressure:86~106kPa
