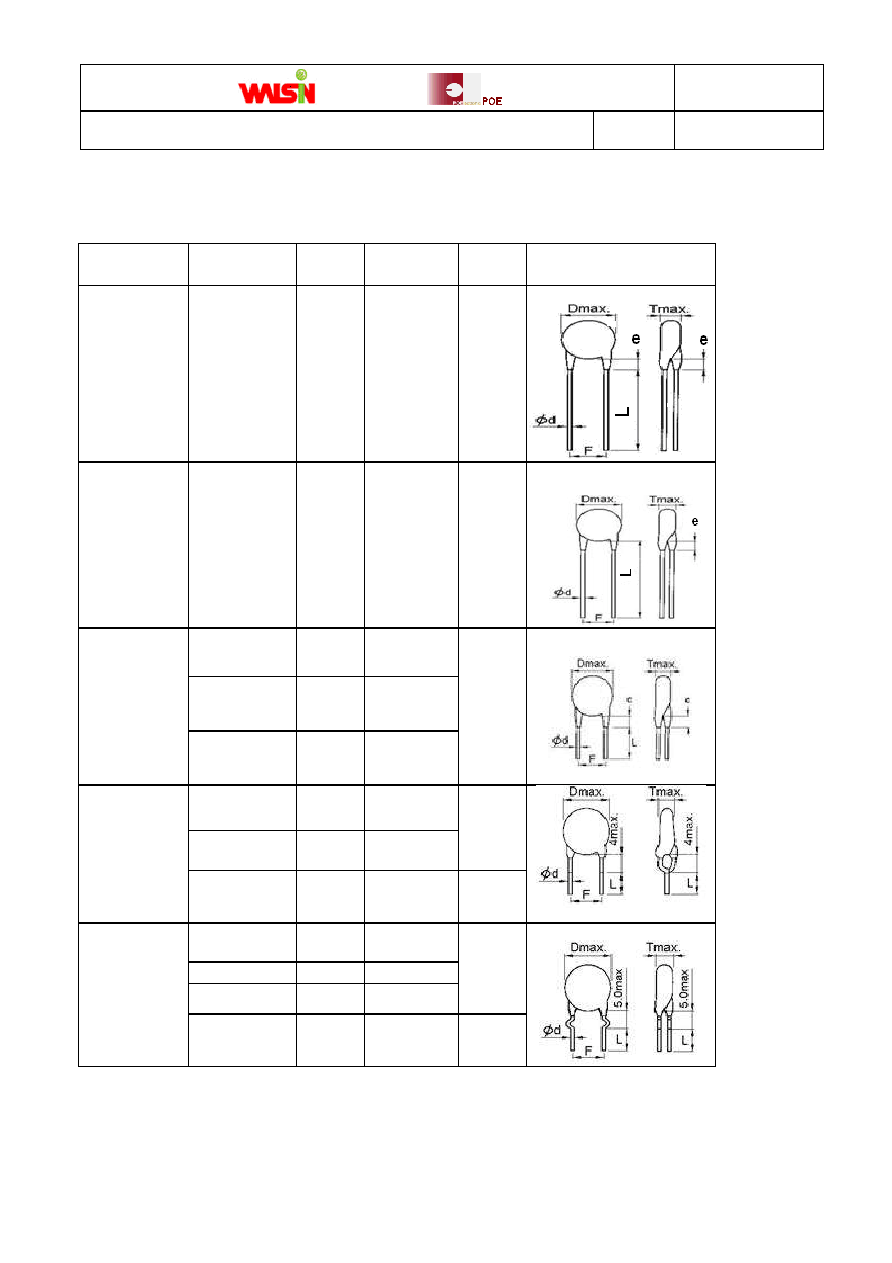

2. Mechanical:

Encapsulation：Epoxy resin, flammability UL94 V-0

Available lead code (unit: mm):

Lead type

SAP P/N

(13-17)digits

Pitch

(F)

Lead

Length (L)

Packing

Lead Configuration

Lead style：L

Type L

Straight long

lead

L20C0

10 ± 1.0

20 min.

Bulk

Lead style：B

Type B

Straight long

lead

BAMD0

10 ± 1.0

Refer to “4.

Taping

format”

Tap.

Ammo

L03B0

10 ± 1.0

3.0 ± 1.0

L4EB0

10 ± 1.0

4.5 ± 1.0

Lead style：L

Type L

Straight short

lead

L05B0

10 ± 1.0

5.0 ± 1.0

Bulk

D3EA0

10 ± 1.0

3.5 ± 0.5

D04A0

10 ± 1.0

4.0 ± 0.5

Bulk

Lead style：D

Type D

Vertical kink

lead

DAMD0

10 ± 1.0

Refer to “4.

Taping

format”

Tap.

Ammo

X3EA0

10 ± 1.0

3.5 ± 0.5

X04A0

10 ± 1.0

4.0 ± 0.5

X05B0

10 ± 1.0

5.0 ± 1.0

Bulk

Lead style：X

Type X

Outside kink lead

XAMD0

10 ± 1.0

Refer to “4.

Taping

format”

Tap.

Ammo

* Lead diameter Φd: 0.55 +/-0.05mm

e (Coating extension on leads): 3.0mmMax for straight lead lead style, not exceed the kink for kink lead.
