225 EDLC-R ENYCAP™

www.vishay.com

Vishay BCcomponents

Revision: 02-Jul-2021

1

Document Number: 28449

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

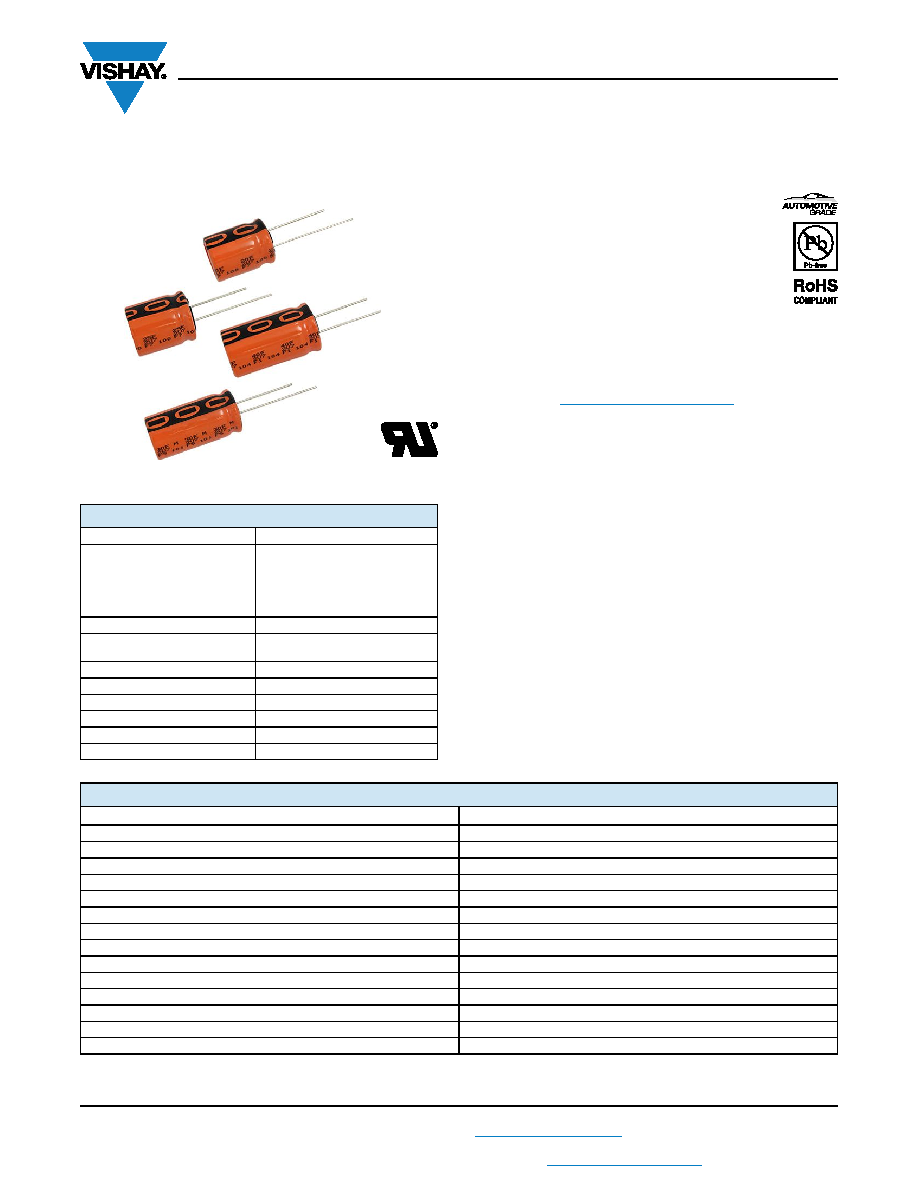

Ruggedized Electrical Double Layer Energy Storage Capacitors

Image is not to scale

FEATURES

• Polarized energy storage capacitor with high

capacity and energy density

• Rated voltage: 2.7 V

• Available in through-hole (radial) version

• Useful life: up to 2000 h at 85 °C

• Ruggedized for high humidity operation

• Rapid charge and discharge

• Maintenance-free, no service necessary

• AEC-Q200 qualified

• UL 810A recognized

• Material categorization: for definitions of compliance

APPLICATIONS

• Power backup

• Burst power support

• Storage device for energy harvesting

• Micro UPS power source

• Energy recovery

MARKING

The capacitors are marked (where possible) with the

following information:

• Rated capacitance (in F)

• Rated voltage (in V)

• Date code, in accordance with IEC 60062

• Code indicating factory of origin

• Logo of manufacturer

• Negative terminal identification

• Series number (225)

PACKAGING

Supplied loose in box, taped ammo, or in ESD trays.

Note

QUICK REFERENCE DATA

DESCRIPTION

VALUE

Nominal case sizes

(Ø D x L in mm)

10 x 20; 10 x 25; 10 x 30;

12.5 x 20; 12.5 x 25; 12.5 x 30;

12.5 x 40; 16 x 20; 18 x 20;

16 x 25, 18 x 25; 16 x 31;

18 x 31, 18 x 35, 18 x 40

5 F to 60 F

(65 °C / 85 °C)

2.7 V / 2.3 V

Category temperature range

-40 °C to +85 °C

Endurance test at 85 °C

Up to 1000 h

Useful life at 85 °C

Up to 2000 h

Useful life at 20 °C

> 10 years

Shelf life at 20 °C

2 years

Cycle life

> 500 000 cycles

5

10 x 20

7

10 x 25

8

12.5 x 20

10

10 x 30

12

12.5 x 25

15

12.5 x 30

20

16 x 20

22

12.5 x 40

25

16 x 25; 18 x 20

30

18 x 25

35

16 x 31

40

50

18 x 35

60

18 x 40
