MODEL: R7C

R7C SPECIFICATIONS

ES-7801 Rev.26 Page 4/46

http://www.m-system.co.jp/

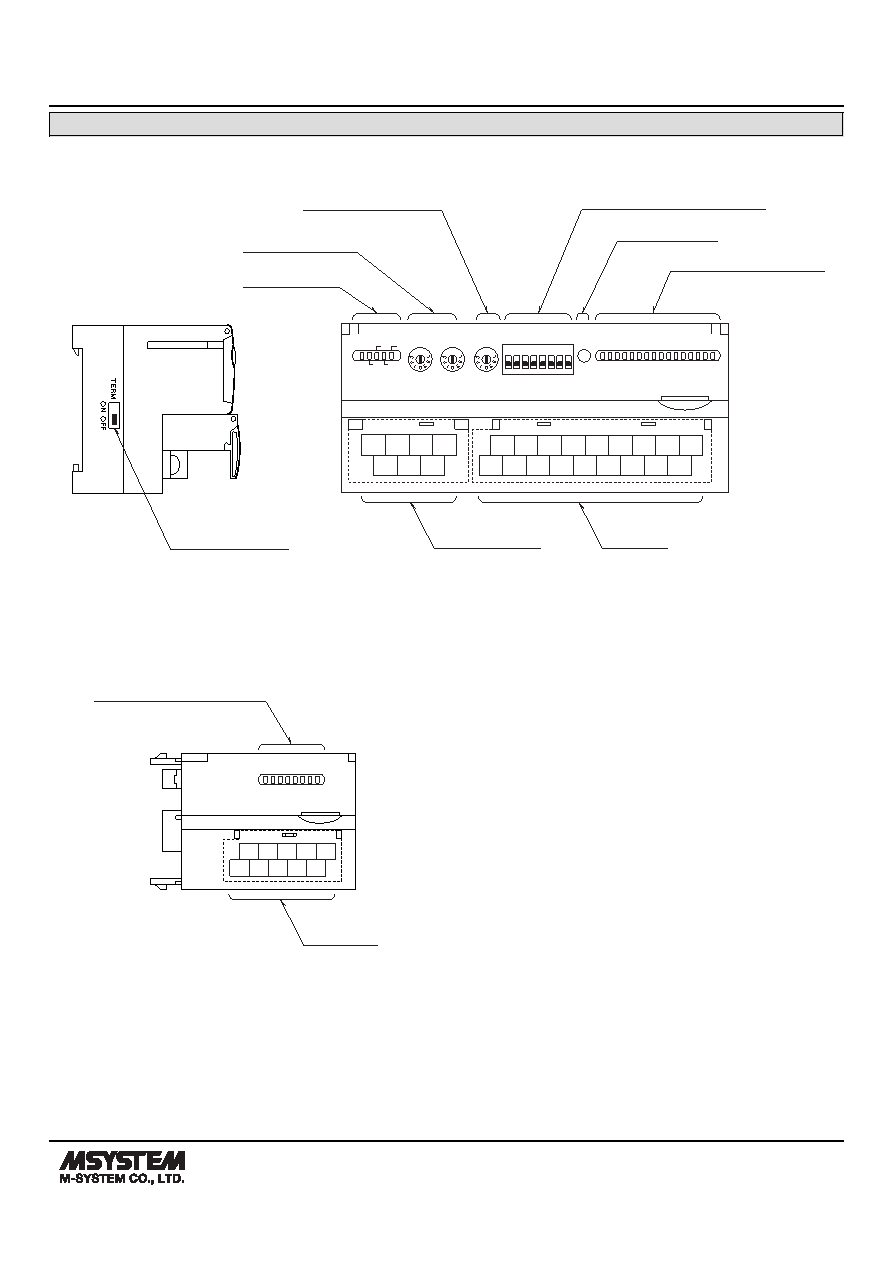

EXTERNAL VIEW

ERR

RUN

PWR

X10

STATION ADD.

B.RATE

CNFG.

1 2 3 4 5 6 7 8

0 1 2 3 4 5 6 7 8 9 A B C D E F

10 11 12 13

15 16 17 18

Baud Rate Setting Rotary SW

Station Address Setting

Rotary SW

Status Indicator LED*

Operating Mode Setting DIP SW (SW1)

PC Configurator Jack

Discrete I/O Status Indicator LED

CC-Link, Power Supply

Terminals

I/O Terminals*

*1. Refer to ‘Status Indicator LED’ section for detailed information.

*2. Not available with discrete I/O modules.

*3. Not available with analog I/O modules.

*4. 10 screw terminals for analog output modules.

*5. Only for R7C-DC8E, RR4, PA8, YV4 and YS4.

Terminating Resistor SW *

■ BASIC MODULE

• SIDE VIEW

• FRONT VIEW

■ EXTENSION MODULE

1 2 3 4 5 6 7

Discrete I/O Status Indicator LED

I/O Terminals

• DISCRETE, 8 POINTS
