MODEL: R8-NEIP1

R8-NEIP1 SPECIFICATIONS

ES-9799 Rev.0 Page 3/5

http://www.m-system.co.jp/

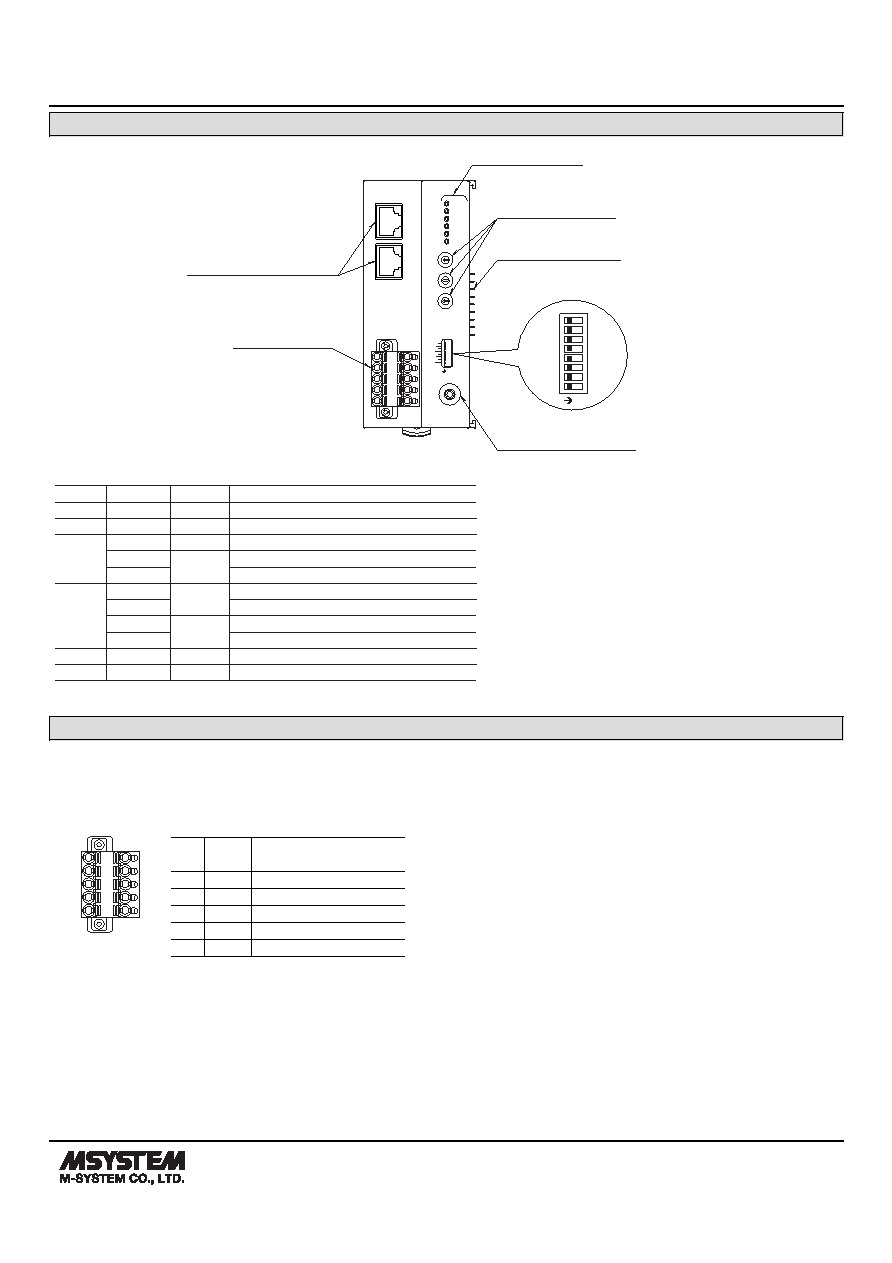

EXTERNAL VIEW

Status Indicator LED

Miniature Jack Connector

for Configuration

EtherNet/IP Communication

RJ-45 Modular Jack

Fixed Address Setting

Rotary SW

Internal Bus Connector

LNK2

LNK1

Power

RUN

MS

NS

LNK1

LNK2

SA

X10

X100

X1

On

8

76

54

32

1

Config

Function Setting

DIP SW

8

7

6

5

4

3

2

1

On

Connector for

Power Supply and

Excitation Supply

■ STATUS INDICATOR LED

ID

STATE

COLOR

TO INDICATE

Power

ON

Green

Power supplied

RUN

ON/Blink

Green

Turns on or blinks depending on the status

MS

ON

Green

Normal operation

ON

Red

Critical failure

Blink

Minor failure

NS

On

Green

Connections are established

Blink

Connections are not established

ON

Red

Critical Link failure

Blink

Minor Link failure

LNK1

ON

Green

Link 1 is established

LNK2

ON

Green

Link 2 is established

CONNECTION DIAGRAMS

■ POWER SUPPLY, EXCITATION SUPPLY CONNECTOR TERMINAL ASSIGNMENT

Printed-circuit board connector (Phoenix Contact)

Unit side connector:

MSTBV2,5/5-GF-5,08AU

Cable side connector: TFKC2,5/5-STF-5,08AU

PIN

ID

FUNCTION

No.

1

24V

Power supply 24V DC

2

0V

Power supply 0V DC

3

+

Excitation supply 24V DC

4

−

Excitation supply 0V DC

5

FE1

Grounding

1

2

3

4

5
