MODEL: R80

R80 SPECIFICATIONS

ES-7021 Rev.0 Page 5/6

http://www.m-system.co.jp/

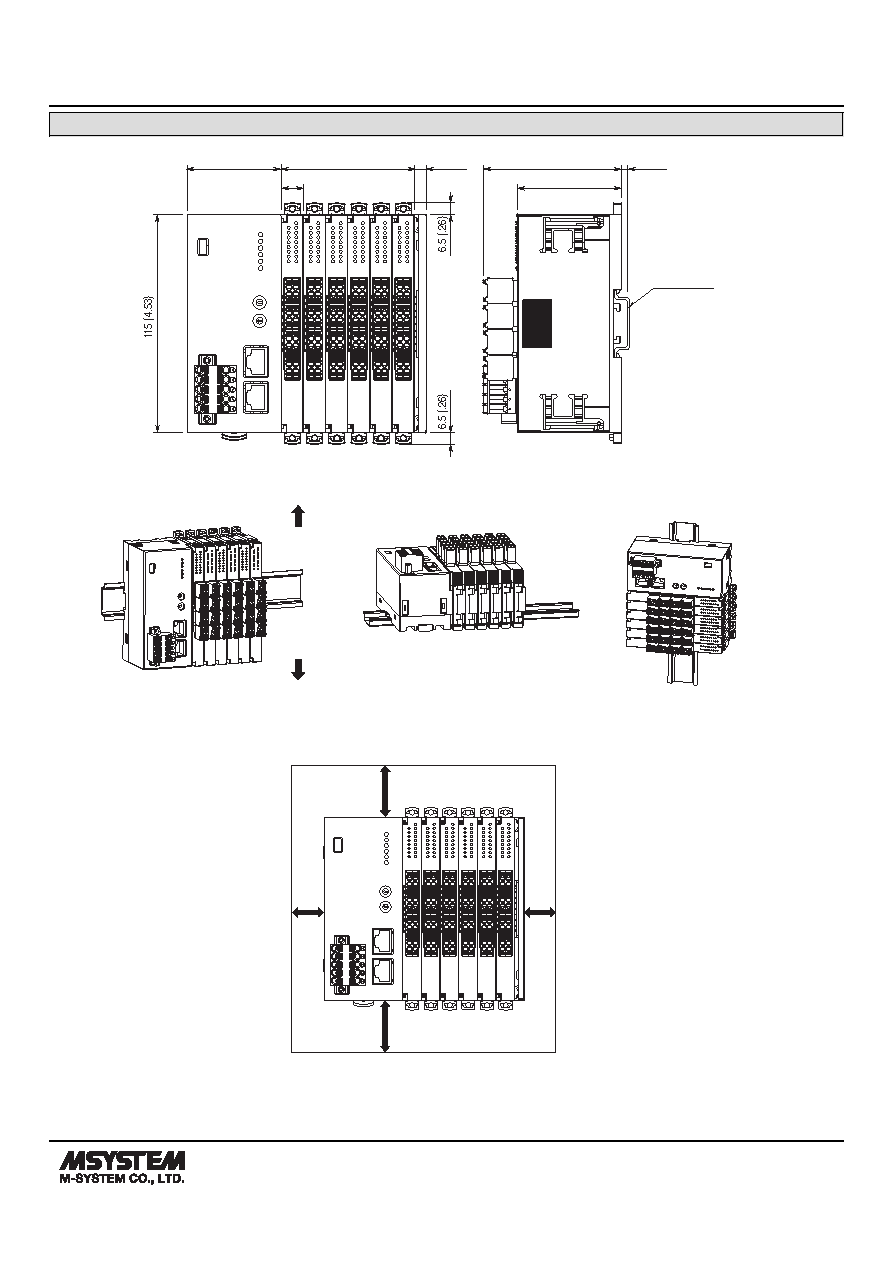

MOUNTING REQUIREMENTS unit: mm (inch)

50 (1.97)

12 × No. of modules

6.5 (.26)

12 (.47)

55 (2.17)

[4 (.16)]

DIN RAIL

(35 mm wide)

73 (2.87)

×

■ MOUNTING DIRECTION

Up

Down

Flat surface mounting

■ MOUNTING TO PANEL

Leave enough space between the modules and the mounting panel.

35 (1.38)

20 (.79)

20 (.79)

35 (1.38)
